HD80
hellosignal
7102139
Coaxial Cable
75 ohm
UL, ETL, CE, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
30KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

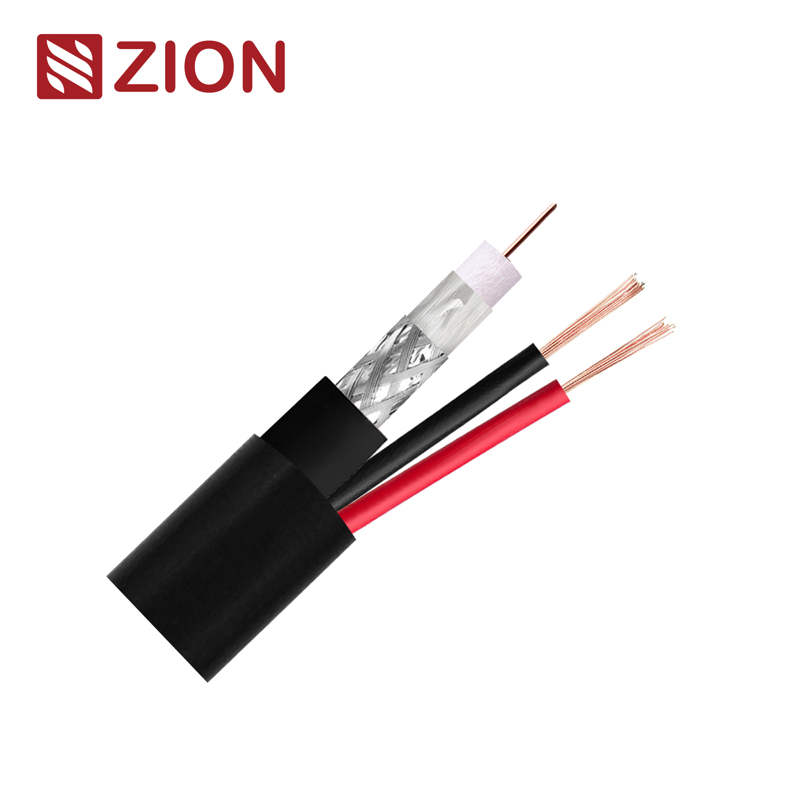

75 Ohm CCTV coaxial Cable NO.7102139 | ||
Construction Parameters: | ||
Inner Conductor | 0.80mm Cu | |
Dielectric | 3.5mm Foamed Polyethylene | |
Shield 1 | AL/Pet/Al | |
Shield 2 | TC 70% | |
Jacket | 5.0mm PVC | |
Power Wire Conductor | 2x(16×0.19mmCU ) | |
Power wire Diameter of insulation | 1.8mmPVC(Red,Black) | |
Jacket | 8.3×6.5mm PVC Common | |
Application | For Use in Longer CCTV Run Lengths | |
Electrical Characteristics: | ||
Inner Conductor Resistance | The Max. at 20℃ shall be < 34.5 Ω/km | |
Capacitance | 52 ±3 pF/m 15.8 ±1 pF/ft | |
Impedance | 75 ± 3 Ω | |
Return loss | 20dB | |
Velocity of Propagation | 0.83 | |
Sparker Test (VAC) | 3 | |
Mechanical and Envrionmental Properties | ||
Cable bend radius | 10 times the cable diameter | |
Operating Temp Range | -20 ℃ to 60℃ | |
Cable diamensions | ||

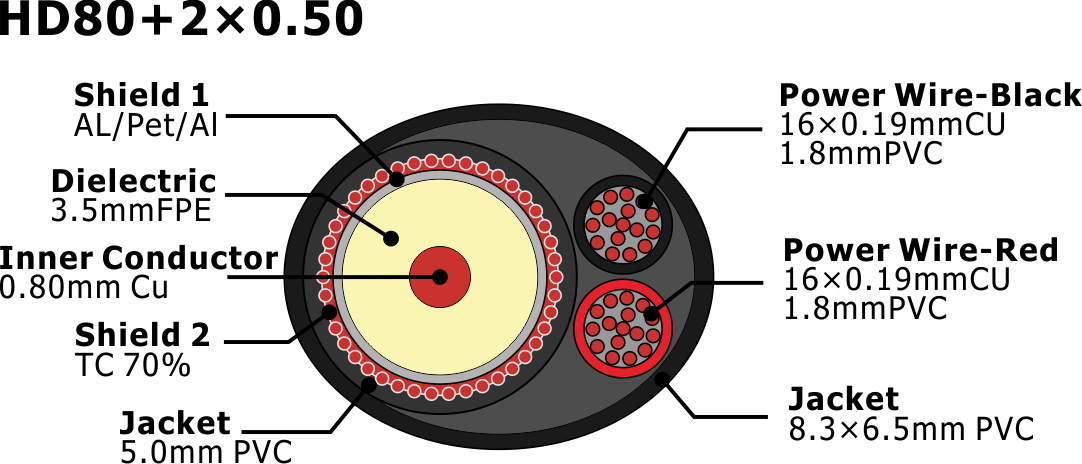

Cross Section | ||
| ||
Attenuation(20℃): | ||
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
1 | 1.40 | |
5 | 1.90 | |
10 | 2.60 | |
50 | 5.80 | |
100 | 8.20 | |
200 | 11.30 | |
400 | 16.90 | |
700 | 22.10 | |
900 | 25.90 | |
1000 | 27.50 | |
Order Informations: | ||
Marking | HELLOSIGNAL HD80+2×0.50 | |
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |
Delivery time | Normally 25 days after received the deposit. | |
Brand | HELLOSIGNAL® OR OEM | |
75 Ohm CCTV coaxial Cable NO.7102139 | ||
Construction Parameters: | ||
Inner Conductor | 0.80mm Cu | |
Dielectric | 3.5mm Foamed Polyethylene | |
Shield 1 | AL/Pet/Al | |
Shield 2 | TC 70% | |
Jacket | 5.0mm PVC | |
Power Wire Conductor | 2x(16×0.19mmCU ) | |
Power wire Diameter of insulation | 1.8mmPVC(Red,Black) | |
Jacket | 8.3×6.5mm PVC Common | |
Application | For Use in Longer CCTV Run Lengths | |
Electrical Characteristics: | ||
Inner Conductor Resistance | The Max. at 20℃ shall be < 34.5 Ω/km | |
Capacitance | 52 ±3 pF/m 15.8 ±1 pF/ft | |
Impedance | 75 ± 3 Ω | |
Return loss | 20dB | |
Velocity of Propagation | 0.83 | |
Sparker Test (VAC) | 3 | |
Mechanical and Envrionmental Properties | ||
Cable bend radius | 10 times the cable diameter | |
Operating Temp Range | -20 ℃ to 60℃ | |
Cable diamensions | ||
Cross Section | ||
| ||
Attenuation(20℃): | ||
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
1 | 1.40 | |
5 | 1.90 | |
10 | 2.60 | |
50 | 5.80 | |
100 | 8.20 | |
200 | 11.30 | |
400 | 16.90 | |
700 | 22.10 | |
900 | 25.90 | |
1000 | 27.50 | |
Order Informations: | ||
Marking | HELLOSIGNAL HD80+2×0.50 | |
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |
Delivery time | Normally 25 days after received the deposit. | |
Brand | HELLOSIGNAL® OR OEM | |
HD80+2×0.50
