NO.7102140 HD80 with 2×0.75

CCTV coaxial cable description
Surveillance is a primary function in safety and security for many environments such as Schools,Hospitals,Hotels,Malls,Airports, Stations, Casinos, Prisons, Businesses and Personals.
The selection of cameras and other electronics equipment is a primary concern,but the link between the electronics should be taken with extreme caution.ZION COMMUNICATION  provides CCTV coaxial cables from short run applications to the most critical long distance applications. Our CCTV coaxial cables offer optimum performance for main distribution use in video surveillance systems where extended cable runs are required.

Our CCTV coaxial cables are available to support most main video surveillance solution brand,such as SONY,HONEYWELL,ARIX,HIKVISION,DAHUA,HELLOSIGNAL and more.All CCTV Coaxial cables from ZION COMMUNICATION comply with International standards within the industry. And ZION COMMUNICATION CCTV coaxial cable are available as UL and with a CM,CMR or CMP rating, and CPR certificates.

Why chose us as your partner?
  ● Price: You can get ultimate reasonable factory price of the CCTV coaxial cable itself from us!
  ● Service: You will enjoy best service from our export team on price for import and export, shipping time, documents and custom policy, which will save cost ultimately  and create biggest value for you.
  ● Quality Guarantee:You will received 100% quality pass testing before sending to our customers; also we are responsible for all products during it’s normal lifetime.

HD80+2×0.75
75 Ohm CCTV coaxial Cable

NO.7102140

Similar Type:

  Coaxial Cable

  Power Cores

 Overall OuterSheath

Catalog
No.

Cond.Type
&Nom.D.C.R

Dielectric

Shielding&
%Coverage

 Jacket

Power Wire Cond.Type

Power wire
OD of
insulation

Jacket

Nom. Capacitance

HD80+2×0.50
NO.7102139

0.80mm (SOL)Cu

Foam
FEP

1.AL/Pet/Al
2.TC-Braid 70%

5.0mm PVC

2x
(16×0.19mm
CU)

1.8mmPVC
(Red,Black)

8.3×6.5mm
PVC
Common

52 ±3 pF/m

HD80+2×1.00
NO.7102141

0.80mm (SOL)Cu

Foam FEP

1.AL/Pet/Al
2.TC-Braid 70%

5.0mm PVC

2x
(32×0.19mm
CU)

2.2mmPVC
(Red,Black)

8.7×6.5mm
PVC
Common

52 ±3 pF/m

Construction Parameters:

Inner Conductor

0.80mm Cu

Dielectric

3.5mm Foamed Polyethylene

Shield 1

AL/Pet/Al

Shield 2

TC 70%

Jacket

5.0mm PVC

Power Wire Conductor

2x(24×0.19mmCU )

Power wire Diameter of insulation

2.0mmPVC(Red,Black)

Jacket

8.5×6.55mm PVC Common

Application

For Use in Longer CCTV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

The Max. at 20℃ shall be <   34.5  Ω/km

Capacitance

52 ±3 pF/m       15.8 ±1 pF/ft

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 20dB

Velocity of Propagation

0.82

Sparker Test (VAC)

3

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

8.5×6.55mm

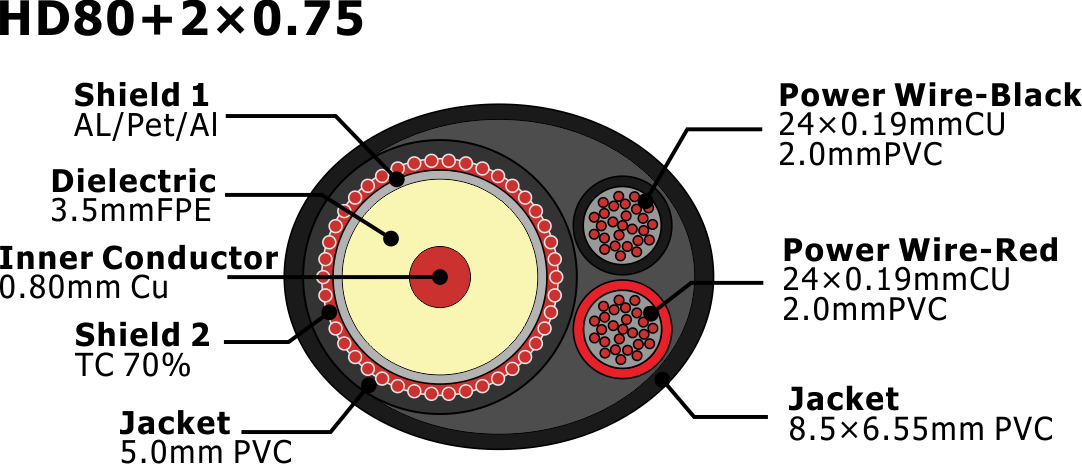

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

1

1.40

5

1.90

10

2.60

50

5.80

100

8.20

200

11.30

400

16.90

700

22.10

900

25.90

1000

27.50

The Factory

We have a study and design label,a professional team of engineers and skilled workers, also with the advanced machines and modern factories which can provide our customers with outstanding quality, service, and pricing.
Monthly Production Capacity:
Wire (Copper/copper clad aluminium) drawing: 500 Metric Tons+
Coaxial Cable: 14,000KM+
Telephone Cable: 10,000KM+
Data & Computer Cable: 12,200KM+
Security & Fire Alarm Cable: 10,000KM+
Other Cable Types: 10,000KM+
Cable Accessories: 180,000pcs+
Telecom Accessories: 180,000pcs+

Packing

We have abundant types of packing for you,such as reel, plastic spool, wooden spool,pull box, colorful carton, pallet and many other more. Also our design team will supply you best solution of the packing for size ,firm and artistic outlooking.

Order Informations:

Marking

HELLOSIGNAL HD80+2×0.75
CCTV COAXIAL CABLE 7102140 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
