NO.7110401 PH30 2×1.0mm² Fire Alarm Cables

  • EN50200 Fire alarm cable

  • hellosignal

  • 7110401

  • Fire Alarm Cable

  • UL, ETL, CE, CPR, RoHS, LPCB

  • 100m,500m,500ft,1000ft

  • roll, wooden spool, carton, pallet

  • 10KM

  • Normally 15 working days

  • NINGBO, SHANGHAI

  • T/T, L/C at sight, D/P at sight

Availability:

Specification

Fire Alarm Cables

Fire Alarm Cable Description
ZION COMMUNICATION supplies a wide range of fire alarm cables which are for use with fire monitoring,
fire detection, power-limited fire alarm systems, smoke detectors, signaling, audio circuits, control circuits,
fire protective circuits and security systems.
All HANGZHOU ZION COMMUNICATION CO.,LTD fire alarm cables comply with International standards within
the industry. If you do not find the product you need in then we offer the option of a special custom design cable. Here you can choose between different constructions, jacket colours or other materials etc.

Key Features
These products are solid conductor or multi conductor cables that come in a shielded and unshielded version.
The variations are PVC, Plenum, shielded and unshielded which automatically puts this cable in at least
4 types of different applications. Standard ways of asking for it would be fire alarm cable, shielded fire alarm cable, FPLR cable

and FPLP cable which stated for Riser and Plenum.

Applications

★ Hotels ★ Theatres and cinemas ★ Museums ★ Hospitals ★ Shopping centres ★ Skyscrapers ★ Offices ★ Schools ★ Airports

★ Undergrounds and tunnels ★ Railways stations ★ Computer centres ★ Alarm systems ★ Traffic control systems ★ Fire fighting systems

Why chose us as your partner?
  ● Price: You can get ultimate reasonable factory price of the fire alarm cable itself from us!
  ● Service: You will enjoy best service from our export team on price for import and export, shipping time, documents and custom policy,   which will save cost ultimately  and create biggest value for you.
  ● Quality : Guarantee:You will received 100% quality pass testing before sending to our customers;   also we are responsible for all products during it’s normal lifetime.

zion Certificate

PH30 2×1.0mm²

Fire Alarm Cables

NO.7110401

Cable construction

Conductor:

1.0mm(sqmm) Plain annealed copper wire,
class 1,2 or 5 according to EN60228.

Insulation:

Fire resistant silicone rubber
BS 6387 CWZ,EN 50200 PH30,IEC 60331

Dia.over Dielectric:2x(0.087"(2.2 mm))

Insulation Color:

Blue / Brown

Shield 1:

PET Foil

Drain Wire:

0.80 mm Solid tinned copper

Shield 2:

Aluminum PET (100% Coverage 20% overlapping)

Jacket:

FR-LSZH (Red or White)

Dia.over Jacket: 0.240''±0.006''(6.10±0.15mm)

HFFR EN 50290-2,BS7655 LTS1/LTS3

Print Legend:

HELLOSIGNAL Fire Alarm Cable PH30 1.0mm² 2 Cores Class N
BC BS 50200:2006 NO.7110401 ××××M/FT

Electrical Properties

Min.Bend Radius:

8×Diameter

Min.Insulation resistance:

200 MΩ/km

Max.Working Temperature:

.-30~+90

Test voitage:

2000 V

Max.Operating voitage:

300 V / 600 V

Max.resistance of Cond:

Class1,218.1Ω/km

Class519.5Ω/km

Current Carrying Capacity:



Cross Section


The Factory

The Factory of Fire Alarm Cable

We have a study and design label,a professional team of engineers and skilled workers, also with the advanced machines and modern factories which can provide our customers with outstanding quality, service, and pricing.
Monthly Production Capacity:
Wire (Copper/copper clad aluminium) drawing: 500 Metric Tons+
Coaxial Cable: 14,000KM+
Telephone Cable: 10,000KM+
Data & Computer Cable: 12,200KM+
Security & Fire Alarm Cable: 10,000KM+
Other Cable Types: 10,000KM+
Cable Accessories: 180,000pcs+
Telecom Accessories: 180,000pcs+

Packing

Fire Alarm Cable's packing

We have abundant types of packing for you,such as reel, plastic spool, wooden spool,pull box, colorful carton, pallet and many other more. Also our design team will supply you best solution of the packing for size ,firm and artistic outlooking.

Order Informations

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet...

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL®OR OEM

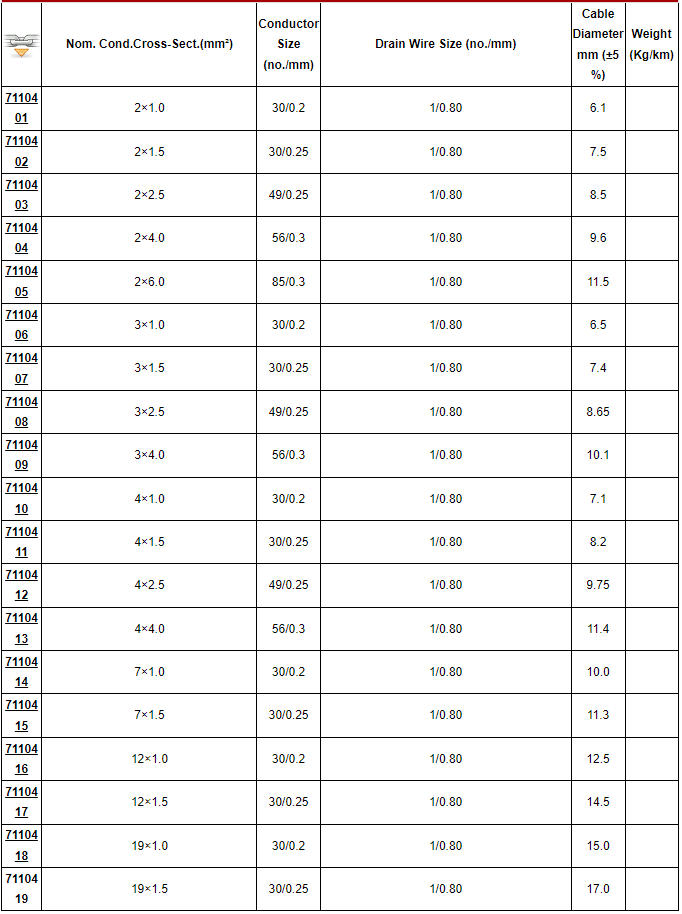

Similar Type

insert-link

Nom. Cond.Cross-Sect.(mm²)

Conductor Size (no./mm)

Drain Wire Size (no./mm)

Cable Diameter
mm (±5 %)

Weight
(Kg/km)

7110401

2×1.0

30/0.2

1/0.80

6.1


7110402

2×1.5

30/0.25

1/0.80

7.5


7110403

2×2.5

49/0.25

1/0.80

8.5


7110404

2×4.0

56/0.3

1/0.80

9.6


7110405

2×6.0

85/0.3

1/0.80

11.5


7110406

3×1.0

30/0.2

1/0.80

6.5


7110407

3×1.5

30/0.25

1/0.80

7.4


7110408

3×2.5

49/0.25

1/0.80

8.65


7110409

3×4.0

56/0.3

1/0.80

10.1


7110410

4×1.0

30/0.2

1/0.80

7.1


7110411

4×1.5

30/0.25

1/0.80

8.2


7110412

4×2.5

49/0.25

1/0.80

9.75


7110413

4×4.0

56/0.3

1/0.80

11.4


7110414

7×1.0

30/0.2

1/0.80

10.0


7110415

7×1.5

30/0.25

1/0.80

11.3


7110416

12×1.0

30/0.2

1/0.80

12.5


7110417

12×1.5

30/0.25

1/0.80

14.5


7110418

19×1.0

30/0.2

1/0.80

15.0


7110419

19×1.5

30/0.25

1/0.80

17.0
