EN50200 Fire alarm cable
hellosignal
7110410
Fire Alarm Cable
UL, ETL, CE, CPR, RoHS, LPCB
100m,500m,500ft,1000ft
roll, wooden spool, carton, pallet
10KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
ZION COMMUNICATION supplies a wide range of fire alarm cables designed for various applications in fire monitoring, fire detection, power-limited fire alarm systems, smoke detectors, signaling, audio circuits, control circuits, fire protective circuits, and security systems.
All fire alarm cables from HANGZHOU ZION COMMUNICATION CO., LTD comply with international standards within the industry. If you do not find the specific product you need, we offer the option of a special custom-designed cable. This allows you to choose between different constructions, jacket colors, or other materials.
Conductor Types: Solid conductor or multi-conductor cables.
Shielding Options: Available in both shielded and unshielded versions.
Variations:
PVC: Polyvinyl chloride jacket.
Plenum: Suitable for plenum spaces.
Shielded: Protects against electromagnetic interference.
Unshielded: Cost-effective for environments with minimal interference.
★Hotels★Theatres and Cinemas★Museums,Hospitals★Shopping Centres★Skyscrapers★Offices★Schools★Airports★Undergrounds and Tunnels★Railway Stations★Computer Centres★Alarm Systems★Traffic Control Systems★Fire Fighting Systems
Price: You can get the ultimate reasonable factory price for fire alarm cables from us.
Expert Export Team: Enjoy the best service from our expert team, including:
Price for import and export
Shipping time
Document preparation
Custom policy assistance
Cost Savings: Our comprehensive service ultimately saves you costs and creates considerable value for your business.
100% Quality Testing: All products undergo 100% quality pass testing before being sent to customers.
Lifetime Responsibility: We are responsible for all products during their normal lifetime, ensuring reliability and peace of mind.

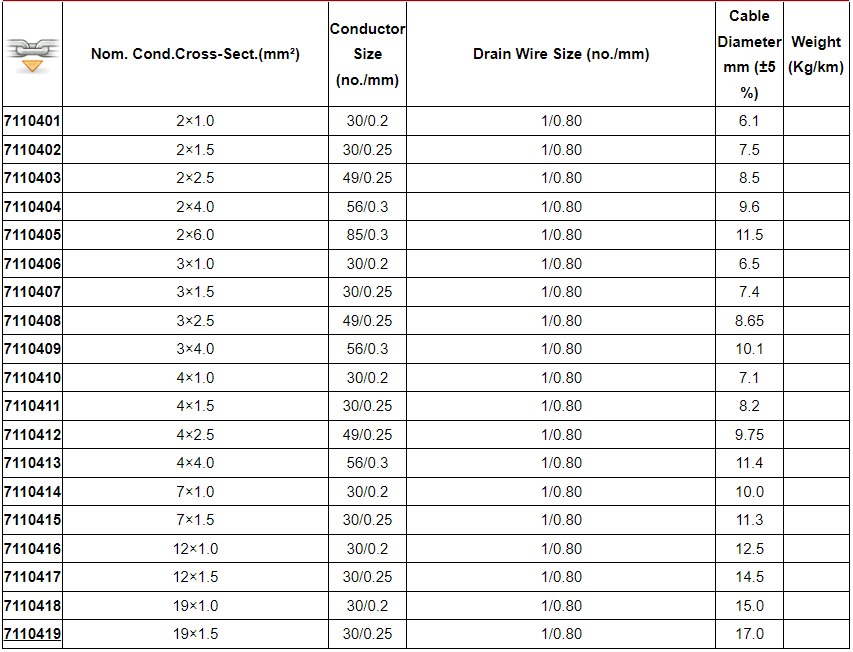

PH30 4×1.0mm²
Fire Alarm Cables
NO.7110410
Conductor: 1.0 mm² Plain annealed copper wire, class 1, 2, or 5 according to EN60228.
Insulation:
Material: Fire-resistant silicone rubber (BS 6387 CWZ, EN 50200 PH30, IEC 60331)
Diameter over Dielectric: 4 × (0.087" (2.2 mm))
Insulation Color: Brown (Brn), Black (Blk), Grey (Gry), Blue (Blu)
Separator: PET Foil
Drain Wire: 0.80 mm Solid tinned copper
Shield: Aluminum PET (100% coverage, 20% overlapping)
Jacket:
Material: FR-LSZH (Red or White)
Diameter over Jacket: 0.279" ± 0.006" (7.10 ± 0.15 mm)
Standards: HFFR EN 50290-2, BS 7655 LTS1/LTS3
Print Legend:
HELLOSIGNAL Fire Alarm Cable PH30 1.0mm² 4 Cores Class N
BC BS 50200:2006 NO.7110410 ××××M/FT
Minimum Bend Radius: 8 × Diameter
Minimum Insulation Resistance: 200 MΩ/km
Maximum Working Temperature: -30°C to +90°C
Test Voltage: 2000 V
Maximum Operating Voltage: 300 V / 600 V
Maximum Resistance of Conductor:
Class 1, 2: 18.1 Ω/km
Class 5: 19.5 Ω/km
We have a study and design label, a professional team of engineers and skilled workers, advanced machines, and modern factories that can provide our customers with outstanding quality, service, and pricing.
Monthly Production Capacity:
Wire (Copper/copper clad aluminum) drawing: 500 Metric Tons+
Coaxial Cable: 14,000KM+
Telephone Cable: 10,000KM+
Data & Computer Cable: 12,200KM+
Security & Fire Alarm Cable: 10,000KM+
Other Cable Types: 10,000KM+
Cable Accessories: 180,000pcs+
Telecom Accessories: 180,000pcs+
We have abundant types of packing for you, such as reels, plastic spools, wooden spool, pull boxes, colorful cartons, pallets, and many others. Also, our design team will supply you best solution of the packing for size, firm, and artistic appearance.
Package: Inquired Length on Reel, Pull Box, Plastic Spool,wooden Spool,pallet...
Delivery Time: Normally 25 days after receiving the deposit.
Brand: HELLOSIGNAL® or OEM
ZION COMMUNICATION supplies a wide range of fire alarm cables designed for various applications in fire monitoring, fire detection, power-limited fire alarm systems, smoke detectors, signaling, audio circuits, control circuits, fire protective circuits, and security systems.
All fire alarm cables from HANGZHOU ZION COMMUNICATION CO., LTD comply with international standards within the industry. If you do not find the specific product you need, we offer the option of a special custom-designed cable. This allows you to choose between different constructions, jacket colors, or other materials.
Conductor Types: Solid conductor or multi-conductor cables.
Shielding Options: Available in both shielded and unshielded versions.
Variations:
PVC: Polyvinyl chloride jacket.
Plenum: Suitable for plenum spaces.
Shielded: Protects against electromagnetic interference.
Unshielded: Cost-effective for environments with minimal interference.
★Hotels★Theatres and Cinemas★Museums,Hospitals★Shopping Centres★Skyscrapers★Offices★Schools★Airports★Undergrounds and Tunnels★Railway Stations★Computer Centres★Alarm Systems★Traffic Control Systems★Fire Fighting Systems
Price: You can get the ultimate reasonable factory price for fire alarm cables from us.
Expert Export Team: Enjoy the best service from our expert team, including:
Price for import and export
Shipping time
Document preparation
Custom policy assistance
Cost Savings: Our comprehensive service ultimately saves you costs and creates considerable value for your business.
100% Quality Testing: All products undergo 100% quality pass testing before being sent to customers.
Lifetime Responsibility: We are responsible for all products during their normal lifetime, ensuring reliability and peace of mind.
PH30 4×1.0mm²
Fire Alarm Cables
NO.7110410
Conductor: 1.0 mm² Plain annealed copper wire, class 1, 2, or 5 according to EN60228.
Insulation:
Material: Fire-resistant silicone rubber (BS 6387 CWZ, EN 50200 PH30, IEC 60331)
Diameter over Dielectric: 4 × (0.087" (2.2 mm))
Insulation Color: Brown (Brn), Black (Blk), Grey (Gry), Blue (Blu)
Separator: PET Foil
Drain Wire: 0.80 mm Solid tinned copper
Shield: Aluminum PET (100% coverage, 20% overlapping)
Jacket:
Material: FR-LSZH (Red or White)
Diameter over Jacket: 0.279" ± 0.006" (7.10 ± 0.15 mm)
Standards: HFFR EN 50290-2, BS 7655 LTS1/LTS3
Print Legend:
HELLOSIGNAL Fire Alarm Cable PH30 1.0mm² 4 Cores Class N
BC BS 50200:2006 NO.7110410 ××××M/FT
Minimum Bend Radius: 8 × Diameter
Minimum Insulation Resistance: 200 MΩ/km
Maximum Working Temperature: -30°C to +90°C
Test Voltage: 2000 V
Maximum Operating Voltage: 300 V / 600 V
Maximum Resistance of Conductor:
Class 1, 2: 18.1 Ω/km
Class 5: 19.5 Ω/km
We have a study and design label, a professional team of engineers and skilled workers, advanced machines, and modern factories that can provide our customers with outstanding quality, service, and pricing.
Monthly Production Capacity:
Wire (Copper/copper clad aluminum) drawing: 500 Metric Tons+
Coaxial Cable: 14,000KM+
Telephone Cable: 10,000KM+
Data & Computer Cable: 12,200KM+
Security & Fire Alarm Cable: 10,000KM+
Other Cable Types: 10,000KM+
Cable Accessories: 180,000pcs+
Telecom Accessories: 180,000pcs+
We have abundant types of packing for you, such as reels, plastic spools, wooden spool, pull boxes, colorful cartons, pallets, and many others. Also, our design team will supply you best solution of the packing for size, firm, and artistic appearance.
Package: Inquired Length on Reel, Pull Box, Plastic Spool,wooden Spool,pallet...
Delivery Time: Normally 25 days after receiving the deposit.
Brand: HELLOSIGNAL® or OEM
