NO.7111701 LUT Green Cable Plenum

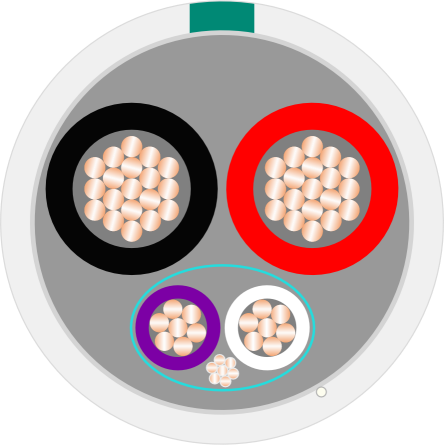

Key Information & Construction

SKU:

7111701

Assembly:

22/2C SH+18/2C (Green Stripe)

UL Certificate Number:

E541136 - CMP

E541137 - CL2P & CL3P

Element 1 (Data)

22AWG 2Cores Shielded

Conductor Material:

Stranded  Bare Copper

Conductor Size:

22AWG/ 7×0.010" / 7×0.254mm

Dielectric Material:

Foam FEP

Dielectric Size:

0.052±0.004''nom.(1.32±0.10mm)

Dielectric Colors:

1.Violet  2.White

Drain Wire:

24AWG/7×0.2mm Stranded Tinned Copper

Shield:

Aluminum Malar Foil-100% Coverage

Element 2 (Power/Control)

18AWG 2Cores Unshielded

Conductor Material:

Stranded  Bare Copper

Conductor Size:

18AWG/16×0.010"/16×0.254mm

Dielectric Material:

Plenum PVC-Low Smoke

Dielectric Size:

0.061±0.004''nom.(1.56±0.10mm)

Dielectric Colors:

1.Red  2.Black

Rip Cord

Yes

Out Jacket:

Material: Plenum PVC - Low Smoke

Color: White(or Light Blue)/Green Stripe

Wall Thickness: 0.0170". Nom(0.43mm)

OD:0.213"±0.006“ (5.41±0.15mm)

Electrical & Physical Characteristics

DC Resistance

22AWG:14.8Ω/KFT

18AWG:6.92Ω/KFT

Capacitance

22AWG:22.3 pF/FT

Impedance

22AWG: 67Ω

Rated Voltage(V RMS)

300V

Operating Temperature

- 20 to 75 ℃ (- 4 to 167℉）

Order Informations

Marking

ZION  LUT GREEN 22AWG/2C SH+18AWG/2C   E541137 CL3P(UL)
OR E541136 CMP(UL)C(UL) MM/DD/YY RoHS COMPLIANT ***FT
