Plenum
hellosignal
7111703
Lutron Cables Plenum
UL, ETL, CE,CPR, RoHS
100m,500m,500ft,1000ft
roll, wooden spool, carton, pallet
10KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
Availability: | |
---|---|

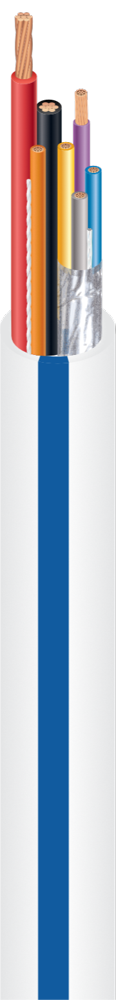

LUT Blue Cable Plenum | ||

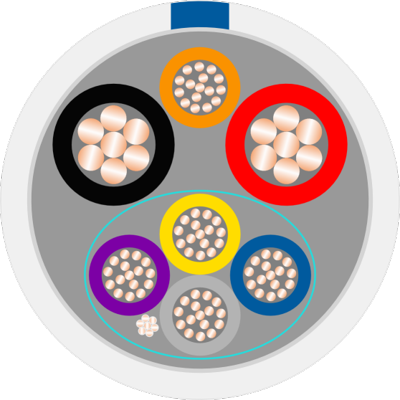

Key Information & Construction | ||
SKU: | 7111703 |
|
Assembly: | 22/2C SH+12/2C+18G (Blue Stripe) | |
UL Certificate Number: | E541136 - CMP | |
E541137 - CL2P & CL3P | ||
Element 1 (Data) | 22AWG 2Cores Shielded | |
Conductor Material: | Stranded Bare Copper | |
Conductor Size: | 22AWG/ 7×0.010" / 7×0.254mm | |
Dielectric Material: | Foam FEP | |
Dielectric Size: | 0.052±0.004''nom.(1.32±0.10mm) | |
Dielectric Colors: | 1.Violet 2.White | |
Drain Wire: | 24AWG/7×0.2mm Stranded Tinned Copper | |
Shield: | Aluminum Malar Foil-100% Coverage | |
Element 2 (Power/Control) | 12AWG 2Cores Unshielded | |
Conductor Material: | Stranded Bare Copper | |
Conductor Size: | 12AWG/19×0.0179"/19×0.455mm | |
Dielectric Material: | Plenum PVC-Low Smoke | |
Dielectric Size: | 0.095±0.004''nom.(2.88±0.10mm) | |
Dielectric Colors: | 1.Red 2.Black | |
Element 3 (Control) | 18AWG 1Core Unshielded | |
Conductor Material: | Stranded Bare Copper | |
Conductor Size: | 18AWG/16×0.001"/16×0.254mm | |
Dielectric Material: | Plenum PVC-Low Smoke | |
Dielectric Size: | 0.061±0.004''nom.(1.56±0.10mm) |
|
Dielectric Color: | Orange | |
Rip Cord | Yes | |
Out Jacket: | Material: Plenum PVC - Low Smoke | |
Color: White/Blue Stripe | ||
Wall Thickness: 0.0170". Nom(0.43mm) | ||
OD:0.242"±0.006“ (6.15±0.15mm) | ||
Electrical & Physical Characteristics | ||
DC Resistance | 22AWG:14.8Ω/KFT | 18AWG:6.92Ω/KFT |
Capacitance | 22AWG:22.3 pF/FT | |
Impedance | 22AWG: 67Ω | |
Rated Voltage(V RMS) | 300V | |
Operating Temperature | - 20 to 75 ℃ (- 4 to 167℉) | |
Marking | ZION LUT Blue 22AWG/2C SH+12AWG/2C+18G E541137 CL3P(UL) | |
