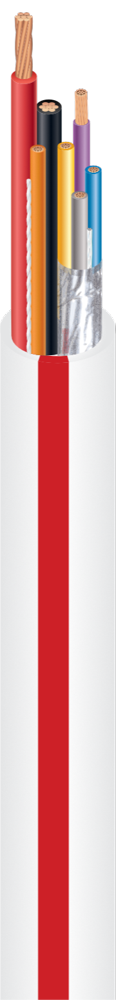

NO.7111704 LUT Red Cable Plenum

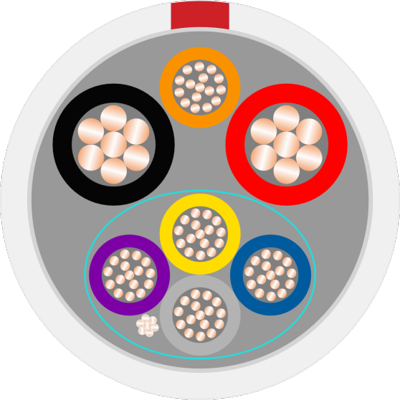

Key Information & Construction

SKU:

7111704

Assembly:

18/4C SH+16/2C+18G (Red Stripe)

UL Certificate Number:

E541136 - CMP

E541137 - CL2P & CL3P

Element 1 (Data)

18AWG 4Cores Shielded

Conductor Material:

Stranded  Bare Copper

Conductor Size:

18AWG/16×0.001"/16×0.254mm

Dielectric Material:

Foam FEP

Dielectric Size:

0.075±0.004''nom.(1.90±0.10mm)

Dielectric Colors:

1.Violet  2.Yellow 3.Gray 4.Blue

Drain Wire:

24AWG/7×0.2mm Stranded Tinned Copper

Shield:

Aluminum Malar Foil-100% Coverage

Element 2 (Power/Control)

16AWG 2Cores Unshielded

Conductor Material:

Stranded  Bare Copper

Conductor Size:

16AWG/7×0.201"/7×0.511mm

Dielectric Material:

Plenum PVC-Low Smoke

Dielectric Size:

0.087±0.004''nom.(2.20±0.10mm)

Dielectric Colors:

1.Red  2.Black

Element 3 (Control)

18AWG 1Core Unshielded

Conductor Material:

Stranded  Bare Copper

Conductor Size:

18AWG/16×0.001"/16×0.254mm

Dielectric Material:

Plenum PVC-Low Smoke

Dielectric Size:

0.061±0.004''nom.(1.56±0.10mm)

Dielectric Color:

Orange/Green Stripe

Rip Cord

Yes

Out Jacket:

Material: Plenum PVC - Low Smoke

Color: White(Or Light Blue)/Red stripe

Wall Thickness: 0.030". Nom(0.75mm)

OD:0.341"±0.006“ (8.65±0.15mm)

Electrical & Physical Characteristics

DC Resistance

18AWG: 6.92Ω/KFT

16AWG:4.35Ω/KFT

Capacitance

18AWG:39.5pF/FT

Impedance

18AWG: 44 Ω

Rated Voltage(V RMS)

300V

Operating Temperature

- 20 to 75 ℃ (- 4 to 167℉）

Marking

ZION  LUT Red 18AWG/4C SH+16AWG/2C+18G  E541137 CL3P(UL)
or E541136 CMP(UL)C(UL) MM/DD/YY RoHS COMPLIANT ***FT
