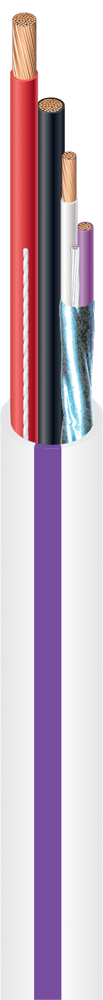

NO.7111751 LUT QSHS Cable Plenum

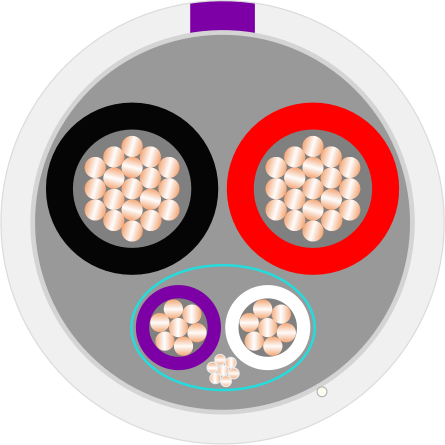

Key Information & Construction

SKU:

7111751

Assembly:

22/2C SH+16/2C (Purple Stripe)

UL Certificate Number:

E541136 - CMP

E541137 - CL2P & CL3P

Element 1 (Data)

22AWG 2Cores Shielded

Conductor Material:

Stranded  Bare Copper

Conductor Size:

22AWG/ 7×0.010" / 7×0.254mm

Dielectric Material:

Foam FEP

Dielectric Size:

0.052±0.004''nom.(1.32±0.10mm)

Dielectric Colors:

1.Violet  2.White

Drain Wire:

24AWG/7×0.2mm Stranded Tinned Copper

Shield:

Aluminum Malar Foil-100% Coverage

Element 2 (Power/Control)

16AWG 2Cores Unshielded

Conductor Material:

Stranded  Bare Copper

Conductor Size:

16AWG/19×0.0113"/19×0.287mm

Dielectric Material:

Plenum PVC-Low Smoke

Dielectric Size:

0.087±0.004''nom.(2.20±0.10mm)

Dielectric Colors:

1.Red  2.Black

Rip Cord

Yes

Out Jacket:

Material: Plenum PVC - Low Smoke

Color: White(or Light Blue)/Purple Stripe

Wall Thickness: 0.0170". Nom(0.43mm)

OD:0.239"±0.006“ (6.08±0.15mm)

Electrical & Physical Characteristics

DC Resistance

22AWG:14.8Ω/KFT

16AWG:4.35Ω/KFT

Capacitance

22AWG:22.3 pF/FT

Impedance

22AWG: 67Ω

Rated Voltage(V RMS)

300V

Operating Temperature

- 20 to 75 ℃ (- 4 to 167℉）

Order Informations

Marking

ZION  LUT QSHS 22AWG/2C SH+12AWG/2C   E541137 CL3P(UL)
OR E541136 CMP(UL)C(UL) MM/DD/YY RoHS COMPLIANT ***FT
