NO.7112104 U/UTP CAT 5E 4PR 24AWG PVC CMR

Construction

Conductor:

24 AWG Solid Bare Copper

Pairs:

4 Pairs

Insulation:

0.91 mm HDPE

Insulation Colors:

Blue-White/Blue,Orange-White/Orange

Green-White/Green,Brown-White/Brown

Rip Cord:

Cotton

Out Jacket:

5.1±0.2 mm  PVC CMR

Electrical Characteristics

Impedance

1 - 100MHz 100±15 Ohms

Insulation Resistance

＞5000MΩ*KM

Dielectric strength

DC  2500V  2S

Max.Conductor DC
Resistance 20℃

9.5 Ohms/100m

Res. unbalance (%)

Max. 2.5

Pair to Ground
Capacitance Unbalance

330 pF/100m

Transfer Impendance

Max 10 mOhms/m  @100Mhz

Installation temp.

 -30 - 50℃

Operation temp.

 -20 to 75 ℃ （-4 to 167℉）

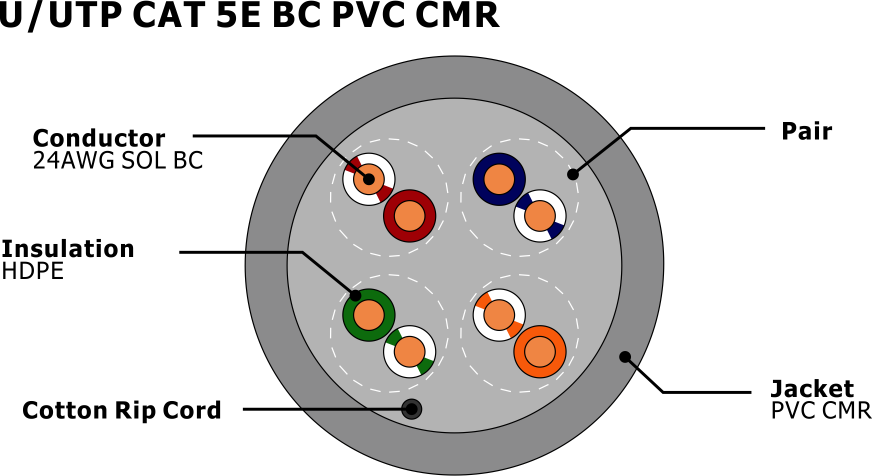

Cross Section

 Application

•  Meets or exceeds requirements of ANSI/TIA-568-C.2 Category 5e and

   ISO 11801 2nd Edition Class D channel standards.

•  Meets or exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156-5

   Category 5e component standards.

•  Third party tested to Category 5e channel compliance.

•  Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.

•  Descending length cable markings enable easy identification of remaining cable

   which reduces installation time and cable scrap.

•  Color Availability: Additional cable colors available.

Performance Characteristics

Frequency

RL (Min.)

Insertion Loss(Max.)

Propagation Delay (Max.)

Delay Skew(Max.)

NEXT (Min.)

PSNEXT (Min.)

ELNEXT (Min.)

PSELNEXT (Min.)

MHz

dB

dB/100m

ns/100m

ns/100m

dB

dB

dB/100m

dB/100m

1

20

2.2

570

45

65

62

61

61

4

23

4.2

552

45

56

53

48

48

10

25

6.5

545

45

50

47

41

41

16

25

8.4

543

45

47

44

36

36

20

25

9.3

542

45

45

42

34

34

31.25

23.6

11.6

540

45

42

39

31

31

62.5

21.5

17

539

45

38

35

25

25

100

20.1

22

538

45

35

32

21

21

Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.

Order Informations

Marking

HELLOSIGNAL NO.7112104 U/UTP CAT 5E 4PR 24AWG PVC CMR
XXX (or Per customer's request)

Inner Package

305m/Spool,305m/Reel (or Per customer's request)

Outer Package

Color Box, Pallet (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^®   OR OEM
