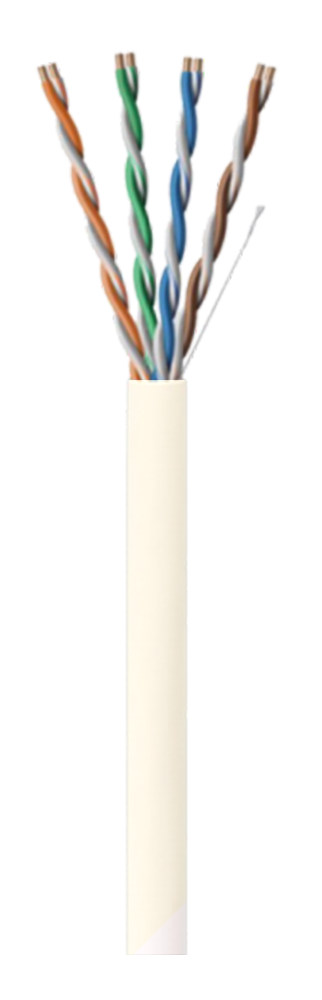

NO.7112105 U/UTP CAT 5E-UL CMP

Key Information & Construction

SKU:

7112105

UL Certificate Number:

E541136

Standards:

UL 444 & CSA C22.2 No.214
Communications Cables

Conductor Material:

Solid Bare Copper

Conductor Size:

24AWG/ 0.0193" / 0.49±0.005mm

Pairs:

4 Pairs

Insulation:

0.034" / 0.87±0.05 mm FEP

Insulation Colors:

Blue-White/Blue,Orange-White/Orange

Green-White/Green,Brown-White/Brown

Rip Cord:

Kevlar

Out Jacket:

Material: Plenum PVC

Wall Thickness: 0.0157". Nom(0.4mm)

OD:0.1811"±0.008“ (4.6±0.2mm)

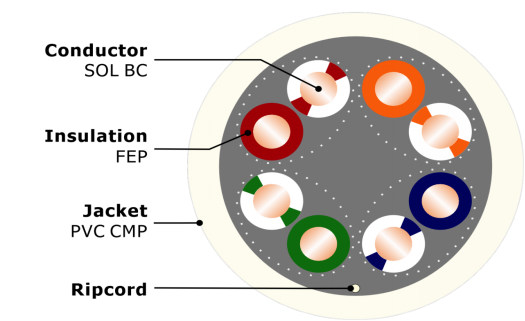

Cross Section

Application Support

· 1000BASE-T 、 1000BASE-TX、100BASE-T 、 100BASE-TX、100VG-AnyLAN、ATM

· 1Volp、ISDN、 Token、 100MTPPDM、 Analogand Datavideo、 POE Type1,2,3,4

Electrical Characteristics

DC Resistance

＜9.38 Ohms/100m @20℃

DC Resistance unbalance

5% @ 20℃

Mutual Capacitance

5.6 nF/100m

Characteristic Impedance

    1 - 100 MHz : 100±15 Ohms

Max Frequency

100MHz

Capacitance Unbalance

330 pF/100m

NVP(传输速率）

≥ 65%

Delay Skew

≤ 44ns/100m

Working Voltage

Typically up to 48V

Rated Voltage(V RMS)

300V

PHYSICAL PROPERTIES

Pulling Tension(Max)

25 lbs(110N)

Bend Radius(Min)

4 Times the cable diameter

Operating Temperature

-20 to 75 ℃ （-4 to 167℉）

Performance Characteristics

Frequency

Attenuation

NEXT
(dB)

ACRF
(dB)

PS.NEXT
(dB)

PS.ACRF
(dB)

RL
(dB)

Delay
(ns/100m)

Skew
(ns/100m)

MHz

dB

dB/100m

ns/100m

ns/100m

dB

dB

dB/100m

dB/100m

1

2.0

65.3

63.8

62.3

60.8

20.0

570.0

45.0

4

4.1

56.3

51.8

53.3

48.8

23.0

552.0

8

5.8

51.8

45.7

48.8

42.7

24.5

546.7

10

6.5

50.3

43.8

47.3

40.8

25.0

545.4

16

8.2

47.2

39.7

44.2

36.7

25.0

543.0

20

9.3

45.8

37.8

42.8

34.8

25.0

542.0

25

10.4

44.3

35.8

41.3

32.8

24.3

541.2

31.25

11.7

42.9

33.9

39.9

30.9

23.6

540.4

62.5

17.0

38.4

27.9

35.4

24.9

21.5

538.6

100

22.0

35.3

23.8

32.3

20.8

20.1

537.6

※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.

Order Informations

Marking

HANGZHOU ZION  7112105  U/UTP CAT5e  4PR
24AWG SOLID  100MHZ   E541136  (UL)C(UL)
VERIFIED  TO  ANSI/TIA 568C.2  RoHS  COMPLIANT   ***FT

Inner Package

1000FT/Pull Box or Wooden Spool (or Per customer's request)

Outer Package

Pallet (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM

OEM Customized Service:

Color

We can customized Jacket Color based on RAL Classic

Printing

We can customized printing words on jacket

Packing & Label

We can customized spool, carton & label design.
