PUR flexible,screened cable for servo motor
hellosignal
859301-859308
Product Description
| ◆Application | |||||||||||
| This cable apply to power supply of servo motor.This cable has ideal outside diameter and apply to small bending radius for drag chain.Resistant to hydrolysis and microbial attack. | ◆Technical data | ||||||||||
| ● Temperature range | |||||||||||

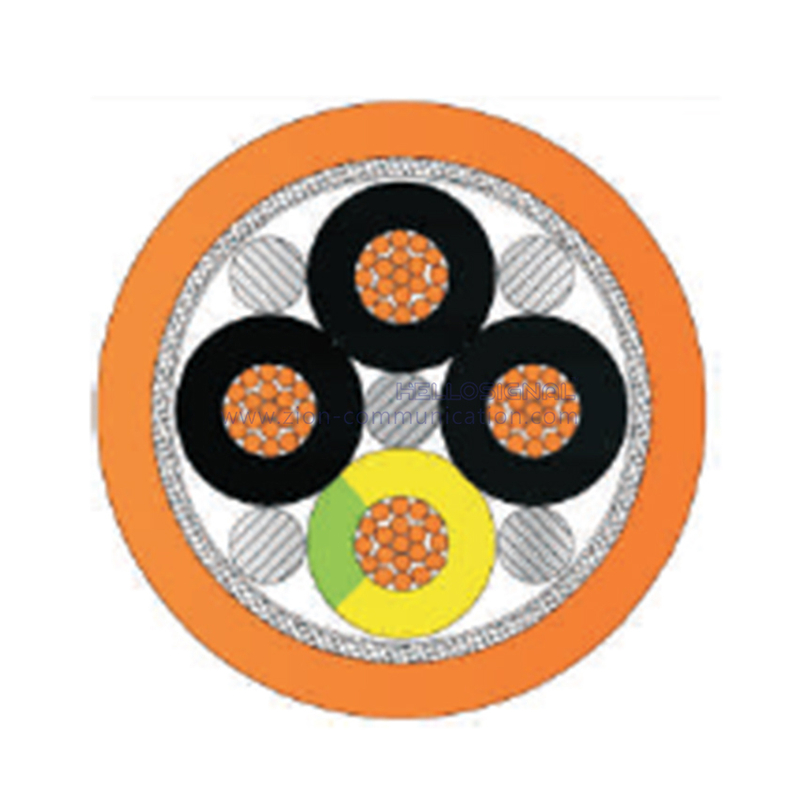

| ◆Cable Construction | Bend: -30℃ to 80℃ | ||||||||||
| Conductor:high bending strength ultra-fine stranded copper conductor | Static: -40℃ to 80℃ | ||||||||||
| Insulation:high mechanical strength TPE mixture | ● Rated voltage | ||||||||||
| Core identification:one is yellow/green insulated wwire,others are | UL/CSA 300V | ||||||||||
| black insulated wire print white font | IEC/VDE ≤0.5mm⊃2;;300/300V | ||||||||||
| Shield:high strength tinned copper braid | ≥0.5mm⊃2;;450/750V | ||||||||||
| Jocket:high abrasion resistant PUR jacket.Orange(simllar to RAL2003) | ● Insulation resistance | ||||||||||
| ◆Product Feature | 20℃≥1000M ohm/km | ||||||||||
| This product meets the requirements of UL758 style 20939 | ● Min bending radius | ||||||||||
| Fire resistance meets FT1&IEC60332-1 | Fixed: 5D(D=cable diameter) | ||||||||||
| Extremely oil resistance,anti-hydrolysis | Moving: 7.5(D=cable diameter) | ||||||||||
| Good performance of resistant to signal interference | |||||||||||
| High tensile strength,abrasion,impact and bending resistant | |||||||||||
| | |||||||||||

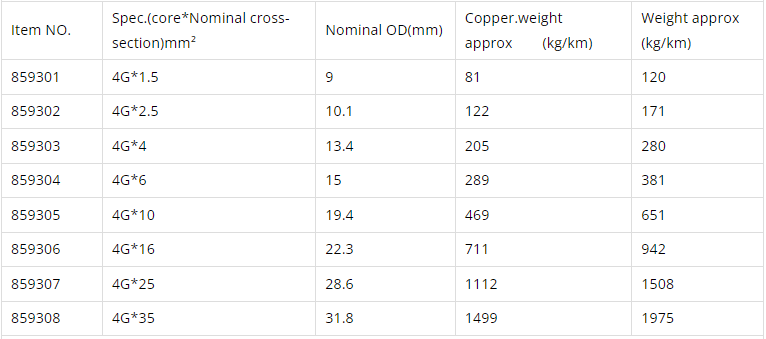

| Product List | |||||||||||
| Item NO. | Spec.(core*Nominal cross-section)mm⊃2; | Nominal OD(mm) | Copper.weight approx (kg/km) | Weight approx (kg/km) | |||||||
| 859301 | 4G*1.5 | 9 | 81 | 120 | |||||||
| 859302 | 4G*2.5 | 10.1 | 122 | 171 | |||||||
| 859303 | 4G*4 | 13.4 | 205 | 280 | |||||||
| 859304 | 4G*6 | 15 | 289 | 381 | |||||||
| 859305 | 4G*10 | 19.4 | 469 | 651 | |||||||
| 859306 | 4G*16 | 22.3 | 711 | 942 | |||||||
| 859307 | 4G*25 | 28.6 | 1112 | 1508 | |||||||
| 859308 | 4G*35 | 31.8 | 1499 | 1975 | |||||||
| | |||||||||||
| Order Informations: | |||||||||||
| Marking | HELLOSIGNAL KT0700 RG59/U BC 95% BC COAXIAL CABLE ETL XXXXXXX RoHS CM 60C | CMR 75C XXXFT/M | ||||||||||
| Package | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet | ||||||||||
| Delivery time | Normally 20-25 days after received the deposit. | ||||||||||
| More informations | please contact with us. | ||||||||||
| Brand | HELLOSIGNALTM OR OEM | ||||||||||
