PVC flexible,screened control cable for servo motor/encoder

PVC flexible, screened control cable for servo motor/encoder

■ Application:

This cable applies to the power supply and brake system of the servo motors cable has an ideal outside diameter and

applies to a smaller bending radius for the drag chain.

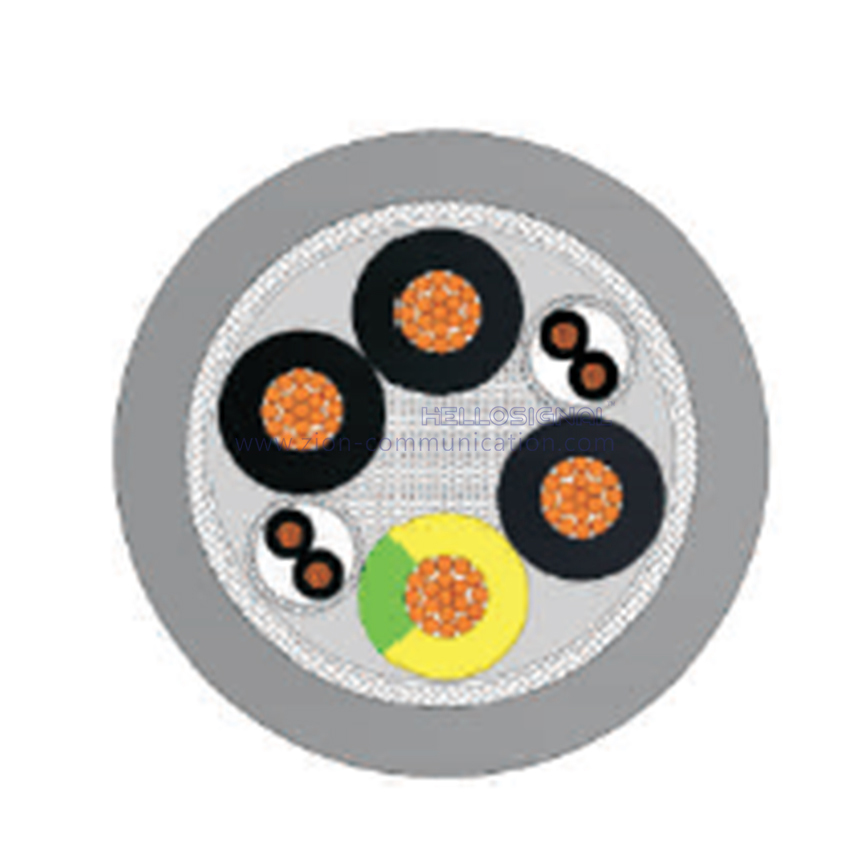

■ Construction:

Conductor: high bending strength ultra-fine stranded copper conductor insulation: flexible heat resistant Pvc insulation

Inner jacket: flexible Pvc

Shield: high strength tinned copper braid, shield coverage≥85%Out jacket: high strength oil and heat resistant PVC(Grey)

■ Features:

Very good oil resistance

High property of tensile and bending strength

Power transmission

■ Technical data:

Temperature range:

• Bend: -5°C to 105°C

• Static: -40°C to 105°C

Rated voltage:

• UL/CSA 600V

• IEC/VDE 450/750V

Insulation resistance:

• 20°C≥10M ohm/km

Min bending radius:

• Fixed: 5D(D=cable diameter)

• Moving:  7.5(D=cable diameter)

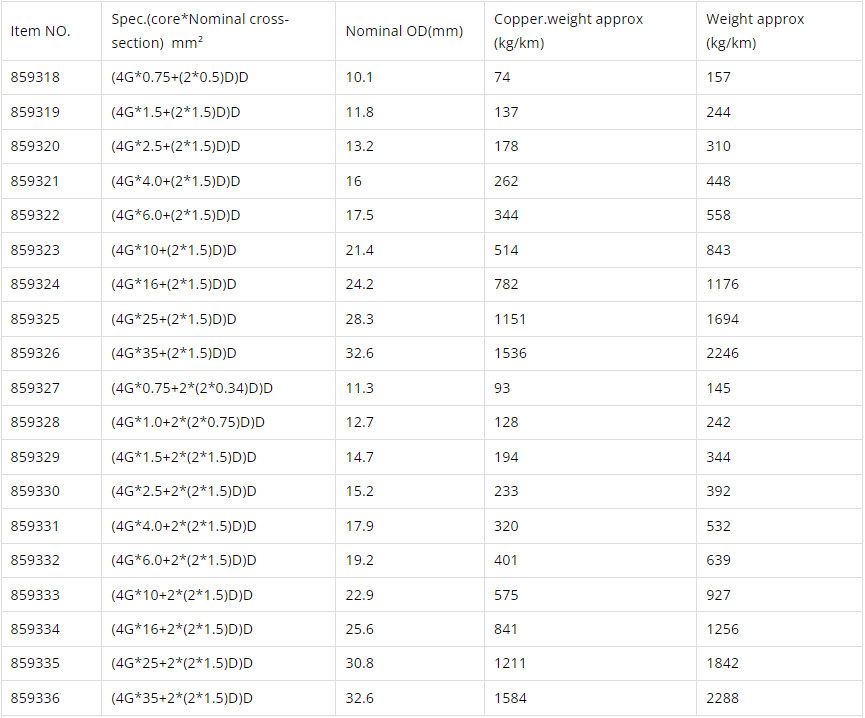

■ Product List:

■ Order Information:

Marking: HELLOSIGNAL Z-SERVO PVC flexible, screened control cable for servo motor/encode XXXFT/M

Package: 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet

Delivery time: Normally 20-25 days after receiving the deposit.

For more information: please contact us.

Brand: HELLOSIGNALTM OR OEM
