PUR flexible,screened control cable for servo motor
hellosignal
859309-859317
Product Description
| ◆Application | |||||||||||
| Apply to high-speed,middle and high--end servo motor. Be used as power wire in automation system. Be used as connecting cables for power system of machine tool. Resistant to hydrolysis and microbial attack. | ◆Technical data | ||||||||||
| ● Temperature range | |||||||||||
| Bend: -30℃ to 80℃ | |||||||||||

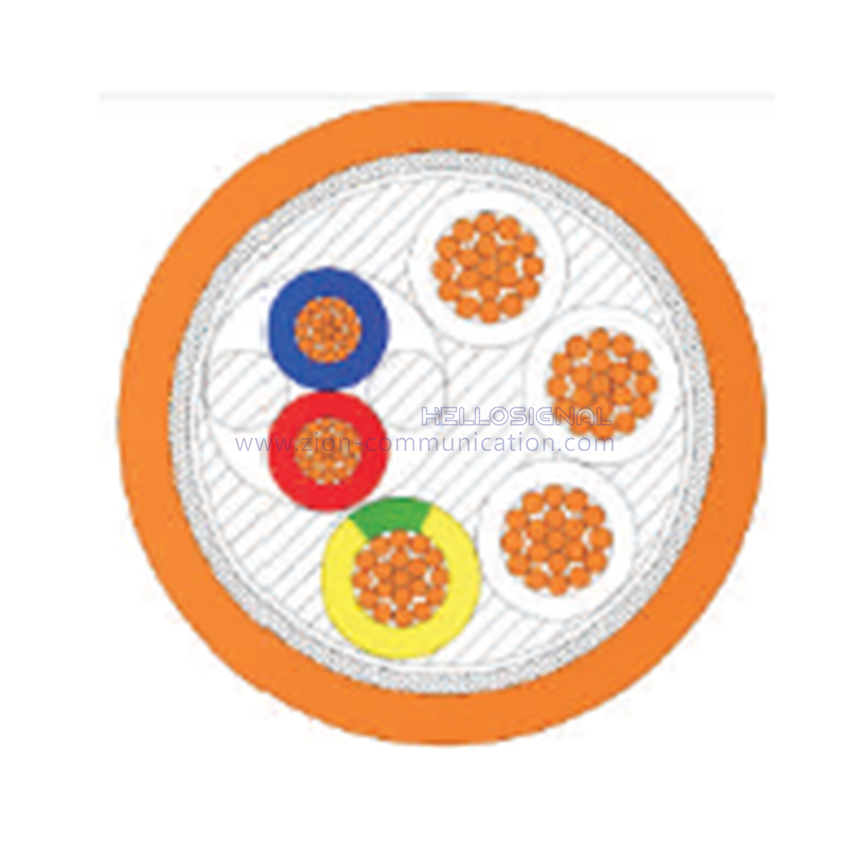

| ◆Cable Construction | Static: -40℃ to 80℃ | ||||||||||
| Conductor:high bending strength ultra-fine stranded copper conductor | ● Rated voltage | ||||||||||
| Insulation:high mechanical strength TPE mixture | UL/CSA 300V | ||||||||||
| Core identification:power wires:one is yellow/green insulated wwire,others | IEC/VDE ≤0.5mm⊃2;;300/300V | ||||||||||
| are white insulated wire print black font;A pair of singal wires:blue,red | ≥0.5mm⊃2;;450/750V | ||||||||||
| Shield:high strength tinned copper braid | ● Insulation resistance | ||||||||||
| Jocket:high abrasion resistant PUR jacket.Orange(simllar to RAL2003) | 20℃≥1000M ohm/km | ||||||||||
| ◆Product Feature | ● Min bending radius | ||||||||||
| This product meets the requirements of UL758 style 20939 | Fixed: 3D(D=cable diameter) | ||||||||||
| Fire resistance meets FT1&IEC60332-1 | Moving: 7.5(D=cable diameter) | ||||||||||
| Extremely oil resistance,anti-hydrolysis | |||||||||||
| Good performance of resistant to signal interference | |||||||||||
| High tensile strength,abrasion,impact and bending resistant | |||||||||||

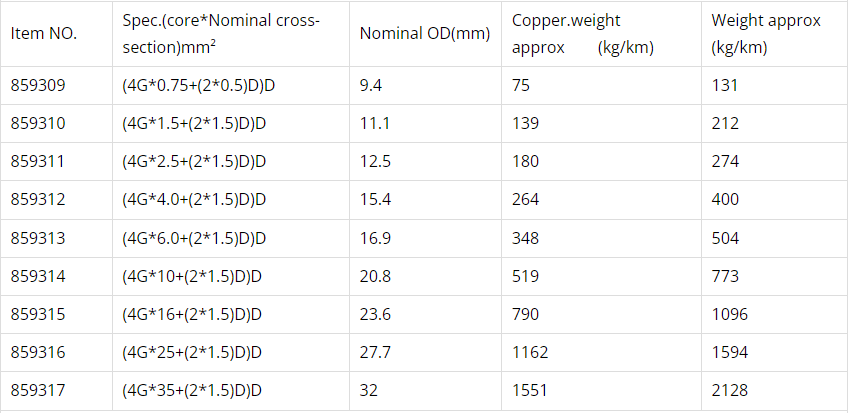

| Product List | |||||||||||
| Item NO. | Spec.(core*Nominal cross-section)mm⊃2; | Nominal OD(mm) | Copper.weight approx (kg/km) | Weight approx (kg/km) | |||||||
| 859309 | (4G*0.75+(2*0.5)D)D | 9.4 | 75 | 131 | |||||||
| 859310 | (4G*1.5+(2*1.5)D)D | 11.1 | 139 | 212 | |||||||
| 859311 | (4G*2.5+(2*1.5)D)D | 12.5 | 180 | 274 | |||||||
| 859312 | (4G*4.0+(2*1.5)D)D | 15.4 | 264 | 400 | |||||||
| 859313 | (4G*6.0+(2*1.5)D)D | 16.9 | 348 | 504 | |||||||
| 859314 | (4G*10+(2*1.5)D)D | 20.8 | 519 | 773 | |||||||
| 859315 | (4G*16+(2*1.5)D)D | 23.6 | 790 | 1096 | |||||||
| 859316 | (4G*25+(2*1.5)D)D | 27.7 | 1162 | 1594 | |||||||
| 859317 | (4G*35+(2*1.5)D)D | 32 | 1551 | 2128 | |||||||
| Order Informations: | |||||||||||
| Marking | HELLOSIGNAL KT0700 RG59/U BC 95% BC COAXIAL CABLE ETL XXXXXXX RoHS CM 60C | CMR 75C XXXFT/M | ||||||||||
| Package | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet | ||||||||||
| Delivery time | Normally 20-25 days after received the deposit. | ||||||||||
| More informations | please contact with us. | ||||||||||
| Brand | HELLOSIGNALTM OR OEM | ||||||||||
