PVC flexible singal control cable for drag chain with screen(Multicore)
hellosignal
859337-859360
| ◆Application | |||||||||||
| This cable apply to drag chain and general line control of low voltage control system.It has ideal outside diameter and apply to smaller bending radius for drag chain. It apply to line control system with less interference. | ◆Technical data | ||||||||||
| ● Temperature range | |||||||||||
| Bend: -5℃ to 80℃ | |||||||||||

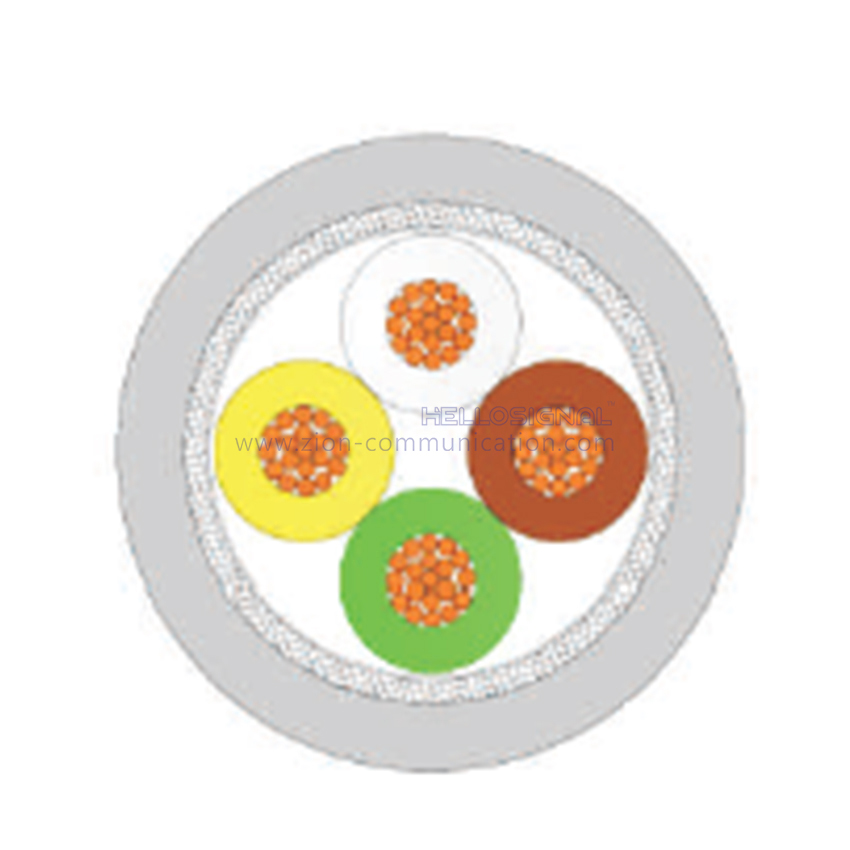

| ◆Cable Construction | Static: -40℃ to 80℃ | ||||||||||
| Conductor:high bending strength ultra-fine stranded copper conductor | ● Rated voltage | ||||||||||
| Insulation: PVC mixture insulation | UL/CSA 30V | ||||||||||
| Shield: high strength tinned copper braid | IEC/VDE 100V以下 | ||||||||||
| Jacket: flexible oil and heat resistant PVC jacket | ● Insulation resistance | ||||||||||
| ◆Product Feature | 20℃≥10M ohm/km | ||||||||||
| This product meets the requirements of UL758 style 20276 | ● Min bending radius | ||||||||||
| Oil,abrasion and bending resistance | 6D(D=cable diameter) | ||||||||||
| | |||||||||||
| Product List | |||||||||||
| Item NO. | Spec.(core*Nominal cross-section)mm² | Nominal OD(mm) | Copper.weight approx (kg/km) | Weight approx (kg/km) | |||||||
| 859337 | 2*26AWG | 4.3 | 9.5 | 25 | |||||||
| 859338 | 3*26AWG | 4.5 | 11.6 | 29 | |||||||
| 859339 | 4*26AWG | 4.7 | 13.7 | 33 | |||||||
| 859340 | 10*26AWG | 6.1 | 26.9 | 56 | |||||||
| 859341 | 20*26AWG | 7.3 | 45.3 | 88 | |||||||
| 859342 | 30*26AWG | 8.7 | 64.3 | 124 | |||||||
| 859343 | 2*24AWG | 4.7 | 11.9 | 30 | |||||||
| 859344 | 3*24AWG | 4.8 | 14.1 | 34 | |||||||
| 859345 | 4*24AWG | 5.1 | 17.1 | 39 | |||||||
| 859346 | 10*24AWG | 6.9 | 34.9 | 71 | |||||||
| 859347 | 20*24AWG | 8.3 | 59.1 | 113 | |||||||
| 859348 | 30*24AWG | 10.1 | 88.4 | 166 | |||||||
| 859349 | 2*22AWG | 5 | 15.1 | 37 | |||||||
| 859350 | 3*22AWG | 5.2 | 18.9 | 41 | |||||||
| 859351 | 4*22AWG | 5.5 | 23 | 48 | |||||||
| 859352 | 10*22AWG | 7.5 | 48.3 | 91 | |||||||
| 859353 | 20*22AWG | 9.1 | 84.7 | 147 | |||||||
| 859354 | 30*22AWG | 11.2 | 127 | 218 | |||||||
| 859355 | 2*20AWG | 5.4 | 20.6 | 45 | |||||||
| 859356 | 3*20AWG | 5.6 | 26.4 | 51 | |||||||
| 859357 | 4*20AWG | 6 | 32.9 | 61 | |||||||
| 859358 | 10*20AWG | 8.3 | 71.5 | 120 | |||||||
| 859359 | 20*20AWG | 10.3 | 133.5 | 207 | |||||||
| 859360 | 30*20AWG | 12.7 | 199.4 | 309 | |||||||
| Order Informations: | |||||||||||
| Marking | HELLOSIGNAL Z-FLEX-SB/20276 PVC flexible singal control cable for drag chain with screen(Multicore) XXXFT/M | ||||||||||
| Package | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet | ||||||||||
| Delivery time | Normally 20-25 days after received the deposit. | ||||||||||
| More informations | please contact with us. | ||||||||||
| Brand | HELLOSIGNALTM OR OEM | | |||||||||
