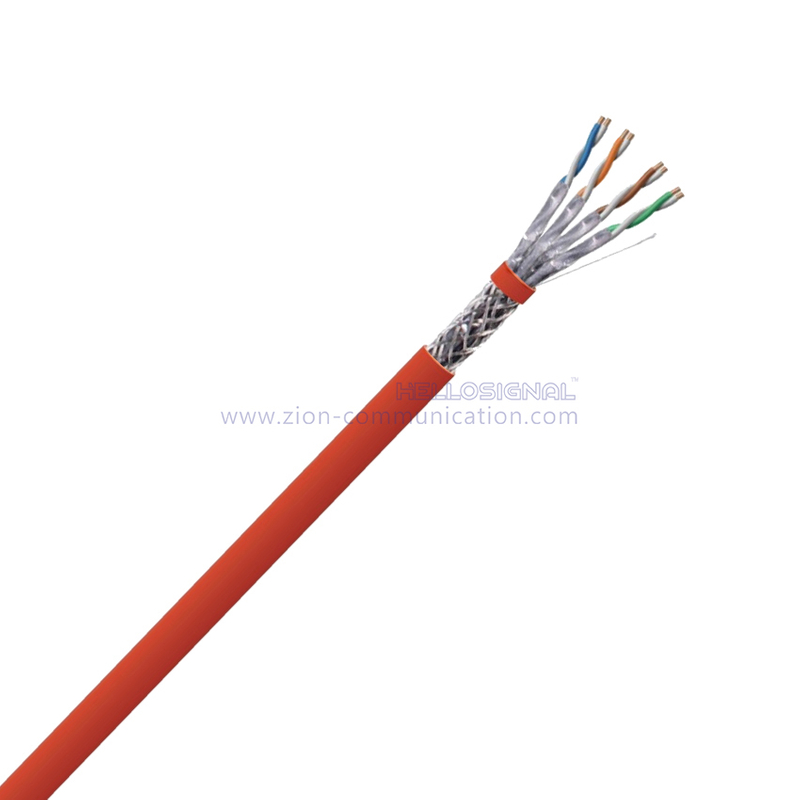

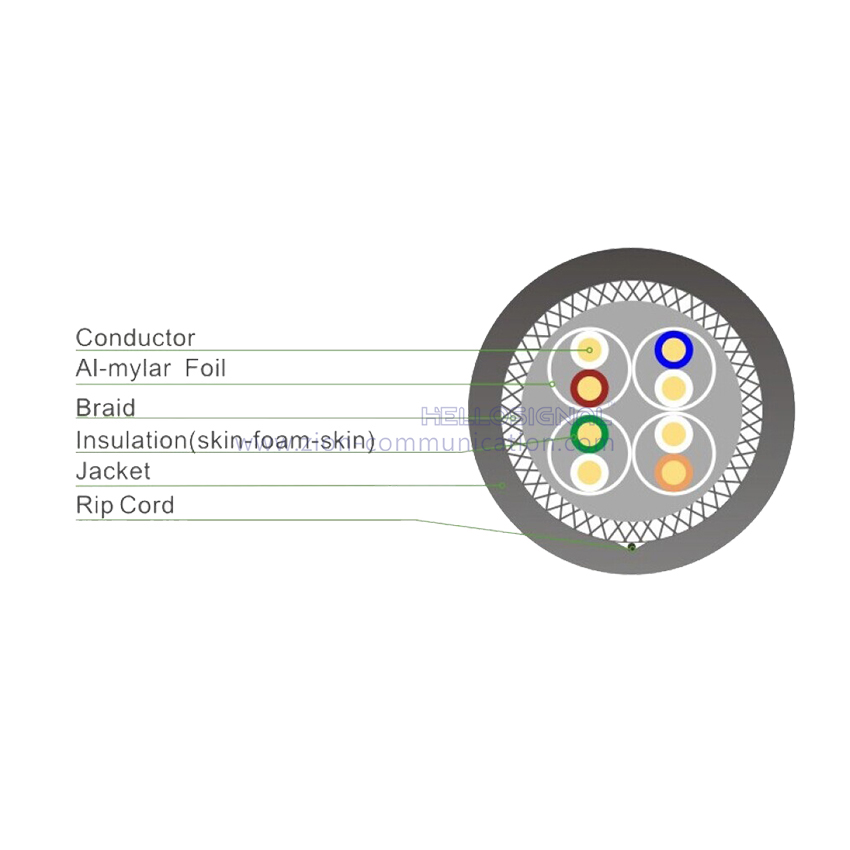

S/FTP Single CAT 7 Twisted Pair Installation Cable
| Construction | ||||||||
| Conductor: | 23 AWG Solid Bare Copper | |||||||
| Pairs: | 4 Pairs | |||||||
| Insulation: | Skin Foam Skin | |||||||
| Insulation Colors: | Blue,White/Blue ; Orange,White/Orange | |||||||
| Green,White/Green; Brown,White/Brown | ||||||||
| Shield: | Individual Pair shield, Al/Pet Foil, Foil face out | |||||||
| Rip Cord: | Cotton | |||||||
| Out Jacket: | 8.3±0.3 mm | |||||||
| Application | Electrical Characteristics | |||||||
| Suitable for structured premises cabling; | Impedance: | 4 - 100MHz 100±15 Ohms | ||||||
| Transmission of digigal & analogue voice & data signals; | 100 - 200MHz 100±22 Ohms | |||||||
| Especially suitable for all Class FA applications; | 200 - 1000MHz 100±32 Ohms | |||||||
| ISDN, Ethernet 10 Base-T,Fast Ethernet 100Base-T, | Max.Conductor DC Resistance 20℃ | 8.4 Ohms/100m | ||||||
| Gigabit Ethernet 1000Base-T,10G Base-T.(IEEE 802.3); | ||||||||
| Token Ring 4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s, | Res. unbalance (%) | Max. 2.5 | ||||||
| ATM 155Mbits/s.(IEEE 802.5). | Pair to Ground Capacitance Unbalance | 330 pF/100m | ||||||
| Standard | ||||||||
| IEC / ISO 61156-5 ; ISO / IEC 11801 | Transfer Impendance | Max 10 mOhms/m @100Mhz | ||||||
| Order Information | Installation temp. | 0 - 50℃ | ||||||
| PVC / CMX / CM / CMR / CMP / LSZH / LDPE | Operation temp. | -20 - 60℃ | ||||||
| Performance Characteristics | ||||||||
| Frequency | RL (Min.) | Insertion Loss (Max.) | Propagation Delay (Max.) | Delay Skew (Max.) | NEXT (Min.) | PSNEXT (Min.) | ELNEXT (Min.) | PSELNEXT (Min.) |
| MHz | dB | dB/100m | ns/100m | ns/100m | dB | dB | dB/100m | dB/100m |
| 4 | 23 | 3.7 | 552 | 25 | 78 | 75 | 78 | 75 |
| 16 | 25 | 7.3 | 543 | 25 | 78 | 75 | 71.2 | 68.2 |
| 20 | 25 | 8.2 | 542 | 25 | 78 | 75 | 69.3 | 66.3 |
| 25 | 24.3 | 9.2 | 541 | 25 | 78 | 75 | 67.3 | 64.3 |
| 31.25 | 23.6 | 10.3 | 540 | 25 | 78 | 75 | 65.4 | 62.4 |
| 62.5 | 21.5 | 14.6 | 539 | 25 | 75.5 | 72.5 | 59.4 | 56.4 |
| 100 | 20.1 | 18.5 | 538 | 25 | 72.4 | 69.4 | 55.3 | 52.3 |
| 200 | 18 | 26.5 | 537 | 25 | 67.9 | 64.9 | 49.3 | 46.3 |
| 250 | 17.3 | 29.7 | 536 | 25 | 66.4 | 63.4 | 47.3 | 44.3 |
| 300 | 17.3 | 32.7 | 536 | 25 | 65.2 | 62.2 | 45.8 | 42.8 |
| 400 | 17.3 | 38 | 536 | 25 | 63.4 | 60.4 | 43.3 | 40.3 |
| 500 | 17.3 | 42.8 | 536 | 25 | 61.9 | 58.9 | 41.3 | 38.3 |
| 600 | 17.3 | 47.1 | 535 | 25 | 60.7 | 57.7 | 39.7 | 36.7 |
| Order Informations: | ||||||||
| Marking | HELLOSIGNAL S/FTP CAT 7A XXX (or Per customer's request) | |||||||
| Inner Package | 305m/Spool,305m/Reel (or Per customer's request) | |||||||
| Outer Package | Color Box, Pallet (or Per customer's request) | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
| Brand | HELLOSIGNAL® OR OEM | |||||||
