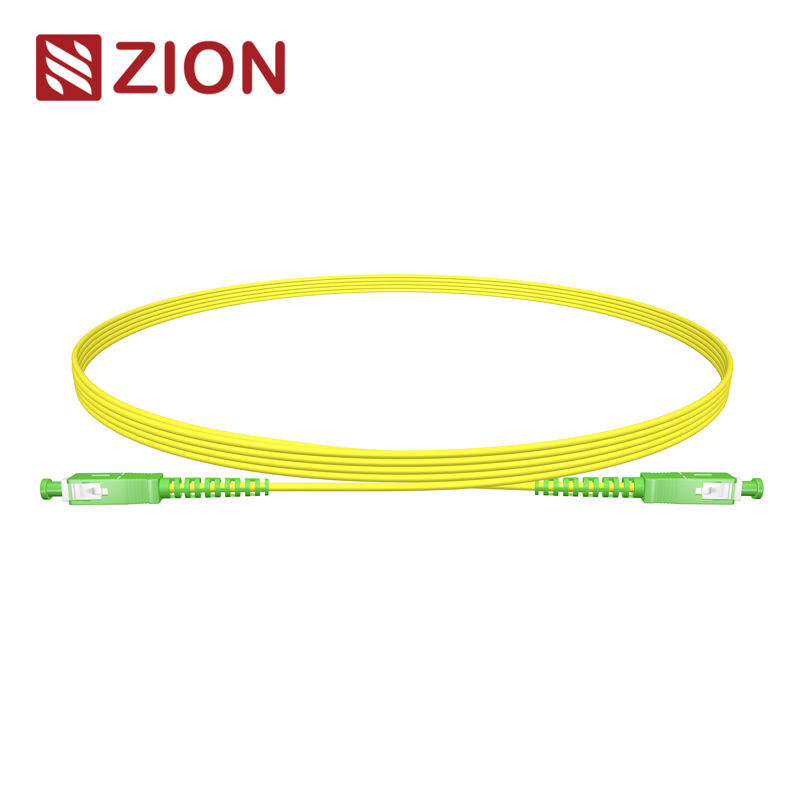

SC APC to SC APC Simplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC

SC APC to SC APC Simplex
G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC
2222S112-2

■ Fiber Optic Cable Specifications:

• Fiber Type:

Single-mode: OS2 (G.652.D / G.657.A1 / G.657.A2)

Multi-mode: OM1 (62.5/125), OM2 (50/125), OM3 & OM4 (50/125, Laser Optimized)

• Fiber Count: Simplex / Duplex

• Cable Jacket:

Material: PVC / LSZH / Plenum (OFNP)

• Outer Diameter:

Simplex: 0.9mm / 2.0mm / 3.0mm

Duplex: 0.9mm / 2.0mm / 3.0mm

• Jacket Color:

Yellow: SM OS2 (G.652.D / G.657.A1 / G.657.A2)

Orange: OM1, OM2

Aqua: OM3, OM4

• Cable Length: 1m, 2m, 3m (custom lengths available upon request)

• Ferrule: Ceramic (MTRJ: PS-Polyphenylene Sulphide)

• Apex Offset: ＜ 50µm

• Fiber Height: ± 100nm

• Radius of Curvature: 7mm ≤ R ＜ 25mm (Excluding MTRJ)

• Repeatability: ≤ 0.2dB after 1,000 mating cycles



■ Product Specification:

Connector Type: LC, SC, FC, ST, MU, MTRJ, LSH, E-2000

SC ( Subscriber Connector/Square Connector/Standard Connector)
Typical Application: Telecom,GPON,EPON,GBIC

■ Fiber Optic Connector Parameters:

Connector Type: SC UPC

Fiber Type: Single-mode (OS2 G.652.D / G.657.A1 / G.657.A2)

Operating Wavelength: 1310-1550 nm

Insertion Loss: ≤ 0.3 dB

Return Loss: ≥ 55 dB

Repeatability: ≤ 0.1 dB

Interchangeability: ≤ 0.2 dB

Tensile Strength: ≥ 1000 N

Operating Temperature: -20℃ ~ +85℃

Storage Temperature: -40℃ ~ +85℃

Zion Code: 2222S112-2

Description: SC APC to SC APC Simplex, G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC

■ OEM/ODM service for you:

ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team.

• Customized Logo

• Printing on Cable

• Label/PE bag/Carton design

• Different Color & Different Lengths Available
