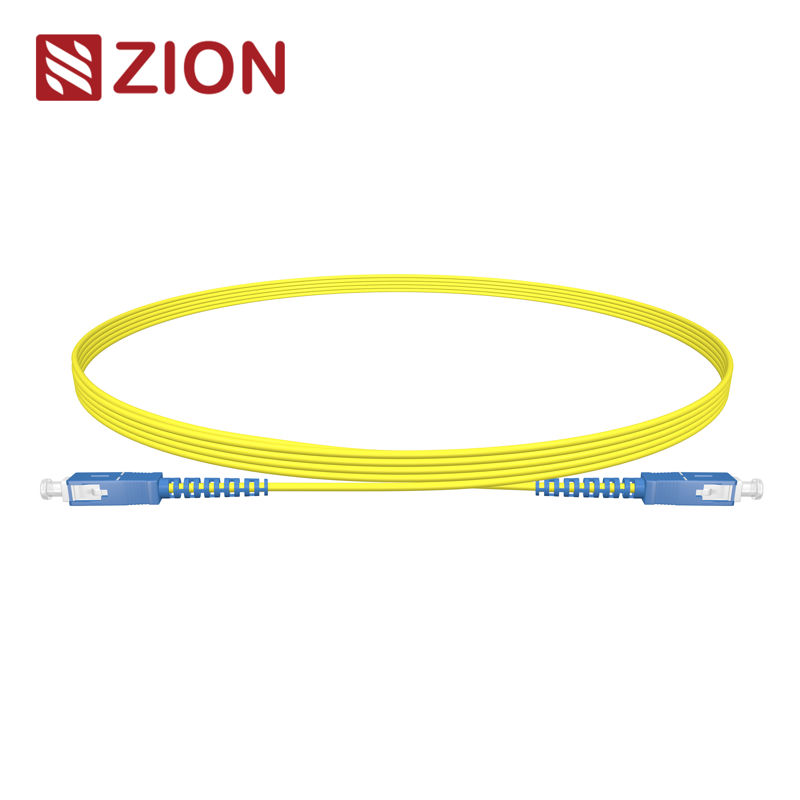

SC UPC to SC UPC Simplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC

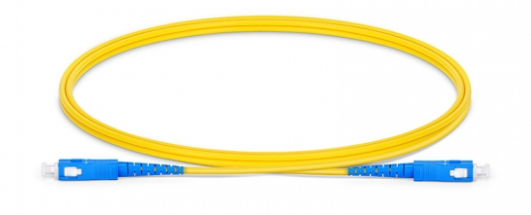

SC UPC to SC UPC Simplex
G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC

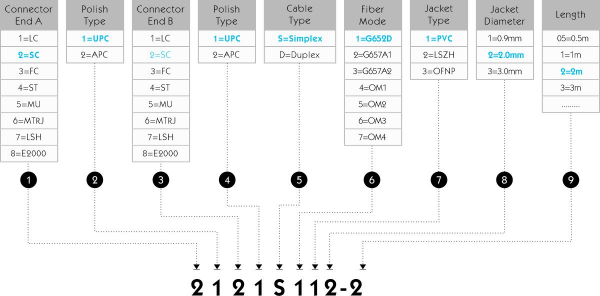

2121S112-2

■ Product Specification:

Fiber Optic Cable

• Fiber Type：

Single-mode: OS2 ( G.652.D /  G.657.A1 / G.657.A2)

Multi-mode: OM1(62.5/125), OM2(50(125),[(OM3, OM4) (50/125,Laser Optimization)]

• 900um/0.9mm Buffer Colour：

Yellow: SM: OS2 ( G.652.D /  G.657.A1 / G.657.A2)

Orange: OM1, OM2

Aqua: OM3, OM4

Customized: Green, Brown, White, Red, Black, Purple, Rose, Slate

• 900um/0.9mm Types：

Single Typical: 1 Fiber

Bunch Typical: 12 Fibers

Customized: 4-48 Fibers

• Aramid Yarn (2.0/3.0mm)：

Aramid yarn is laid over the cable core to serve as a peripheral strength member.

• Cable Jacket：

Main material: PVC / LSZH / Plenum (OFNP)

OD: Simplex: 0.9/2.0/3.0mm    Duplex: 0.9/2.0/3.0mm

• Jacket Color：

Yellow: SM: OS2 ( G.652.D /  G.657.A1 / G.657.A2)

Orange: OM1, OM2

Aqua: OM3, OM4

• Cable Length：

1m, 2m, 3m. other lengths on request

■ Product Specification:

Connector Type: LC, SC, FC, ST, MU, MTRJ, LSH, E-2000

SC ( Subscriber Connector/Square Connector/Standard Connector)
Typical Application:
Telecom,GPON,EPON,GBIC

■ SC UPC Fiber Optic Connector Specifications:

Fiber Type: SM (OS2) G.652.D / G.657.A1 / G.657.A2
Operating Wavelength (nm): 1310-1550
Insertion Loss (dB): ≤ 0.3
Return Loss (dB): ≥ 55
Repeatability (dB): ≤ 0.1
Interchangeability (dB): ≤ 0.2
Tensile Strength (N): ≥ 1000
Operating Temperature (℃): -20 ~ +85
Storage Temperature (℃): -40 ~ +85

Zion Code: 2121S112-2

Description: SC UPC 12 Fibers

G.652.D Single Mode Unjacketed Color-Coded FOPT

■ OEM/ODM service for you:

ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team.

• Customized Logo

• Printing on Cable

• Label/PE bag/Carton design

• Different Color & Different Lengths Available
