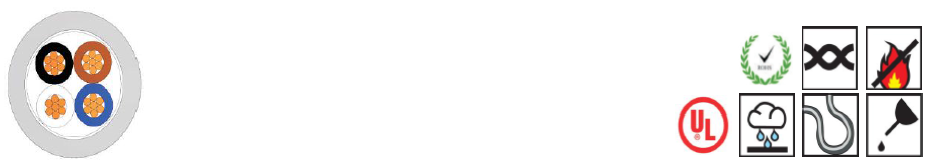

Sensor cable - unscreen（fixed application
hellosignal
859201-859210
| ◆Application | |||||||||||
| According to production requsts,Industrial sensor cable assist sensor to monitor processing data.It is first priorities to automatic tests and control,cable used in industrial production, environment protection,resource exploration. Cable fixed installation for slightly movement. | ◆Technical data | ||||||||||
| ● Temperature range | |||||||||||
| .-40℃ to 80℃ | |||||||||||
| ● Rated voltage | |||||||||||
| ◆Cable Construction | UL/CSA 300V | ||||||||||
| Conductor: Stranded bare copper wire | ● Bending radius | ||||||||||
| Insulation: PVC | 10x cable diameter | ||||||||||
| Cabling: PET (optional) | ● Test voltage | ||||||||||
| Jacket: see attached list | 1500V 1min,no breakdown | ||||||||||
| Color: Grey or other colors | ● Insulation resistance | ||||||||||
| ◆Product Feature | 0.25mm²≤80 ohm/km | ||||||||||
| Oil resistance,Easy flexible bending | 0.34mm²≤60 ohm/km | ||||||||||
| Fire resistance meets IEC60332-1 | | ||||||||||
| | |||||||||||
| Product List | |||||||||||
| Item NO. | Spec. | Jacket | Nominal OD(mm) | Copper.weight approx (kg/km) | Weight approx (kg/km) | ||||||
| 859201 | 3*0.25mm² | PVC | 4.4 | 7 | 25 | ||||||
| 859202 | 3*0.25mm² | PUR | 4.4 | 7 | 24 | ||||||
| 859203 | 4*0.25mm² | PVC | 4.4 | 9.5 | 27 | ||||||
| 859204 | 4*0.25mm² | PUR | 4.4 | 9.5 | 25 | ||||||
| 859205 | 3*0.34mm² | PVC | 5.2 | 10 | 34 | ||||||
| 859206 | 3*0.34mm² | PUR | 5.2 | 10 | 32 | ||||||
| 859207 | 4*0.34mm² | PVC | 5.2 | 13.5 | 37 | ||||||
| 859208 | 4*0.34mm² | PUR | 5.2 | 13.5 | 35 | ||||||
| 859209 | 5*0.34mm² | PVC | 5.2 | 17 | 42 | ||||||
| 859210 | 5*0.34mm² | PUR | 5.2 | 17 | 40 | ||||||
| Order Informations: | |||||||||||
| Marking | HELLOSIGNAL Sensor cable-PVC insulation without screen （fixed application） XXXFT/M | ||||||||||
| Package | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet | ||||||||||
| Delivery time | Normally 20-25 days after received the deposit. | ||||||||||
| More informations | please contact with us. | ||||||||||
| Brand | HELLOSIGNALTM OR OEM | ||||||||||
