Sensor cable-screen（fixed application）
hellosignal
859221-859230
| ◆Application | |||||||||||
| According to production requsts,Industrial sensor cable assist sensor to monitor processing data.It is first priorities to automatic tests and control,cable used in industrial production,environment protection,resource exploration. Cable fixed installation for slightly movement. | ◆Technical data | ||||||||||
| ● Temperature range | |||||||||||
| .-5℃ to 70℃ | |||||||||||
| ● Rated voltage | |||||||||||

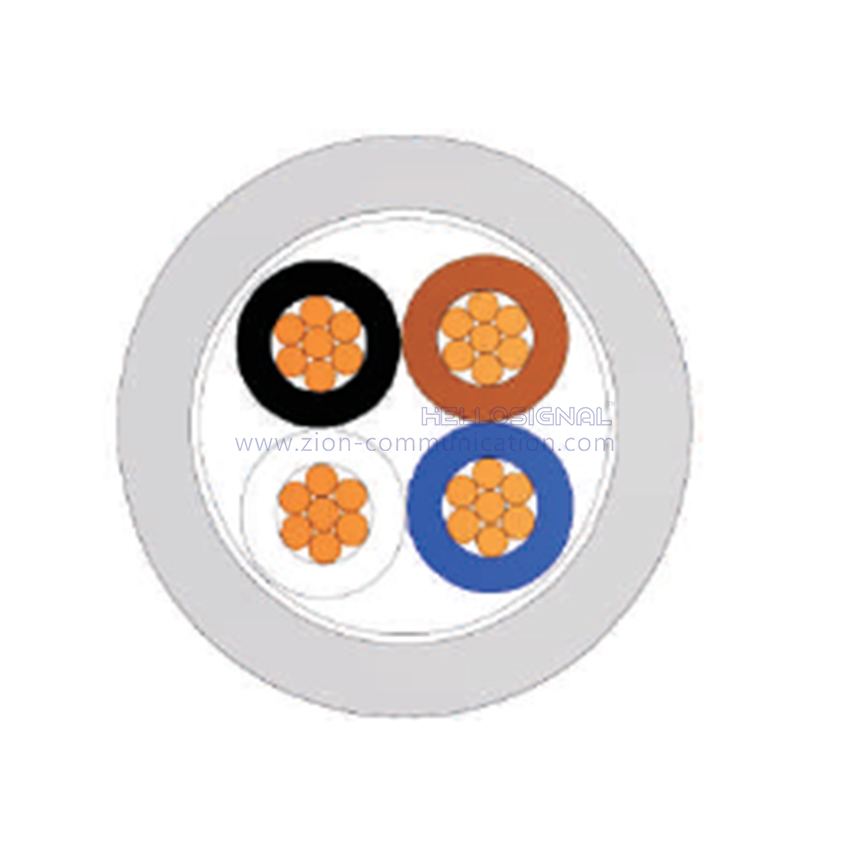

| ◆Cable Construction | UL/CSA 300V | ||||||||||
| Conductor: Stranded bare copper wire | ● Bending radius | ||||||||||
| Insulation: PVC | 10x cable diameter | ||||||||||
| Cabling: PET (optional) | ● Test voltage | ||||||||||
| Shield:AL/Mylar screen and TC braid | 1500V 1min,no breakdown | ||||||||||
| Drain wire:Tinned copper wire | ● Insulation resistance | ||||||||||
| Jacket: see attached list | 0.25mm²≤80 ohm/km | ||||||||||
| Color: Grey | 0.34mm²≤60 ohm/km | ||||||||||
| ◆Product Feature | |||||||||||
| Oil and Abrasion resistance,Anti-hydrolysis | |||||||||||
| Fire resistance meets IEC60332-1 | |||||||||||
| Copper wire braiding to ensure good Anti-EMI performance | |||||||||||
| | |||||||||||
| Product List | |||||||||||
| Item NO. | Spec. | Jacket | Nominal OD(mm) | Copper.weight approx (kg/km) | Weight approx (kg/km) | ||||||
| 859221 | 3*0.25mm² | PVC | 4.4 | 17 | 35 | ||||||
| 859222 | 3*0.25mm² | PUR | 4.4 | 17 | 34 | ||||||
| 859223 | 4*0.25mm² | PVC | 4.4 | 20.5 | 37 | ||||||
| 859224 | 4*0.25mm² | PUR | 4.4 | 20.5 | 36 | ||||||
| 859225 | 3*0.34mm² | PVC | 5.2 | 22 | 47 | ||||||
| 859226 | 3*0.34mm² | PUR | 5.2 | 22 | 45 | ||||||
| 859227 | 4*0.34mm² | PVC | 5.2 | 26 | 50 | ||||||
| 859228 | 4*0.34mm² | PUR | 5.2 | 26 | 48 | ||||||
| 859229 | 5*0.34mm² | PVC | 5.2 | 33.5 | 55 | ||||||
| 859230 | 5*0.34mm² | PUR | 5.2 | 33.5 | 54 | ||||||
| | |||||||||||
| Order Informations: | |||||||||||
| Marking | HELLOSIGNAL Sensor cable-PVC insulation with screen （fixed application） XXXFT/M | ||||||||||
| Package | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet | ||||||||||
| Delivery time | Normally 20-25 days after received the deposit. | ||||||||||
| More informations | please contact with us. | ||||||||||
| Brand | HELLOSIGNALTM OR OEM | ||||||||||
