Sensor cable-unscreen（for deag chain）
hellosignal
859211-859220
| ◆Application | |||||||||||
| According to production requsts,Industrial sensor cable assist sensor to monitor processing data.It is first priorities to automatic tests and control,cable used in industrial production, environment protection,resource exploration. Very flexible installation(power chains or moving machine parts). | ◆Technical data | ||||||||||
| ● Temperature range | |||||||||||
| .-5℃ to 70℃ | |||||||||||
| ● Rated voltage | |||||||||||

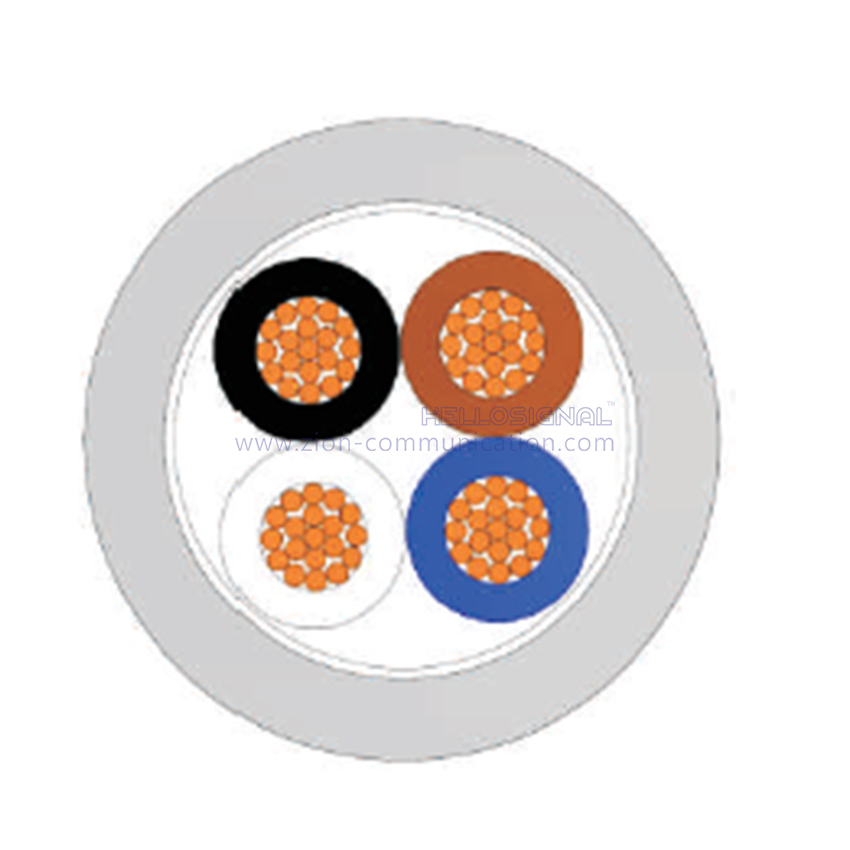

| ◆Cable Construction | UL/CSA 300V | ||||||||||
| Conductor: Stranded bare copper wire | ● Bending radius | ||||||||||
| Insulation: PVC | 15x cable diameter | ||||||||||
| Cabling: PET (optional) | ● Test voltage | ||||||||||
| Jacket: see attached list | 1500V 1min,no breakdown | ||||||||||
| Color: Grey | ● Insulation resistance | ||||||||||
| ◆Product Feature | 0.25mm²≤80 ohm/km | ||||||||||
| Oil resistance,Easy flexible bending | 0.34mm²≤60 ohm/km | ||||||||||
| Fire resistance meets IEC60332-1 | | ||||||||||
| Abrasion resistance,Anti-hydrolysis | | ||||||||||
| | |||||||||||
| Product List | |||||||||||
| Item NO. | Spec. | Jacket | Nominal OD(mm) | Copper.weight approx (kg/km) | Weight approx (kg/km) | ||||||
| 859211 | 3*0.25mm² | PVC | 4.4 | 7 | 24.5 | ||||||
| 859212 | 3*0.25mm² | PUR | 4.4 | 7 | 23.5 | ||||||
| 859213 | 4*0.25mm² | PVC | 4.4 | 9.5 | 26.5 | ||||||
| 859214 | 4*0.25mm² | PUR | 4.4 | 9.5 | 25 | ||||||
| 859215 | 3*0.34mm² | PVC | 5.2 | 9.7 | 34 | ||||||
| 859216 | 3*0.34mm² | PUR | 5.2 | 9.7 | 33 | ||||||
| 859217 | 4*0.34mm² | PVC | 5.2 | 13.2 | 37 | ||||||
| 859218 | 4*0.34mm² | PUR | 5.2 | 13.2 | 35 | ||||||
| 859219 | 5*0.34mm² | PVC | 5.2 | 16.5 | 42 | ||||||
| 859220 | 5*0.34mm² | PUR | 5.2 | 16.5 | 40 | ||||||
| | |||||||||||
| Order Informations: | |||||||||||
| Marking | HELLOSIGNAL Sensor cable-PVC insulation without screen （for deag chain） XXXFT/M | ||||||||||
| Package | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet | ||||||||||
| Delivery time | Normally 20-25 days after received the deposit. | ||||||||||
| More informations | please contact with us. | ||||||||||
| Brand | HELLOSIGNALTM OR OEM | ||||||||||
