Sensor cable-special PO insulation（fixed application）
hellosignal
859231-859240
Product Description
| ◆Application | |||||||||||
| According to production requsts,Industrial sensor cable assist sensor to monitor processing data.It is first priorities to automatic tests and control,cable used in industrial production, environment protection,resource exploration. Cable fixed installation for slightly movement. | ◆Technical data | ||||||||||
| ● Temperature range | |||||||||||
| .-40℃ to 80℃ | |||||||||||
| ● Rated voltage | |||||||||||

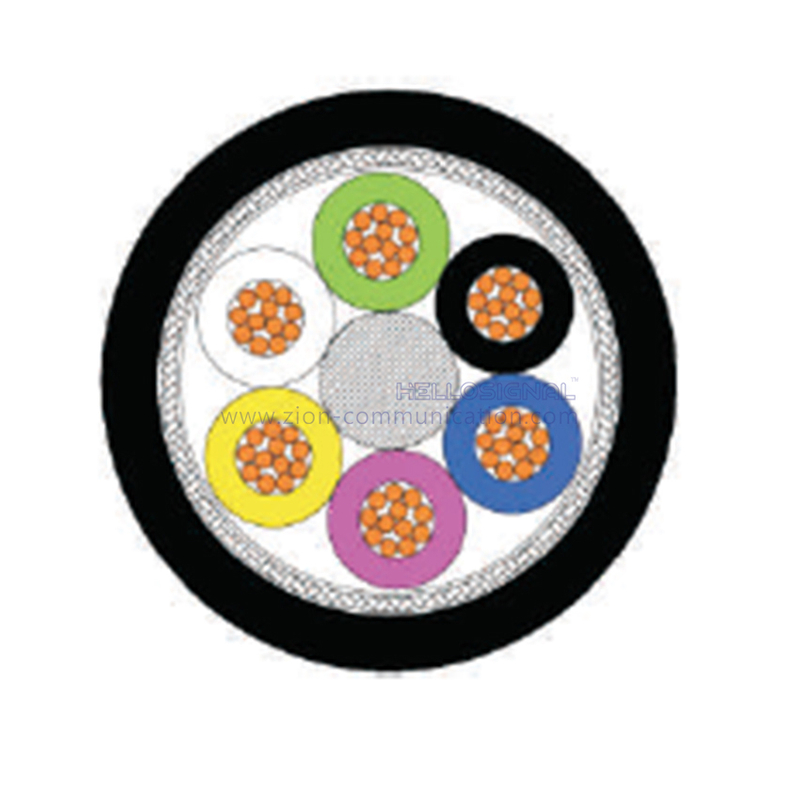

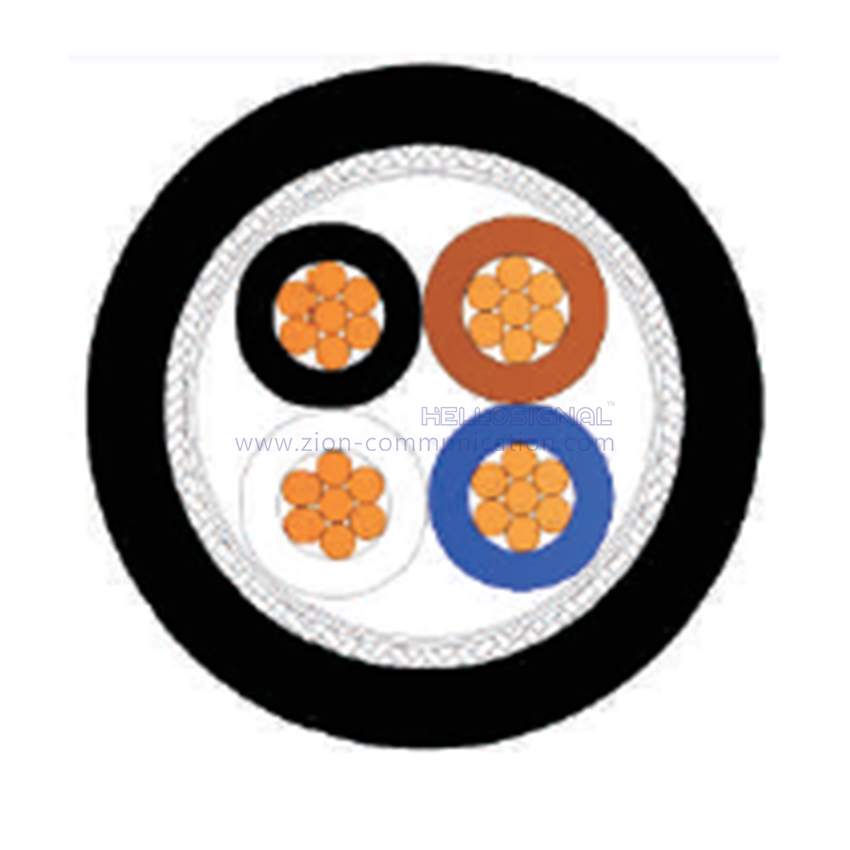

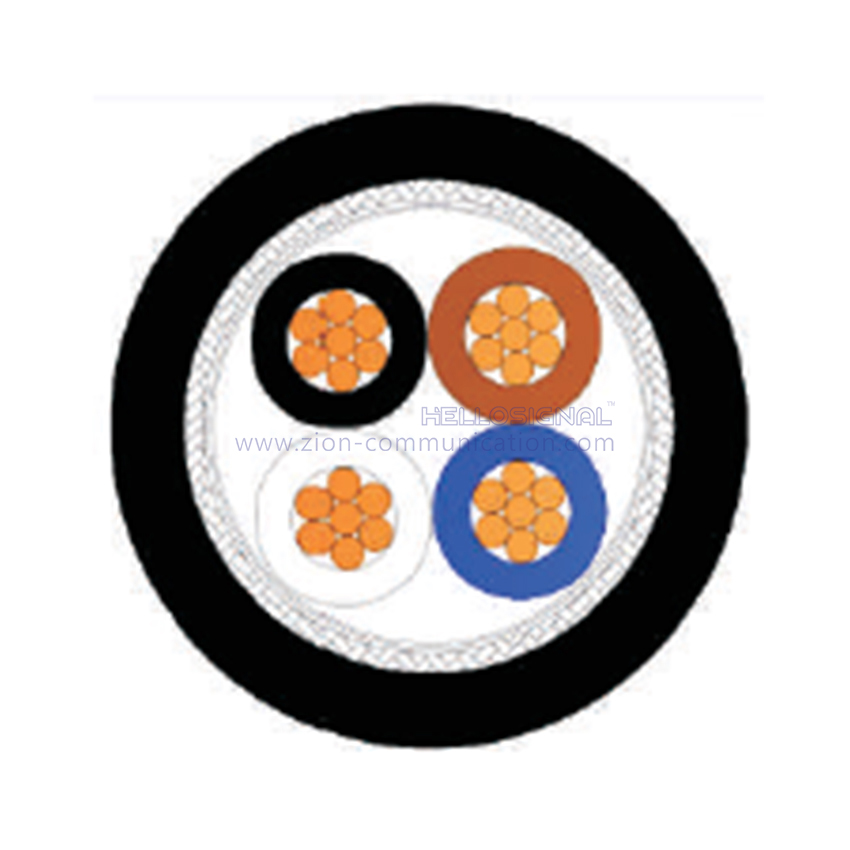

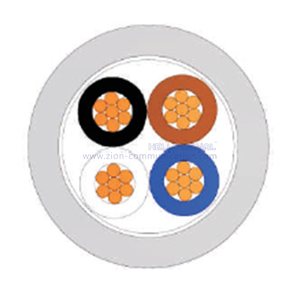

| ◆Cable Construction | UL/CSA 300V | ||||||||||
| Conductor: Stranded tinned copper wire | ● Bending radius | ||||||||||
| Insulation: Special polyolefin | 15x cable diameter | ||||||||||
| Filler: Kevlar(optional) | ● Insulation resistance | ||||||||||
| Cabling: PET (optional) | 23AWG≤76 ohm/km | ||||||||||
| Shield: AL/Mylar screen and TC braid(optional) | 24AWG≤95 ohm/km | ||||||||||
| Drain wire: Tinned copper wire(optional) | | ||||||||||
| Jacket: see attached list，black | | ||||||||||
| ◆Product Feature | |||||||||||
| Oil resistance,Easy flexible bending | |||||||||||
| Fire resistance meets IEC60332-1 | |||||||||||
| Cable can take larger puling force with Kevlar filler | |||||||||||
| Copper wire braiding to ensure good Anti-EMI performance | |||||||||||
| Special insulation material difficult to shirk back and melt while welding | |||||||||||
| | |||||||||||

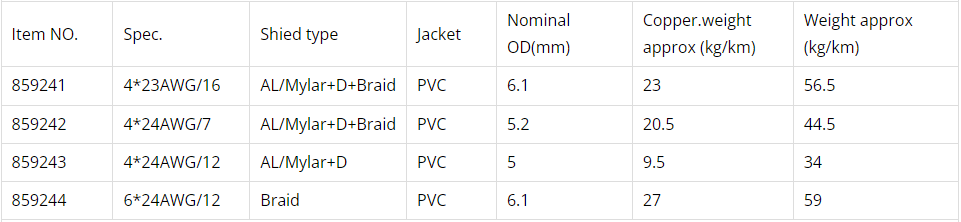

| Product List | |||||||||||
| Item NO. | Spec. | Shied type | Jacket | Nominal OD(mm) | Copper.weight approx (kg/km) | Weight approx (kg/km) | |||||
| 859241 | 4*23AWG/16 | AL/Mylar+D+Braid | PVC | 6.1 | 23 | 56.5 | |||||
| 859242 | 4*24AWG/7 | AL/Mylar+D+Braid | PVC | 5.2 | 20.5 | 44.5 | |||||
| 859243 | 4*24AWG/12 | AL/Mylar+D | PVC | 5 | 9.5 | 34 | |||||
| 859244 | 6*24AWG/12 | Braid | PVC | 6.1 | 27 | 59 | |||||
| | |||||||||||
| Order Informations: | |||||||||||
| Marking | HELLOSIGNAL Sensor cable-special PO insulation （fixed application） XXXFT/M | ||||||||||
| Package | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet | ||||||||||
| Delivery time | Normally 20-25 days after received the deposit. | ||||||||||
| More informations | please contact with us. | ||||||||||
| Brand | HELLOSIGNALTM OR OEM | ||||||||||
