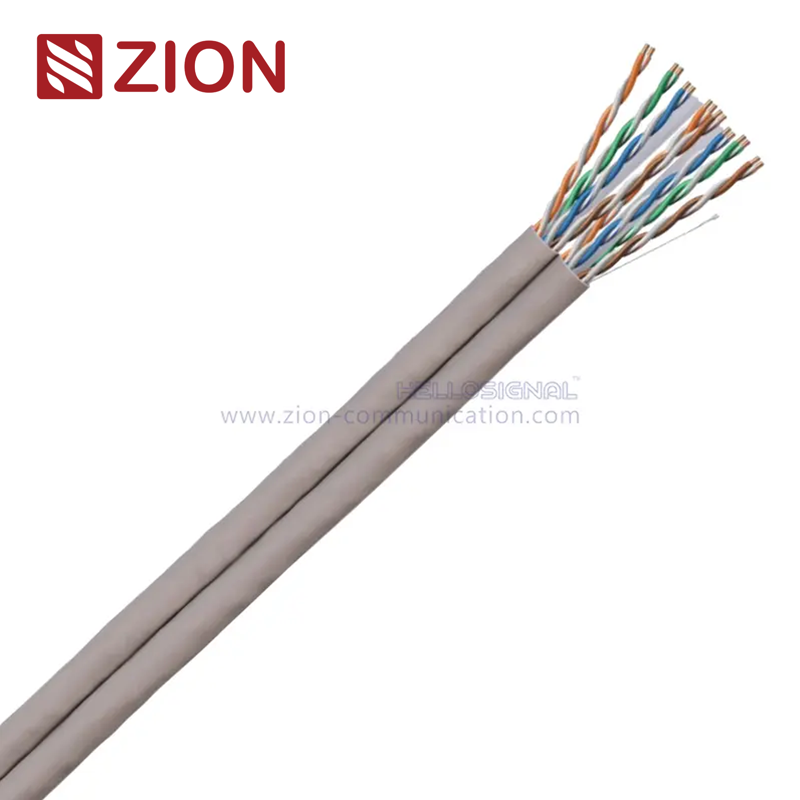

U/UTP Dual CAT 5E Twisted Pair Installation Cable

  • U/UTP Dual CAT 5E

  • hellosignal

Availability:

Specification

U/UTP  Dual CAT 5E Twisted Pair Installation Cable

Construction
Conductor:  24 AWG Solid Bare Copper
Pairs: 4 Pairs
Insulation: HDPE
Insulation Colors: Blue,White/Blue      ;   Orange,White/Orange
Green,White/Green;   Brown,White/Brown
Rip Cord: Cotton
Out Jacket:5.2×10.4±0.2 mm
 Application Electrical Characteristics
Suitable for structured premises cabling; Impedance 1 - 250MHz 100±15 Ohms
Transmission of digigal & analogue voice & data signals; Insulation Resistance >5000MΩ*KM
Especially suitable for all Class FA applications; Dielectric strength DC  2500V  2S
ISDN, Ethernet 10 Base-T,Fast Ethernet 100Base-T, Max.Conductor DC Resistance 20 9.5 Ohms/100m
Gigabit Ethernet 1000Base-T,10G Base-T.(IEEE 802.3);
Token Ring 4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s, Res. unbalance (%) Max. 2.5
 ATM 155Mbits/s.(IEEE 802.5). Pair to Ground Capacitance Unbalance 330 pF/100m
 Standard
IEC / ISO 61156-5 ; ISO / IEC 11801; ANSI / TIA568C.2 Transfer Impendance Max 10 mOhms/m  @100Mhz
 Order Information Installation temp. 0 - 50
PVC / CMX / CM / CMR / CMP / LSZH / LDPE Operation temp. -20 - 75
 Performance Characteristics
Frequency RL (Min.) Insertion
Loss(Max.)
Propagation
Delay (Max.)
Delay Skew(Max.) NEXT (Min.) PSNEXT (Min.) ELNEXT (Min.) PSELNEXT (Min.)
MHz dB dB/100m ns/100m ns/100m dB dB dB/100m dB/100m
1 20.0  2.2  570.0  45.0  65.0  62.0  61.0  61.0
4 23.0  4.2  552.0  45.0  56.0  53.0  48.0  48.0
10 25.0  6.5  545.0  45.0  50.0  47.0  41.0  41.0
16 25.0  8.4  543.0  45.0  47.0  44.0  36.0  36.0
20 25.0  9.3  542.0  45.0  45.0  42.0  34.0  34.0
31.25 23.6  11.6  540.0  45.0  42.0  39.0  31.0  31.0
62.5 21.5  17.0  539.0  45.0  38.0  35.0  25.0  25.0
100 20.1  22.0  538.0  45.0  35.0  32.0  21.0  21.0
Order Informations:
  Marking HELLOSIGNAL U/UTP Dual CAT 5E XXX   (or Per customer's request)
  Inner Package 305m/Spool,305m/Reel (or Per customer's request)
  Outer Package Color Box, Pallet (or Per customer's request)
  Delivery time Normally 25 days after received the deposit.
  Brand HELLOSIGNAL®    OR OEM
