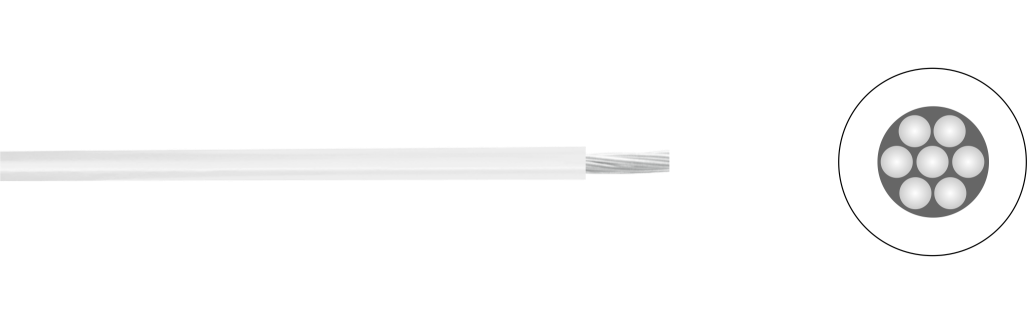

UL 3069 Silicone Rubber Cable

Silicone 200℃ Cable
UL 3069 Silicone Rubber Cable

Application:

Cable Standards:

The products are widely used in electrical wiring harnesses, sensing lines, PTC thermistors, coating
equipment, automotive internal connection lines, motors, lighting fixtures, electronic appliances,
voltage cabinets, high-voltage motors, and other fields.

Product Description:

J

High-strength silicone rubber，Tear-resistant

ZR

High flame retardant silicone rubber，meet FT1

TR

Ultra-fine tinned copper stranded wire (IEC 60228, category 6 standard / class 6)

Characteristics:

RoHS Compliant

UL 758 Appliance Wiring Material

Flame retardant grade: UL1581 (FT2)

The braid layer can prevent The influence of external force (friction, mechanical strong impact)
directly erodes the insulation layer of the wire, ensuring the normal use of the wire and cable

Protect the insulating layer and the protective layer from being directly or slightly damaged by
various light radiation, high temperature, humidity, and various chemicals, so that the insulating layer
has accelerated aging and shortens the life of the product

Core Identification:

Red

Yellow

Blue

White

Black

Brown

Green/Yellow

Dimensions:

Zion Code

AWG

Conductor Structure
 (mm²)

Insulation
Thickness
 (mm²)

Braided
Thickness
(mm)

Average O.D
(mm)

Ω
(20℃)

UL3069-20AWG

20

7x0.32

0.78

0.15

2.58

36.7

UL3069-22AWG

22

7x0.26

0.78

0.15

2.64

59.4

UL3069-24AWG

24

7x0.20

0.78

0.15

2.46

94.2

UL3069-26AWG

26

7x0.16

0.78

0.15

2.34

150
