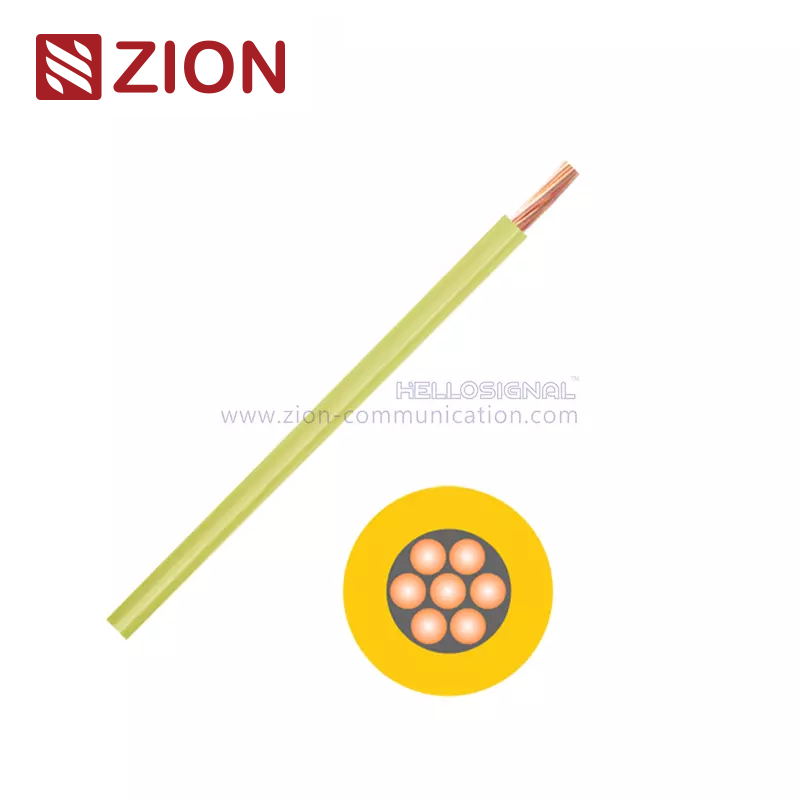

UL 3132 Silicone Rubber Cable

Silicone 200℃ Cable
UL 3132 Silicone Rubber Cable

Application:

Cable Standards:

The products are widely used in electrical wiring harnesses, sensing lines, PTC thermistors, coating
equipment, automotive internal connection lines, motors, lighting fixtures, electronic appliances,
voltage cabinets, high-voltage motors, and other fields.

Product Description:

J

Silicone rubber with high strength and good Tear-resistance

ZR

Silicone rubber with high flame retardant ,meeting FT1 / VW-1

TR

Ultra-fine tinned copper stranded wire (IEC 60228, category 6 standard / class 6)

Characteristics:

RoHS Compliant

High temperature resistance

UL 758 Appliance Wiring Material

Flame retardant grade: UL1581 (FT2)

Excellent environmental protection, odorless and non-toxic,

Excellent antithrombotic,biological inertia and electrical insulation properties

Silicone rubber is a sort of insulation material with good flexibility and excellent bending
performance (It is easier to strip off from the conductor)

Core Identification:

Red

Yellow

Blue

White

Black

Brown

Green/Yellow

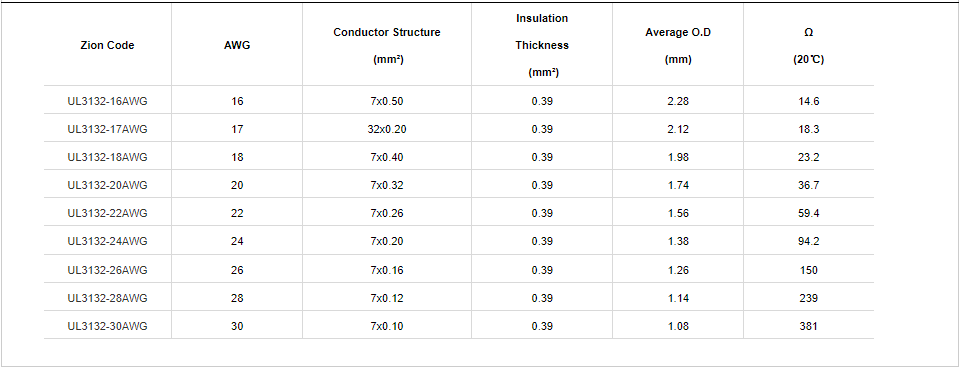

Dimensions:

Zion Code

AWG

Conductor Structure
 (mm²)

Insulation
Thickness
 (mm²)

Average O.D
(mm)

Ω
(20℃)

UL3132-16AWG

16

7x0.50

0.39

2.28

14.6

UL3132-17AWG

17

32x0.20

0.39

2.12

18.3

UL3132-18AWG

18

7x0.40

0.39

1.98

23.2

UL3132-20AWG

20

7x0.32

0.39

1.74

36.7

UL3132-22AWG

22

7x0.26

0.39

1.56

59.4

UL3132-24AWG

24

7x0.20

0.39

1.38

94.2

UL3132-26AWG

26

7x0.16

0.39

1.26

150

UL3132-28AWG

28

7x0.12

0.39

1.14

239

UL3132-30AWG

30

7x0.10

0.39

1.08

381
