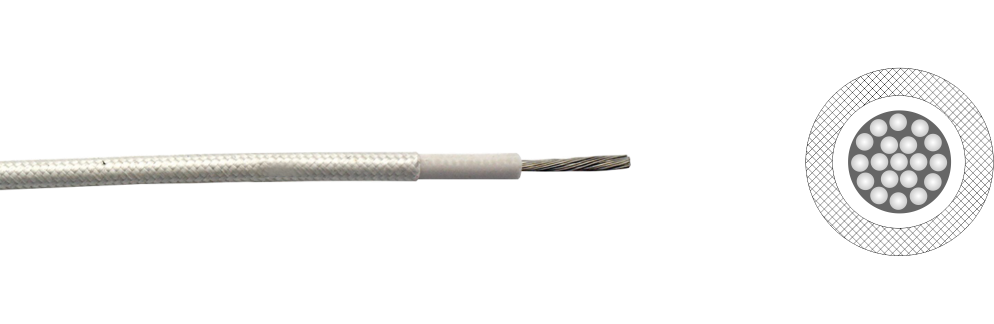

UL SF-2 Silicone and fiberglass Cable

Silicone 200℃ Cable
UL SF-2 Silicone and fiberglass Cable

Application:

Cable Standards:

For internal high temperature environment electrical appliance.

Product Description:

Conductors

Multipiece or single tin-coated copper wire

Insulation

Silicone Rubber

Characteristics:

Temperature Range

-60℃~＋200℃

Rated Voltage

300V

Dimensions:

Zion Code

AWG

Nominal
Area
 (mm²)

Structure of
Conductor
No./mm

Insulation
Thickness
(mm)

FiberGlass
Thickness              (mm)

Overall
Diameter
(mm)

Conductor Resistance
 at 20℃Max
Ω/km

SF-2-18AWG

18

0.823

26/0.20&7/0.39

0.76

0.15

3.04

23.2

SF-2-16AWG

16

1.31

42/0.2&28/0.25&7/0.495

0.76

0.2

3.45

14.6

SF-2-14AWG

14

2.08

41/0.254&7/0.62

0.76

0.2

3.85

8.96
