UL 3122 Silicone and fiberglass Cable

Silicone 200℃ Cable
UL 3122 Silicone and fiberglass Cable

Application:

Cable Standards:

For high temperature environment equipment such as household appliance,lamps and lanterns,combustion equipment.

Product Description:

Conductors

Nickel-coated,Tin-coated silver-coated copper wire

Insulation

Silicone Rubber

Characteristics:

Temperature Range

-60℃~＋200℃

Rated Voltage

300V

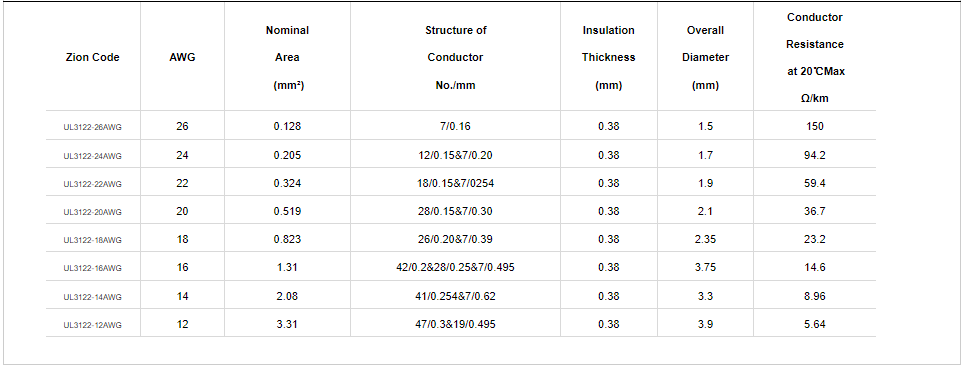

Dimensions:

Zion Code

AWG

Nominal
Area
 (mm²)

Structure of
Conductor
No./mm

Insulation
Thickness
(mm)

Overall
Diameter
(mm)

Conductor Resistance
 at 20℃Max
Ω/km

UL3122-26AWG

26

0.128

7/0.16

0.38

1.5

150

UL3122-24AWG

24

0.205

12/0.15&7/0.20

0.38

1.7

94.2

UL3122-22AWG

22

0.324

18/0.15&7/0254

0.38

1.9

59.4

UL3122-20AWG

20

0.519

28/0.15&7/0.30

0.38

2.1

36.7

UL3122-18AWG

18

0.823

26/0.20&7/0.39

0.38

2.35

23.2

UL3122-16AWG

16

1.31

42/0.2&28/0.25&7/0.495

0.38

3.75

14.6

UL3122-14AWG

14

2.08

41/0.254&7/0.62

0.38

3.3

8.96

UL3122-12AWG

12

3.31

47/0.3&19/0.495

0.38

3.9

5.64
