Author: Site Editor Publish Time: 28-05-2024 Origin: Site

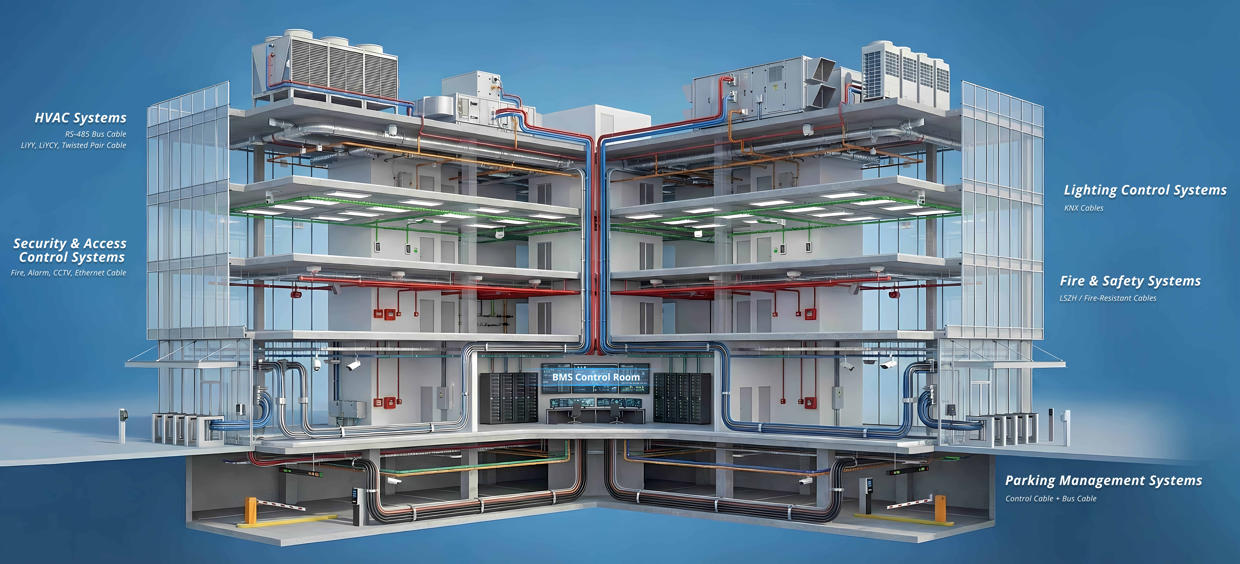

BMS (Building Management System) cables are specialized cables that interconnect various
components within a building management system.
All PVC, LSZH(FRNC), and LSF sheathed multi-conductor cables are suitable for Building
Management Systems (BMS), including Sound, Audio, Security, Safety, Control, and
Instrumentation systems.

Data Transmission:
Purpose: Carry data signals between sensors, controllers, and the central BMS.
Importance: Enables the monitoring and controlling of various building systems, such as HVAC, lighting, and security.
Power Distribution:
Purpose: Supply power to BMS components, including sensors, controllers, and actuators.
Importance: Ensures all BMS components are operational and communicate effectively.
Communication:
Purpose: Facilitate communication between the BMS and external systems or devices, such as fire alarm systems, access control systems, and energy management systems.
Importance: Allows for integrated building management and coordinated responses to events.
https://www.zion-communication.com/network-cable-products-catalog.html

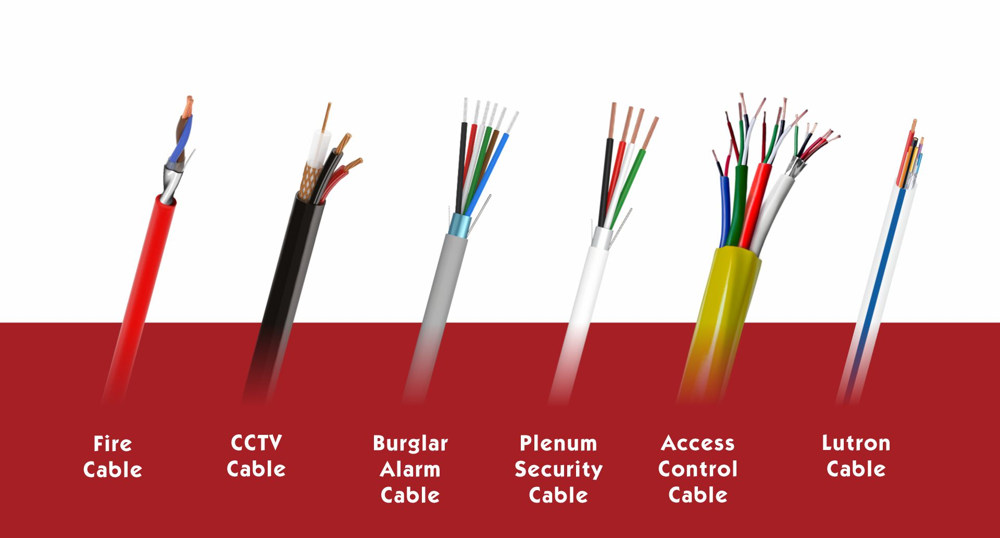

Fire, Security & alarm cables: Fire resistant/alarm cables, CCTV surveillance cables,
Bulgar alarm cables, Plenum security cables, Access control cables, Lutron Cables
https://www.zion-communication.com/Security-Alarm-Safety-Cable.html

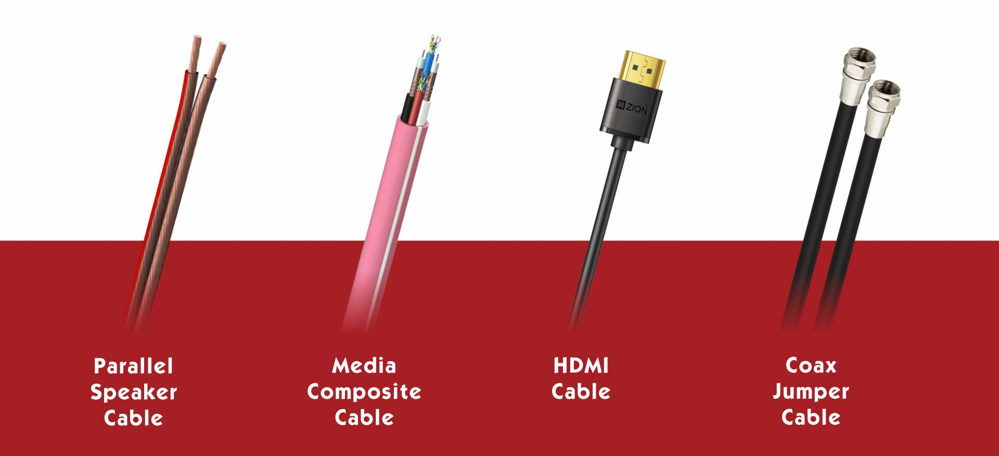

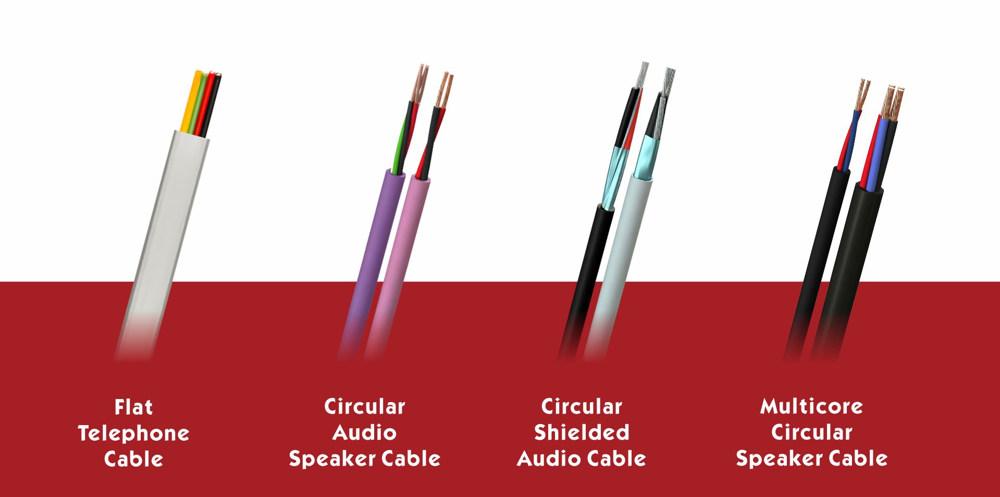

Voice, Audio & Video Cables: Circular Audio Speaker cable, circular shielded audio cable,
multicore circular speaker cable, parallel speaker cable, media composite cable, 75-ohm coaxial cables
https://www.zion-communication.com/Audio-and-Video-Cable-products-catalog.html
https://www.zion-communication.com/catv-coaxial-cable-products-catalog.html

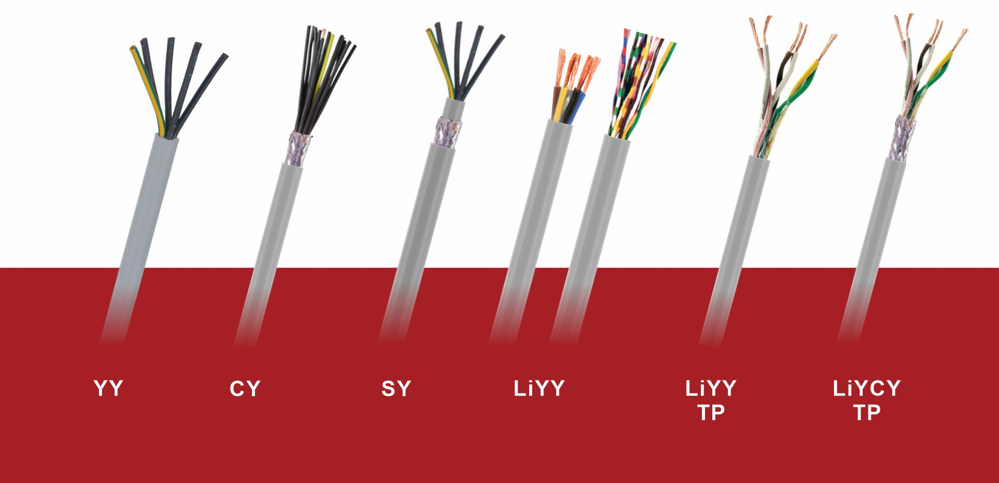

Control Cable: LiYY, LiYCY, LiYY TP, LiYCY TP control cables
https://www.zion-communication.com/Flex-Control-Cable-Data-Cable.htm
Type | Conductor | Insulation | Armouring | Sheath | voltage |
YY | BC Class 5 | PVC/LSZH | \ | PVC/LSZH | 300/500 V |
CY | BC Class 5 | PVC/LSZH | Tinned Copper Wire Braid | PVC/LSZH | 300/500 V |
SY | BC Class 5 | PVC/LSZH | Galvanised Steel Wire Armour | PVC/LSZH | 300/500 V |
LiYY | BC Class 5 | PVC/LSZH | \ | PVC/LSZH | 250/250 V |
LiYCY | BC Class 5 | PVC/LSZH | Tinned Copper Wire Braid | PVC/LSZH | 250/250 V |
LiYY TP | BC Class 5 | PVC/LSZH Twisted Pair | \ | PVC/LSZH | 250/250 V |
LiYCY TP | BC Class 5 | PVC/LSZH Twisted Pair | Tinned Copper Wire Braid | PVC/LSZH | 250/250 V |
Power cable: H05V-K cable, H07V-K cable,H03VV-F cable,H05VV-F cable,H03VVH2-F cable,
CYKY-J cable, CYKY-O cable, CYKYlo cable, KNX cable
https://www.zion-communication.com/General-Power-Cable.html
Type | Pic | Conductor | Insulation | Sheath | voltage |
H05V-K | Stranded BC Class 5 | PVC | PVC | 300/500 V | |
H07V-K | ![]() | Stranded BC Class 5 | PVC | PVC | 450/750 V |
H03VV-F | ![]() | Stranded BC Class 5 | PVC | PVC | 300/300 V |
H05VV-F | ![]() | Stranded BC Class 5 | PVC | PVC | 300/500 V |
H03VVH2-F | ![]() | Stranded BC Class 5 | PVC | PVC | 300/300 V |
Twin & Earth | ![]() | Copper | PVC | PVC | 300/500 V |
CYKY-J, VYKY-O | ![]() | Copper | PVC | PVC | 450/750 V |
CYKYLo | ![]() | Copper | PVC | PVC | 450/750 V |
https://www.zion-communication.com/KNX-Cable-pl3189640.html
HVAC Systems:
Function: Connect thermostats, sensors, and controllers to manage heating, ventilation, and air conditioning
Lighting Control:
Function: Integrate lighting systems with the BMS for automated control and energy savings.
Security Systems:
Function: Connect access control systems, surveillance cameras, and alarms to the BMS.
Fire Alarm Systems:
Function: Ensure fire detection and alarm systems are integrated with the BMS for coordinated emergency response.
Energy Management:
Function: Monitor and control energy usage throughout the building to optimize efficiency.
Voltage and Current Rating:
Ensure the cable can handle the maximum voltage and current levels of your application.
Temperature Range:
Choose a cable that can operate within the expected temperature range of your system.
Flexibility:
Depending on the installation requirements, select cables that offer the necessary flexibility and bend radius.
Shielding and Insulation:
Depending on the environment and potential for electrical interference, select cables with appropriate shielding and insulation.
Connector Compatibility:
Ensure the cable connectors are compatible with the BMS and other components.
Certification and Standards:
Look for cables that meet relevant industry standards and certifications for safety and performance.
