What is PH30 Cable? Features, Applications, and Solutions

■ What is PH30 Cable? Features, Applications, and Solutions from ZION Communication

When keeping fire out is a must, PH30 wire ensures vital fire resistance to safeguard lives and infrastructure. Be it a hospital, a commercial complex, and/or a transport hub, fire safety systems for any of these types of projects require a dependable PH30 fire-protected wire supplier. ZION Communication emerges as a reliable and trusted manufacturer and supplier, both locally and globally, with certified and specifiable PH30 fire cables to meet the most demanding safety standards.

■ What is PH30 Cable?

PH30 cable refers to a type of circuit that is active at least for 30 minutes during the time of burn. PH means test heat (Pruefheiss in German), and 30 is the time to keep electrical function under fire and mechanical stress.

Therefore, in the case of asking: For how long does PH30 control the power of fire-resistant electric cable? It implies that the cable has a functional capacity for them, which is 30 minutes, useful for emergency evacuation and extension of time for fire response management.

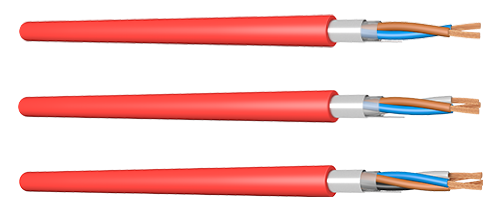

■ Cable with PH30 Fire Resistance Specification

ZION Communication is a manufacturer of PH30 fire cables, and the result is the best quality and advanced method of production. Fire-resistant cables are one of the primary elements of new and retrofitting projects across a broad industy.

Our product highlights:

• Reliable circuit integrity for high/medium voltage (≥30 min) under fire conditions

• Emission of low smoke and no halogen (HSZH) for flammability

• Mica tape insulation + flame-retardant electric wire

• Shielded or unshielded cables are available

• Additional third-party certifications assistance available (IEC, EN, DIN, etc.)

• Creation of a tailor-made project and OEM orders

We assure you that PH30 cable datasheet given as a part of our technical documentation remains a great benefit of your design and bidding processes.

■ Examples of PH30 Fire Alarm Cable in Action

The PH30 fire alarm cable from ZION Communication is employed where safety is a huge concern:

• Fire alarm and detection systems

• Backup lighting wires

• Voice evacuation systems

• Smoke extraction fans

• Automated control.

• Fully air conditioning.

• Sprinkler and HVAC control.

It is recommended for:

• Contraptors, stations, and tunnels

• Malls and stadiums alike

• Healthcare settings and skyscrapers

• Data rooms and fuel cell rooms

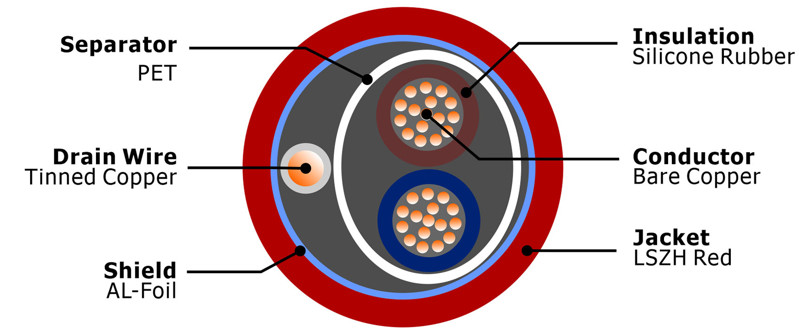

■ PH30 Cable Specification & Structure

2 cores:  ● ●

3 cores:  ● ● ●

4 cores:  ● ● ● ●

■ PH30 Fire Rated Cable vs PH60 / PH90

PH30 range of fire-rated cable is one of the fire-retardant cables used in emergency conditions. In critical environments that require longer periods for evacuation or system protection, the PH30 duration is too short.

■ Prices of PH30 Cables and Global Supply in Different Countries

PH30 cable price comes from:

• The type of cable (UIL, unshielded twisted pair, and so on).

• The conductor size (SWG) (e.g., 2.5mm², 4mm²).

• Materials for outer sheath and armor.

• Incurrence of international standards compliance.

• Criteria for delivery, local adjacencies, intercontinental (Africa, Asia, Middle East, Europe.

ZION Communication offers the most attractive prices for:

• Volume OEM orders,

• Tender and bidding,

• Distributors are agent,

ZION Communication also offers international shipping services, for instance, Africa, Southeast Asia, the Middle East, and Europe.

■ Why be PH30 Fire Cable Manufacturer of the ZION Communication?

What makes ZION Communication a forerunner in fire-resistant cable from China are:

• Over 20 years of high caliber cable manufacture.

• New factories authentically tested for ISO, RoHS, CE, and CPR standards.

• Speedy production and short lead-time.

• Undertaking your private label/OEM branding.

• Engineers and contractors need technical consultancy.

• English, Spanish, Arabic, and Chinese are the languages of our world client service.

Along with our team of specialists, you will receive the precise product you need, on time, and at a price that works for you.

■ Enquire about the PH30 Docs Sheet now or your top gets a Quote.

Do you still have the mystery of PH30 cable or are you trying to pick up the right PH30 fireproof wire specification to your system? Get in touch with ZION Communication right away! We will help you find the perfect option and provide you with our PH30 cable datasheet and quotation that will surely be in accordance with your project.
