0.1mm Copper Clad Aluminum Wire

The CCA wire is made up by using pure aluminum wire as core. It adopts the advanced coating and welding technology in the world. Plating copper concentrically on the concentric line of aluminum, realizes metallurgy combination between copper coating and aluminum. Threr will be no falking off during the heat treatment or mechanical workout. the CCA is a best new bimetal wire instead of pure copper wire. Producible scope:t the diameter is from Φ01.0mm to Φ3.00mm.

Product Fearures: shiny & uniformity unlform copper layer, excellent electrical conductivity, bear bending, good tensile strength, excellent welding and corrosion, with the great light specific gravity, and savings resources of copper.
Main Application: flexible coaxial cable, a variety of audio and video cable,vehicle single cable, network cable,data transmission cables and so on. Can be used in the above cables: cable conductor, braiding and shielding, the single wire conductor and other conductors.

  • 0.1mm Copper Clad Aluminum Wire
  • HELLOSIGNALTM OR OEM
  • 7000001
  • CE/ROHS/ISO9001/SGS
  • 0.1mm
  • wooden tray, plastic reel, or according to the clients' request
  • 500kgs
  • Normally 25 days after received the deposit.
  • NINGBO OR SHANGHAI
  • T/T,L/C
Quantity:







0.1mm Copper Clad Aluminum Wire






Construction Parameters:

 Nomial diameter Φ /mm

0.1mm

 Diameter difference ±mm

±0.003mm

 Copper content %

27 %

 Density (20 ) gcm3

3.3 gcm3

 Intensity test of the soft state N

0.9 N

 Tensile strength of soft-stateNmm2

120 Nmm2

 Hard measured intensity N

2.1 N

 Tensile strength of hard-stateNmm2

270 Nmm2







Electrical Characteristics:

  Resistivity (20) Ω.kmmm2

27.5 Ω.kmmm2


  Measured resistance (20 ) Ωkm

3501Ωkm

  Conductivity (20 ) %

63 %


  Soft-state elongstion%

8 %

  Hard elongation%

10 %

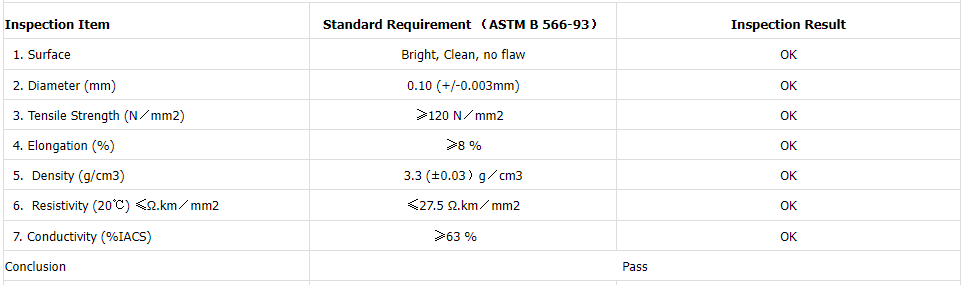

Product Inspection:

Inspection Item

Standard Requirement ASTM B 566-93

Inspection Result

  1. Surface

Bright, Clean, no flaw

OK

  2. Diameter (mm)

0.10 (+/-0.003mm)

OK

  3. Tensile Strength (Nmm2)

120 Nmm2

OK

  4. Elongation (%)

8 %

OK

  5.  Density (g/cm3)

3.3 (±0.03gcm3

OK

  6.  Resistivity (20) Ω.kmmm2

27.5 Ω.kmmm2

OK

  7. Conductivity (%IACS)

63 %

OK

Conclusion

Pass




Order Informations:

  Technical Parameter

based on customer’s requirements

  Package

Please advise the spool size or your special requirements

  Delivery time

Normally 20-25 days after received the deposit.

  Application

braid shielding & cable conductor (single or stranded) for coaxial cable, power cable, signal cable, network cable, data cable, enameled wire etc

  More informations

please contact with us.
