Why 5G-Advanced FWA Needs a Better Installation Kit
5G-Advanced fixed wireless access can shorten the distance between a high-capacity mobile network and a home, office, retail site, temporary facility or remote branch. The customer-side Ethernet path still needs reliable cable, termination, power delivery, weather protection and test records.
3GPP describes Release 18 as the first 5G-Advanced release, while Release 19 continues the 5G-Advanced phase. Those mobile-system releases do not remove the need for a well-engineered outdoor Ethernet installation between the CPE and indoor network equipment.
Reference Architecture

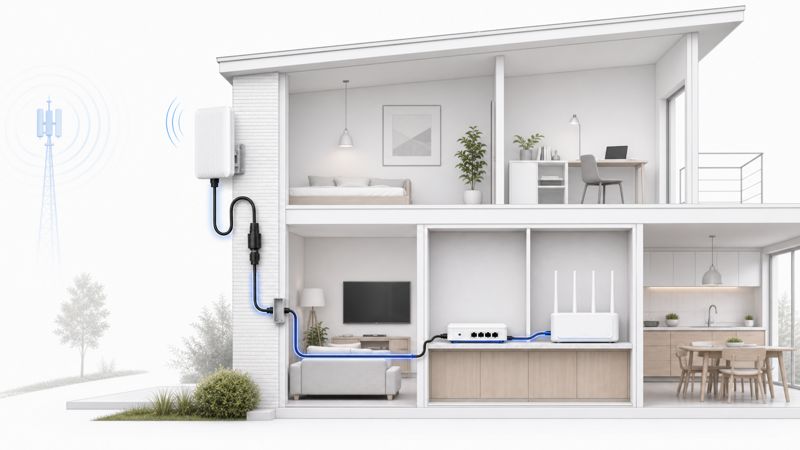

The kit supports a typical single-CPE path: outdoor 5G-Advanced CPE, outdoor-rated Cat6A link, protected RJ45 termination or coupling point, building entry, indoor Cat6A transition, and project-selected PoE and routing equipment.
A pre-terminated outdoor patch cord can reduce field termination work on short and accessible routes. Bulk cable with field-installed connectors is usually more practical when the route passes through conduit, glands or narrow penetrations.
ZION Product Building Blocks

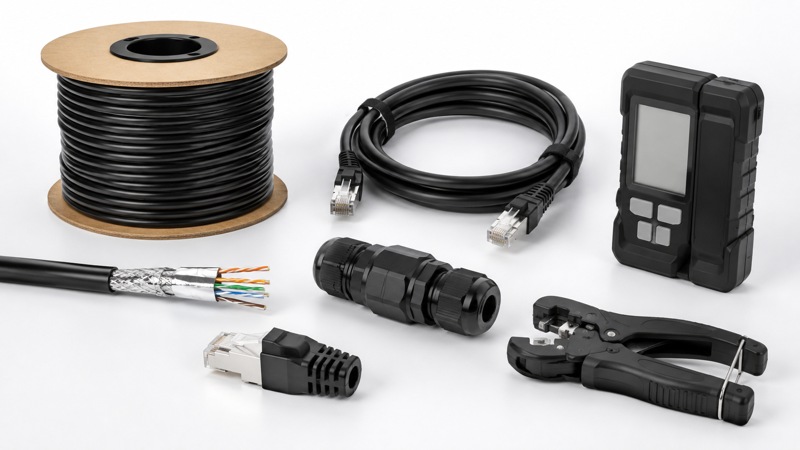

The passive package can be configured from documented ZION and HELLOSIGNAL outdoor Ethernet products, shield-compatible RJ45 connectivity and installation tools.
| Building Block | Product Direction | Project Inputs |
|---|---|---|
| Standard outdoor Cat6A link cable | NO.7112321 Outdoor U/FTP Cat6A 23AWG PE Ethernet Cable | Route length, cable OD, shield continuity, reel length, connector match and building-entry method. |
| Wet-route and direct-burial cable option | NO.7112317 F/UTP Cat6A Jelly-Filled Double-PE Outdoor Direct-Burial Ethernet Cable | Wet duct, underground, burial method, transition enclosure, temperature, PoE load and mechanical protection. |
| Pre-terminated outdoor patch cord option | ZION S/FTP Cat6A SOD PE RJ45 Patch Cord | Length, CPE gland fit, bend path, strain relief, protected transition point and indoor lead. |
| Shield-compatible RJ45 termination and coupling | HELLOSIGNAL Free Pressure Toolless Plug range and HELLOSIGNAL Ethernet/RJ45 Couplers | Cable conductor, OD, wiring scheme, shield-contact method, enclosure and sealing requirement. |
Three Configurable Kit Versions
The kit should be selected by route and installation method. These versions are sourcing frameworks, not universal fixed SKUs.
| Kit Version | Best-Fit Route | Passive Core | Project-Configured Fields |
|---|---|---|---|
| Pre-Terminated Outdoor Kit | Short wall, pole or rooftop link with accessible protected transition. | S/FTP Cat6A PE RJ45 patch cord, compatible coupler if required, cable management and labels. | Cord length, CPE gland fit, protected enclosure, entry seal and indoor patch lead. |
| Field-Terminated Outdoor Kit | Conduit or building-entry route where connector passage is restricted. | Outdoor U/FTP Cat6A bulk cable, shielded Cat6A plugs or jacks, tools and labels. | Reel length, connector SKU, gland range, route hardware and test level. |
| Wet-Route / Direct-Burial Kit | Underground duct, direct burial or recurring wet-route exposure. | Jelly-filled double-PE Cat6A cable, compatible shielded terminations, tools and labels. | Burial or duct method, mechanical protection, transition enclosure, bonding and surge boundary. |
How to Select the Right Kit
Start with the route. Record total length, outdoor exposure, conduit fill, bend locations, penetration diameter and service loops. Classify each section as indoor, outdoor exposed, ducted, wet, underground or direct-burial.
Confirm the CPE manual, RJ45 gland geometry, maximum cable OD, supported PoE method, power demand and permitted channel length.
Treat the shielded cable as a system across plug, jack, coupler, cabinet and building grounding interface.
Confirm conductor gauge, DC resistance, connector rating, channel length, ambient temperature, bundling and active equipment class.
List exposed interfaces including CPE gland, coupler, enclosure, drip loop, building entry and surge-protection point.
Installation Sequence and Acceptance Checks
A repeatable kit should include a repeatable installation record. The installer verifies the route, cable type, CPE manual, power design and safety method before pulling or terminating cable.
- Inspect the cable reel or pre-terminated cord for damage.
- Route the cable without exceeding pulling tension or bend radius.
- Provide strain relief near the CPE without loading the RJ45 interface.
- Seal the CPE interface, transition point and building entry using project-approved components.
- Test the link, energize PoE and confirm the CPE remains stable under operating load.
- Record cable ID, port ID, test result, route photos and installer information.
| Acceptance Area | Checks |
|---|---|
| Visual and mechanical | Correct cable construction, no jacket damage, bend radius maintained, sealed outdoor interfaces, protected couplers and matching labels. |
| Electrical and data | Wire map, shield continuity where required, channel performance, PoE voltage, delivered power and stable link negotiation. |
| Documentation | Cable and connector SKUs, route length, service loops, test files and photos of CPE interface, drip loop and building entry. |
FAQ
Does this kit include a 5G-Advanced outdoor CPE?
No. The kit covers the passive installation and protection layer around a customer-selected CPE. The radio, modem and service subscription are selected by the project.
Can one kit work with every outdoor CPE?
The architecture is reusable, but the final BOM must match the CPE connector, gland, PoE, cable OD and route requirements.
Is Cat6A necessary if the CPE has a lower-speed Ethernet port?
Cat6A can provide a standardized shield-capable platform, but the correct choice depends on distance, power, environment, connector compatibility and total cost.
Should every FWA CPE link use jelly-filled double-PE cable?
No. Use jelly-filled double-PE cable for wet-route, underground or direct-burial conditions that justify the construction.
Can an RJ45 coupler be left outdoors?
Only when the complete assembled connection has the required environmental protection. A standard inline coupler should be placed in a suitable enclosure or sealed housing.
Build a Standard FWA CPE Installation BOM with ZION
Send the CPE model, route classification, cable length, PoE requirement, connector preference and environmental conditions. ZION can configure a passive installation package using documented outdoor Cat6A cable and compatible HELLOSIGNAL connectivity components.
