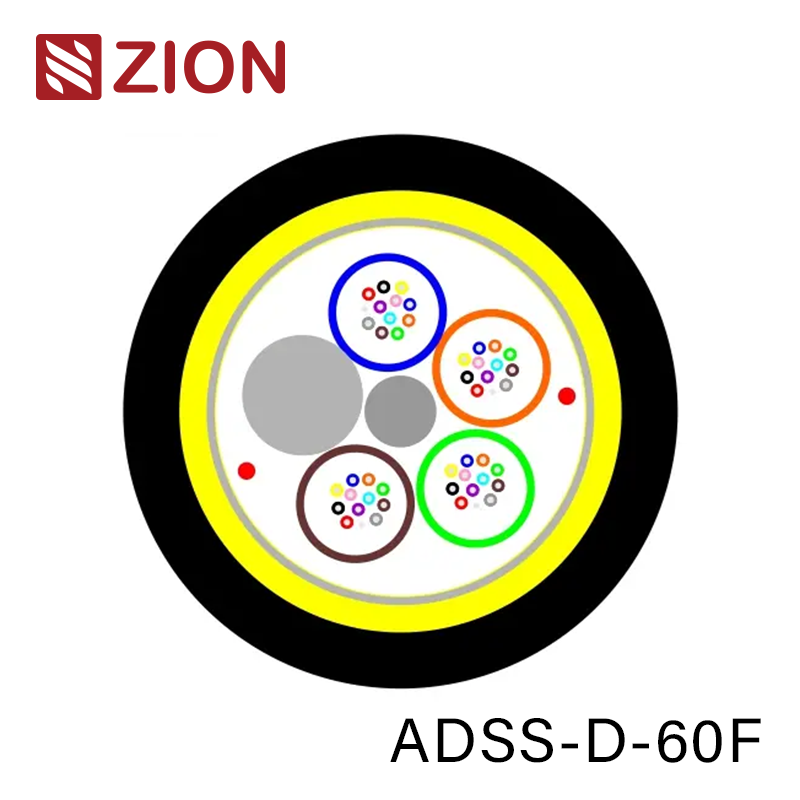

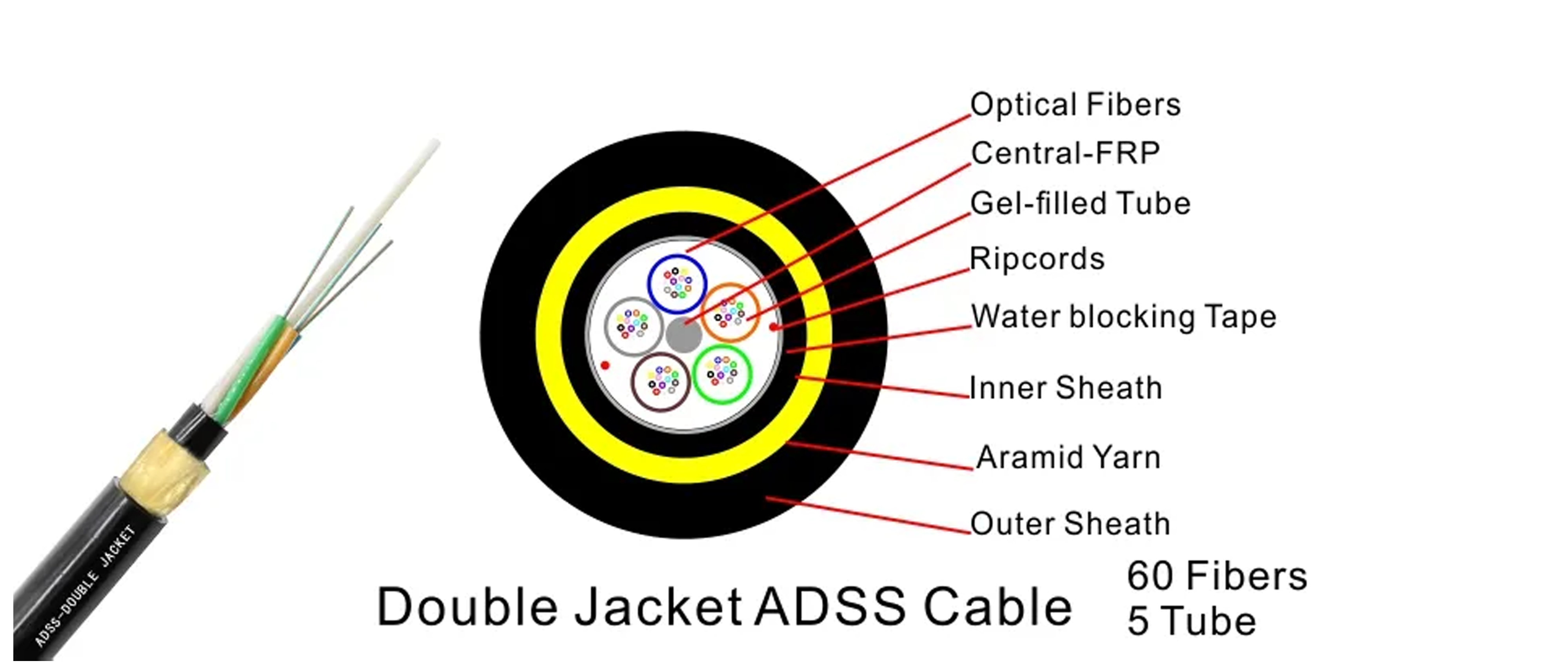

ADSS Cable 60F,fibra óptica Span 150m,All Dielectric self-supporting Aerial,Loose Multi-tube,Monomode óptico para,Aramid yarn,inner water blocking tape,Double Jacket 15mm PE

  • ADSS-D-inner water blocking tape
  • N/M
  • N/M
  • All Dielectric self-supporting
  • 5 Tube
  • ISO9001
  • 2km/Spool
  • Wooden Spool ,Φ1200*750mm
  • 100km
  • 5-25 Days
  • NINGBO CHINA
  • 30%TT as deposit,70%Balance before shipping.

Product Description

10.2-2

Product Director : James Xu

Email:  james@zion-communication.com


Technical data:

Numbers of fibers: 4-24F;24-36F;48-60F(5Tubes+1Central FRP)

Fiber type: Single mode G.652.D/ Monomode

Strength Member: Aramid Yard

Loose Tube:  2.1mm-3.0mmPBT

Filler Rope:  FRP

Water Blocking Layer(Material): Waterproof GEL-filled/Water Blocking tape

Additional Strength Member(Material):Aramid yarn

Outer Sheath:  PE/AT jacket

Cable Diameter(±0.2mm): 11.5mm-18mm

Cable Weight(±10.0kg/km): 100-230kg

Attenuation coefficient :  @ 1310nm≤0.35dB ;   @ 1550nm ≤0.2dB

Min. bending radius Without Tension: 10.0×Cable-φ

Min. bending radius Under Maximum Tension: 20.0×Cable-φ


Description:

ADSS cable is loose tube stranded. Fiber, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tubes(and fillers) are stranded around a FRP(Fiber Reinforced Plastic ) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, it is covered with thin PE(polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT(anti-tracking) outer sheath.


ADSS CABLE PLACE ORDER INFORMATION:


Order Information:
1 2 3 4 5 6 7 8
Fiber Type Jacket Type Out Cable Dia. Fiber Count

Aramid Yarn Details

Important

Span Length/spool

RTS

Important

G.652.D PE 10mm-12mm 4-12 Numbers Types 100m 4km 10
OS2 9/125 AT 12-14mm 24-36
20 K49-2840D 150m 3km 20
OM1 62.5/125 PE/Flame retardant 14-16mm 36-48 34 K29-3000D 150-250m 2km 30
OM2 50/125 AT/Flame retardant 17-18mm 48-60
8050D 250-750m 1km 40-100


adss data 3

adss data

adss data 2



Fibre Colors

No.

1

2

3

4

5

6

Color

Blue

Orange

Green

Brown

Gray

White

No.

7

8

9

10

11

12

Color

Red

Black

Yellow

Violet

Pink

Aqua



Single mode optical fiber (ITU-T Rec. G.652.D)

Item

Specification

Fiber type

Single mode

Fiber material

Doped silica

Attenuation coefficient

@ 1310 nm

@ 1383 nm

@ 1550 nm

@ 1625 nm



£ 0.35 dB/km

£ 0.32 dB/km

£ 0.21 dB/km

£ 0.24 dB/km

Point discontinuity

£ 0.05 dB

Cable cut-off wavelength

£ 1260 nm

Zero-dispersion wavelength

1300 ~ 1324 nm

Zero-dispersion slope

£ 0.092 ps/(nm2.km)

Chromatic dispersion

@ 1288 ~ 1339 nm

@ 1271 ~ 1360 nm

@ 1550 nm

@ 1625 nm

£3.5 ps/(nm. km)

£5.3 ps/(nm. km)

£18 ps/(nm. km)

£22 ps/(nm. km)

PMDQ (Quadrature average*)

£0.2 ps/km1/2

Mode field diameter @ 1310 nm

9.2±0.4 um

Core / Clad concentricity error

£ 0.5 um

Cladding diameter

125.0 ± 0.7 um

Cladding non-circularity

£1.0%

Primary coating diameter

245 ± 10 um

Proof test level

100 kpsi (=0.69 Gpa), 1%

Temperature dependence

0oC~ +70oC @ 1310 & 1550nm

£ 0.1 dB/km


Online Service:


James Xu (Product Director)

Wechat: xyy71630

Email:james@zion-communication.com


More Products Please Download……

DOWNLOAD FIBER OPTIC CABLE CATALOG

DOWNLOAD ALL THE CATALOG


    james xu wechat_副本

    Scan code Add James'  Wechat
