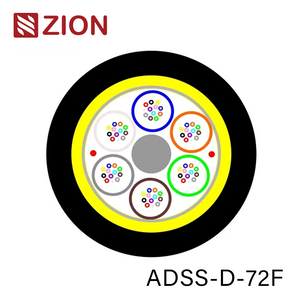

CABO OPTICO CFOA-DDR AUTOSUSTENTADO PARA VÃO ATÉ

■ Characteristics:

Fibra óptica: UV fibra G.652.D;@1310nm ≤0.35dB/km;@1550nm ≤0.2dB/km;

Compuesto de llenado de tubos: Bloqueo de agua y gel tirotrófico a prueba de humedad

Tubo suelto: 2.0 mm PBT

Relleno FRP: 1.8 mm LDPE / PP

Elemento de fuerza central de varillas: 1.8 mm GFRP

Cinta de bloqueo de agua: 0.28mm de espesor

Aglutinante: Hilos de poliéster de 2 hilos

Cuerdas: 2 hilos

Elemento de fuerza periférico totalmente dieléctrico: aramida bajo pedido KEVLAR  K49-3000D

Chaqueta externa: inner 1.0mm,outer 1.6mm thickness HDPE

Diámetro de salida del cable: 10.7±0.5mm

Peso del cable: 175±15kg

Longitud Cable / Carrete: 3km or 4km (2% tolerance in more)

Rango de temperatura: -20~+65℃

■ Technical data:

Numbers of fibers: 4-72F;74-96F;98-144F

Fiber type: Single mode G.652.D/ Monomode

Strength Member: Aramid Yard

Loose Tube:  2.1mm-3.0mmPBT

Filler Rope:  FRP

Water Blocking Layer（Material）: Waterproof GEL-filled/Water Blocking tape

Additional Strength Member（Material）：Aramid yarn

Outer Sheath:  PE/AT jacket

Cable Diameter(±0.2mm): 11.5mm-18mm

Cable Weight(±10.0kg/km): 125-250kg

Attenuation coefficient :  @ 1310nm≤0.35dB ;   @ 1550nm ≤0.2dB

Min. bending radius Without Tension: 10.0×Cable-&phi

Min. bending radius Under Maximum Tension: 20.0×Cable-&phi

■ Description:

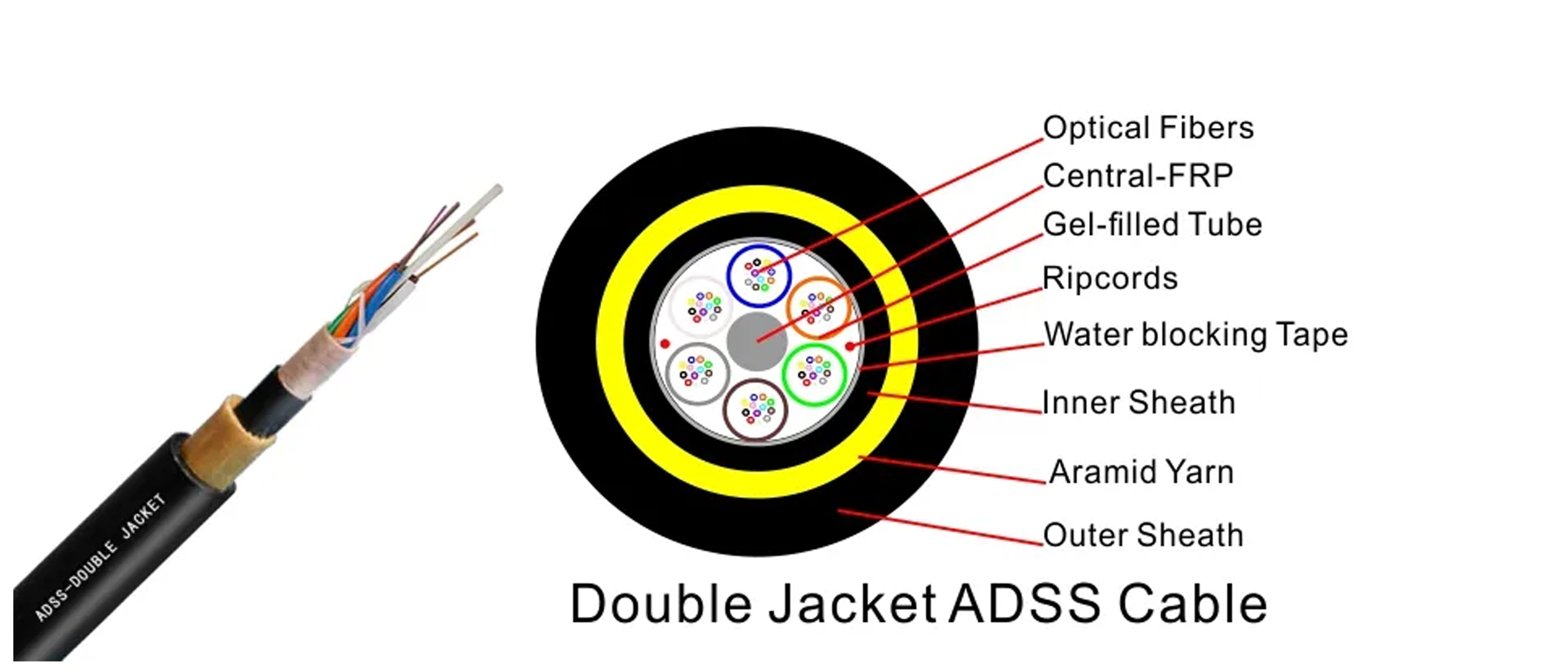

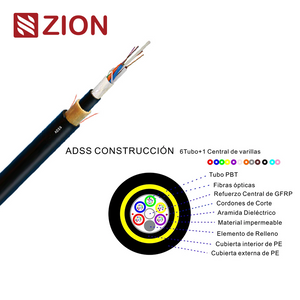

ADSS cable is loose tube stranded. Fiber, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tubes(and fillers) are stranded around a FRP(Fiber Reinforced Plastic ) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, it is covered with thin PE(polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT(anti-tracking) outer sheath.

ADSS CABLE PLACE ORDER INFORMATION:

■ Order Information:

Fiber Types and Jacket Types:

• G.652.D (Single-Mode)

Jacket Type: PE (Polyethylene)

Outer Cable Diameter: 10mm - 12mm

Fiber Count: 4-12

Aramid Yarn Details: Numbers/Types

Span Length/Spool: 100m

RTS (Reel/Spool) Length: 4 km

Important Details: Flexible for medium-scale installations

• OS2 9/125 (Single-Mode)

Jacket Type: AT (Acrylic)

Outer Cable Diameter: 12mm - 14mm

Fiber Count: 24-60

Aramid Yarn Details: 20 K49-2840D

Span Length/Spool: 150m

RTS Length: 3 km

Important Details: High-performance single-mode fiber, suitable for high-speed applications

• OM1 62.5/125 (Multi-Mode)

Jacket Type: PE (Polyethylene) / Flame Retardant

Outer Cable Diameter: 14mm - 16mm

Fiber Count: 60-72

Aramid Yarn Details: 34 K29-3000D

Span Length/Spool: 150m - 250m

RTS Length: 2 km

Important Details: Multi-mode fiber for moderate bandwidth needs

• OM2 50/125 (Multi-Mode)

Jacket Type: AT (Acrylic) / Flame Retardant

Outer Cable Diameter: 17mm - 18mm

Fiber Count: 96-144

Aramid Yarn Details: 8050D

Span Length/Spool: 250m - 750m

RTS Length: 1 km - 40-100

Important Details: Higher capacity fiber suitable for higher bandwidth multi-mode applications.

■ Fibre Colors:

■ Jacket Colors:

Single mode optical fiber (ITU-T Rec. G.652.D)

Fiber Type:

· Fiber Type: Single Mode

· Fiber Material: Doped Silica (Standard material used in fiber optics for high-speed transmission)

Attenuation Coefficient (Loss of signal over distance):

· @ 1310 nm: ≤ 0.35 dB/km

· @ 1383 nm: ≤ 0.32 dB/km

· @ 1550 nm: ≤ 0.21 dB/km

· @ 1625 nm: ≤ 0.24 dB/km

Point Discontinuity (Reflective loss at a fiber splice or connector):

· ≤ 0.05 dB

Cable Cut-off Wavelength:

· ≤ 1260 nm (The wavelength below which the fiber is no longer effective for transmission)

Zero-Dispersion Wavelength (The wavelength at which chromatic dispersion is zero):

· 1300 ~ 1324 nm

Zero-Dispersion Slope (Rate of change in dispersion):

· ≤ 0.092 ps/(nm²·km)

Chromatic Dispersion (Spreading of light pulses due to different wavelengths traveling at different speeds):

· @ 1288 ~ 1339 nm: ≤ 3.5 ps/(nm·km)

· @ 1271 ~ 1360 nm: ≤ 5.3 ps/(nm·km)

· @ 1550 nm: ≤ 18 ps/(nm·km)

· @ 1625 nm: ≤ 22 ps/(nm·km)

PMDQ (Polarization Mode Dispersion):

· Quadrature average: ≤ 0.2 ps/km¹/₂

Mode Field Diameter (The diameter of the light-carrying region):

· @ 1310 nm: 9.2 ± 0.4 µm

Core / Clad Concentricity Error (Deviation in alignment between core and cladding):

· ≤ 0.5 µm

Cladding Diameter:

· 125.0 ± 0.7 µm

Cladding Non-Circularity (Deviation from a perfect circle):

· ≤ 1.0%

Primary Coating Diameter (Diameter of the protective layer around the fiber):

· 245 ± 10 µm

Proof Test Level (Stress test for fiber strength):

· 100 kpsi (= 0.69 Gpa), 1% elongation

Temperature Dependence (Impact of temperature on performance):

· Operating Temperature: 0°C ~ +70°C (for both 1310 and 1550 nm wavelengths)

· Attenuation Increase: ≤ 0.1 dB/km
