Abrasion resistant hybrid electronic control cable

Conductor: flexible ultra-fine stranded copper wirer
Insulation: Special-thermoplastic TPE mixture
Shield: high strength tinned copper braid
Jacket:high abrasion and heat resistant PUR jacket
  • Abrasion resistant hybrid electronic control cable

  • hellosignal

  • 859675

  • Categories:: Robitics Cable
  • Length:: by customers' inquire
  • Packing:: roll, spool
  • MOQ:: 30KM
  • Delivery time:: Normally 25 days
  • Port of Loading:: NINGBO, SHANGHAI
  • Term of payment:: T/T, L/C, D/P at sight

Product Description

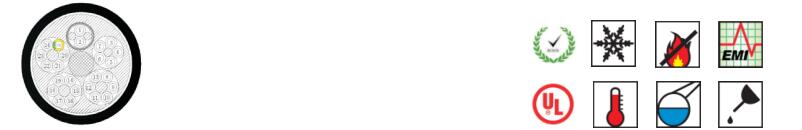

Abrasion resistant hybrid electronic control cable

6


Application Technical data
This cable apply to wiring for intelligent system of industrial robots.
And it apply to intelligent control system of integrated electric cabinet
and the system of control cabine.It has good performance of resistant
to interference.
 Temperature range
    Bend: -30 to 80
    Static: -50 to 80
 Rated voltage
Cable Construction     UL600V
Conductor: flexible ultra-fine stranded copper wirer     IEC/VDE 450V/750V
Insulation: Special-thermoplastic TPE mixture   Insulation resistance
insulation color:one is yellow/green insulated wire,     20℃≥100M ohm/km
                             others are white insulated wire print black font  Min bending radius
Shield: high strength tinned copper braid     Fixed:    5D(D=cable diameter)
Jacket: high abrasion and heat resistant PVC jacket;black  Test voltage
Product Feature     core/core 4000V/min
Fire resistance meets FT1&IEC60332-1     core/shied3500V/min
Good mechanical properties;Good oil resistant  Torsion angle:±180°
Good capability of electric insulation and resistant to chemicals
High quality screen
Product List
Item NO. Spec.(core*Nominal cross-section)mm⊃2; Nominal OD(mm) Copper.weight approx
(kg/km)
Weight approx (kg/km)
859675 23*1.0mm⊃2;+2*1.0mm⊃2;C 16.5 230 400
Order Informations:
  Marking HELLOSIGNAL Abrasion resistant hybrid electronic control cable  XXXFT/M
  Package 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet
  Delivery time Normally 20-25 days after received the deposit.
  More informations  please contact with us.
  Brand HELLOSIGNALTM OR OEM

Production Process Flow

# 1  Insulation Line
1

# 2 Twisting Line
2

# 3 Braiding Line
IMG_0683

# 4 Jacket Line
100_7876

# 5 Testing
CTS650对称数字通信电缆测试系统-3副本

# 6 Testing
635585795134459266623
