Z-ROB-SB PUR screened control cable for robot(Multicore)
hellosignal
859601～859645
Product Description
| ◆Application | ◆Technical data | ||||||||||
| This cable is used in the occasion with torsion movement.It is used as connecting cables in small industrial robot and mechanical arm.It also can be used as drag chain cables for high speed operation.It apply to indoor or outdoor cold environment.Halogen free. | |||||||||||
| ● Temperature range | |||||||||||
| Bend: -40℃ to 105℃ | |||||||||||
| Static: -50℃ to 105℃ | |||||||||||
| ● Rated voltage | |||||||||||

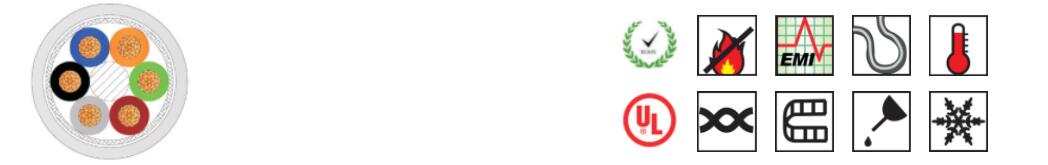

| ◆Cable Construction | UL/CSA 300V | ||||||||||
| Conductor:high bending strength ultra-fine stranded copper conductor | IEC/VDE ≤0.5mm⊃2;;300/300V | ||||||||||
| Insulation: TPEE mixture insulation | ≥0.5mm⊃2;;300/500V | ||||||||||
| Shield:high strength tinned copper braid | ● Insulation resistance | ||||||||||
| Jacket:high abrasion resistant PUR jacket | 20℃≥1000M ohm/km | ||||||||||
| ◆Product Feature | ● Min bending radius | ||||||||||
| This product meets the requirements of UL758 style 20375 | Fixed: 3.0D(D=cable diameter) | ||||||||||
| Fire resistance meets VW-1&FT1&IEC60332-1 | Moving: 5.0D(D=cable diameter) | ||||||||||
| High tensile strength,abrasion,impact and torsion resistant | ● Torsion angle | ||||||||||
| High property of bending strength and flexibility | Moving:±180°/m | ||||||||||
| extremely oil resistant | ● Application of drag chain≥20 million times | ||||||||||
| Product List | |||||||||||
| Item NO. | Spec.mm⊃2; | Nominal OD(mm) | Copper.weight approx (kg/km) | Weight approx. (kg/km) | |||||||
| 859601 | 2*0.14 | 4.8 | 10 | 30 | |||||||
| 859602 | 4*0.14 | 5.3 | 14 | 38 | |||||||
| 859603 | 6*0.14 | 6 | 19 | 48 | |||||||
| 859604 | 10*0.14 | 7.1 | 28 | 67 | |||||||
| 859605 | 20*0.14 | 8.6 | 46 | 103 | |||||||
| 859606 | 30*0.14 | 10 | 66 | 140 | |||||||
| 859607 | 2*0.20 | 5.1 | 13 | 34 | |||||||
| 859608 | 4*0.20 | 5.6 | 18 | 45 | |||||||
| 859609 | 6*0.20 | 6.4 | 25 | 57 | |||||||
| 859610 | 10*0.20 | 7.7 | 37 | 81 | |||||||
| 859611 | 20*0.20 | 9.4 | 63 | 128 | |||||||
| 859612 | 30*0.20 | 10.9 | 92 | 176 | |||||||
| 859613 | 2*0.30 | 5.4 | 15 | 39 | |||||||
| 859614 | 4*0.30 | 6 | 23 | 52 | |||||||
| 859615 | 6*0.30 | 6.9 | 32 | 68 | |||||||
| 859616 | 10*0.30 | 8.3 | 48 | 97 | |||||||
| 859617 | 20*0.30 | 10.3 | 88 | 160 | |||||||
| 859618 | 30*0.30 | 11.9 | 124 | 218 | |||||||
| 859619 | 2*0.50 | 5.9 | 21 | 47 | |||||||
| 859620 | 4*0.50 | 6.6 | 33 | 66 | |||||||
| 859621 | 6*0.50 | 7.5 | 46 | 87 | |||||||
| 859622 | 10*0.50 | 9.2 | 71 | 127 | |||||||
| 859623 | 20*0.50 | 11.5 | 132 | 216 | |||||||
| 859624 | 30*0.50 | 13.8 | 194 | 316 | |||||||
| 859625 | 2*0.75 | 6.7 | 28 | 60 | |||||||
| 859626 | 4*0.75 | 7.6 | 45 | 87 | |||||||
| 859627 | 6*0.75 | 8.8 | 64 | 117 | |||||||
| 859628 | 10*0.75 | 11 | 104 | 179 | |||||||
| 859629 | 20*0.75 | 14.2 | 192 | 322 | |||||||
| 859630 | 30*0.75 | 16.5 | 275 | 445 | |||||||
| 859631 | 2*0.10 | 7.1 | 33 | 68 | |||||||
| 859632 | 4*0.10 | 8.1 | 55 | 101 | |||||||
| 859633 | 6*0.10 | 9.4 | 78 | 136 | |||||||
| 859634 | 10*0.10 | 11.8 | 127 | 209 | |||||||
| 859635 | 20*0.10 | 15.3 | 237 | 379 | |||||||
| 859636 | 2*1.5 | 7.7 | 46 | 84 | |||||||
| 859637 | 4*1.5 | 8.8 | 78 | 129 | |||||||
| 859638 | 6*1.5 | 10.4 | 116 | 182 | |||||||
| 859639 | 10*1.5 | 13.5 | 188 | 293 | |||||||
| 859640 | 20*1.5 | 16.9 | 347 | 508 | |||||||
| 859641 | 2*2.5 | 8.8 | 67 | 112 | |||||||
| 859642 | 4*2.5 | 10.2 | 121 | 182 | |||||||
| 859643 | 6*2.5 | 12.4 | 174 | 264 | |||||||
| 859644 | 10*2.5 | 15.7 | 285 | 411 | |||||||
| 859645 | 20*2.5 | 20.7 | 534 | 768 | |||||||
| Order Informations: | |||||||||||
| Marking | HELLOSIGNAL Z-ROB-SB PUR screened control cable for robot(Multicore) XXXFT/M | ||||||||||
| Package | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet | ||||||||||
| Delivery time | Normally 20-25 days after received the deposit. | ||||||||||
| More informations | please contact with us. | ||||||||||
| Brand | HELLOSIGNALTM OR OEM | ||||||||||
