Hybrid electronic control cable

Conductor: flexible ultra-fine stranded copper wirer
Insulation: Special-thermoplastic TPE mixture
Shield: high strength tinned copper braid
Jacket:high abrasion and heat resistant PUR jacket

Model:
Hybrid electronic control cable
Brand:
hellosignal
Code:
859674
Categories:: Robitics Cable
Length:: by customers' inquire
Packing:: roll, spool
MOQ:: 30KM
Delivery time:: Normally 25 days
Port of Loading:: NINGBO, SHANGHAI
Term of payment:: T/T, L/C, D/P at sight



Inquire Add to Basket

Product Description

Hybrid electronic control cable

◆Application				◆Technical data
This cable apply to wiring for intelligent system of industrial robots. And it apply to intelligent control system of integrated electric cabinet and the system of control cabine.It has good performance of resistant to interference.
				● Temperature range
				Bend: -30℃ to 80℃
				Static: -50℃ to 80℃
				● Rated voltage

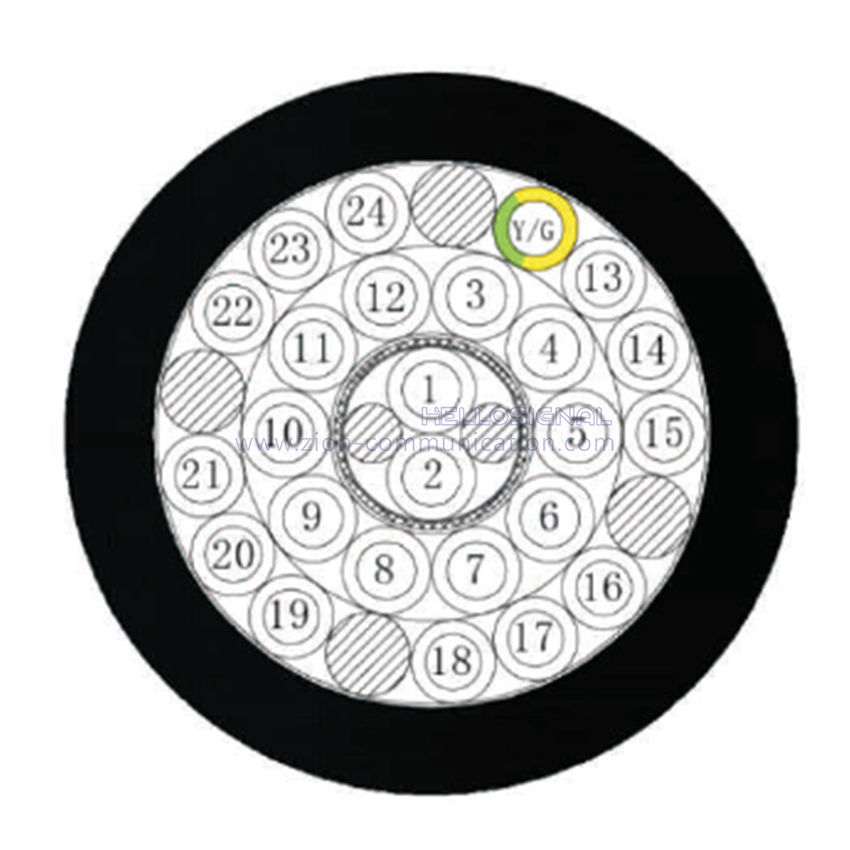

◆Cable Construction				UL：600V
Conductor: flexible ultra-fine stranded copper wirer				IEC/VDE： 450V/750V
Insulation: Special-thermoplastic TPE mixture				● Insulation resistance
insulation color:one is yellow/green insulated wire,				20℃≥100M ohm/km
others are white insulated wire print black font				● Min bending radius
Shield: high strength tinned copper braid				Fixed: 5D(D=cable diameter)
Jacket: high abrasion and heat resistant PVC jacket;black				● Test voltage
◆Product Feature				（core/core） 4000V/min
Fire resistance meets FT1&IEC60332-1				（core/shied）3500V/min
Good mechanical properties;Good oil resistant
Good capability of electric insulation and resistant to chemicals
High quality screen
Product List
Item NO.	Spec.(core*Nominal cross-section)mm⊃2;		Nominal OD(mm)		Copper.weight approx (kg/km)	Weight approx (kg/km)

859674	231.0mm⊃2;+（21.0mm⊃2;）C		13.4		220	355
Order Informations:
Marking		HELLOSIGNAL Hybrid electronic control cable XXXFT/M
Package		500FT/PULL BOX, 1000FT/Wooden Spool,Pallet
Delivery time		Normally 20-25 days after received the deposit.
More informations		please contact with us.
Brand		HELLOSIGNALTM OR OEM
