MULTI BUS hybrid cable
hellosignal
859670～859671
| ◆Application | ◆Technical data | ||||||||||
| This cable apply to wiring for intelligent system of industrial robots. And it apply to intelligent control system of complete equipments, integrated installation of intelligent home and integrated wiring system of intelligent plant. | |||||||||||
| ● Temperature range | |||||||||||
| Bend: -30℃ to 80℃ | |||||||||||
| Static: -50℃ to 80℃ | |||||||||||
| ● Rated voltage | |||||||||||

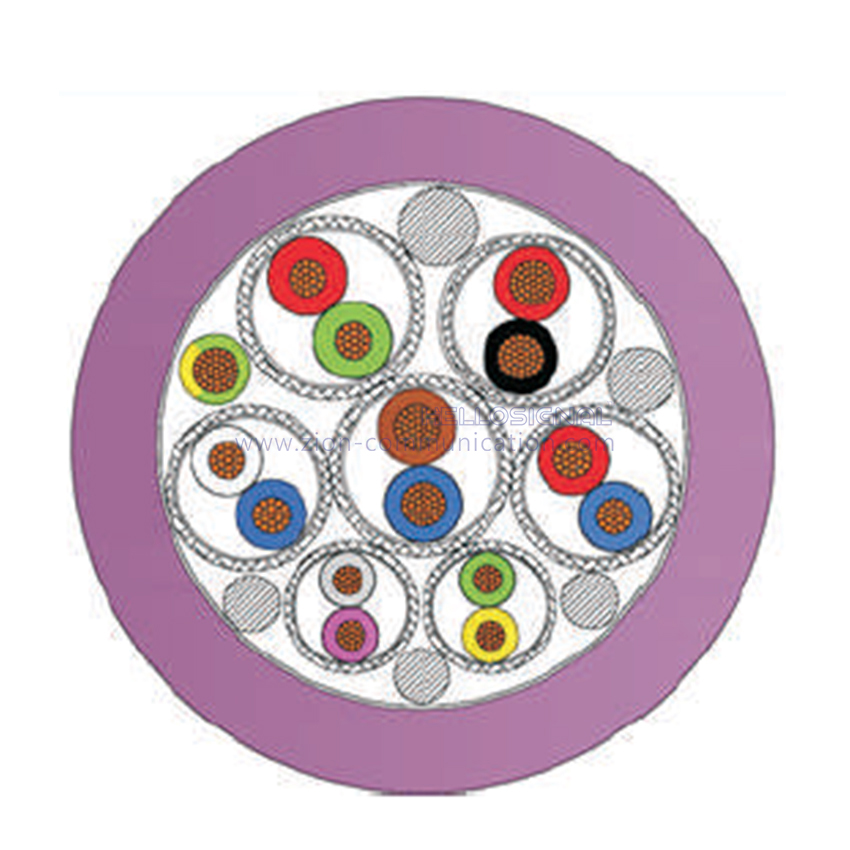

| ◆Cable Construction | 30V | ||||||||||
| Conductor: flexible ultra-fine stranded copper wirer | IEC/VDE： MAX350V | ||||||||||
| Insulation: Special-thermoplastic TPE mixture | ● Insulation resistance | ||||||||||
| Filler: special material of filler | 20℃≥100M ohm/km | ||||||||||
| Shield: high strength tinned copper braid | ● Min bending radius | ||||||||||
| Jacket: high abrasion and heat resistant PVC jacket;purple | Fixed: 5D(D=cable diameter) | ||||||||||
| ◆Product Feature | Moving: 12D(D=cable diameter) | ||||||||||
| Fire resistance meets FT1&IEC60332-1 | ● Test voltage | ||||||||||
| Good mechanical properties;High quality screen | （core/core） 1500V/min | ||||||||||
| Good oil resistant | （core/shied）1000V/min | ||||||||||
| Good capability of electric insulation and resistant to chemicals | ● Characteristic impedance | ||||||||||
| | 2PX0.25mm²(interbus):100±15Ω(f=1~10MHz) | ||||||||||
| 2PX0.34mm²(profibus):150±15Ω(f=3~20MHz) | |||||||||||
| 2X0.34mm²(DeviceNet):120±15Ω(f=500kHz~1MHz) | |||||||||||
| Product List | |||||||||||
| Item NO. | Spec.(core*Nominal cross-section)mm² | Nominal OD(mm) | Copper.weight approx (kg/km) | Weight approx (kg/km) | |||||||
| 859670 | Interbus(2*0.25mm²)+Devicenet(2*0.34mm²) +(2*1.0mm²)+1.0mm² | 210.5 | 65 | 135 | |||||||
| 859671 | Interbus(2P*0.25mm²)+Devicenet(2P*0.34mm²) +(2P*1.0mm²)+profibus(2*0.34mm²)+1.0mm² | 214.5 | 130 | 270 | |||||||
| Order Informations: | |||||||||||
| Marking | HELLOSIGNAL MULTI BUS hybrid cable XXXFT/M | ||||||||||
| Package | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet | ||||||||||
| Delivery time | Normally 20-25 days after received the deposit. | ||||||||||
| More informations | please contact with us. | ||||||||||
| Brand | HELLOSIGNALTM OR OEM | ||||||||||
