Hybrid electronic control cable for servo motor
hellosignal
859672～859673
| ◆Application | ◆Technical data | ||||||||||
| This cable apply to wiring for intelligent system of industrial robots. And it apply to intelligent control system of integrated electric cabinet and the system of control cabine.It has good performance of resistant to interference. | |||||||||||
| ● Temperature range | |||||||||||
| Bend: -30℃ to 80℃ | |||||||||||
| Static: -50℃ to 80℃ | |||||||||||
| ● Rated voltage | |||||||||||

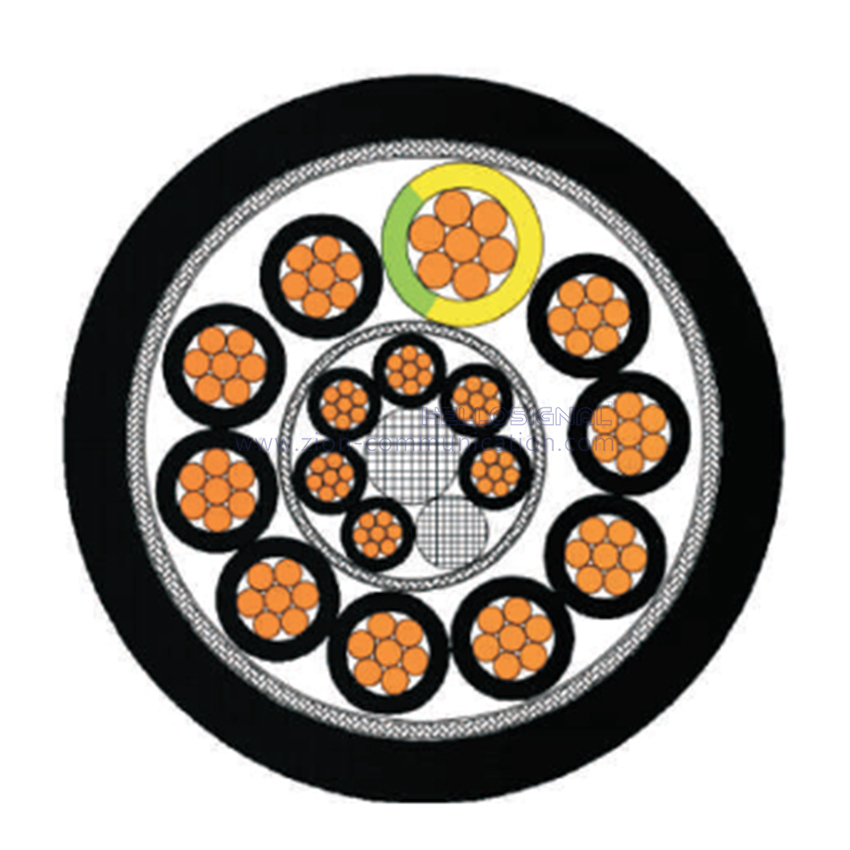

| ◆Cable Construction | UL：600V | ||||||||||
| Conductor: flexible ultra-fine stranded copper wirer | IEC/VDE： 450V/750V | ||||||||||
| Insulation: Special-thermoplastic TPE mixture | ● Insulation resistance | ||||||||||
| Insulation color:one is yellow/green insulated wire, | 20℃≥100M ohm/km | ||||||||||
| others are white insulated wire print black font | ● Min bending radius | ||||||||||
| Filler: special material of filler | Fixed: 5D(D=cable diameter) | ||||||||||
| Shield: high strength tinned copper braid | ● Test voltage | ||||||||||
| Jacket: high abrasion and heat resistant PVC jacket;black | （core/core） 4000V/min | ||||||||||
| ◆Product Feature | （core/shied）3500V/min | ||||||||||
| Fire resistance meets FT1&IEC60332-1 | |||||||||||
| Good mechanical properties;Good oil resistant | |||||||||||
| Good capability of electric insulation and resistant to chemicals | |||||||||||
| Product List | |||||||||||
| Item NO. | Spec.(core*Nominal cross-section)mm² | Nominal OD(mm) | Copper.weight approx (kg/km) | Weight approx (kg/km) | |||||||
| 859672 | Interbus(2*0.25mm²)+Devicenet(2*0.34mm²) +(2*1.0mm²)+1.0mm² | 210.5 | 65 | 135 | |||||||
| 859673 | Interbus(2P*0.25mm²)+Devicenet(2P*0.34mm²) +(2P*1.0mm²)+profibus(2*0.34mm²)+1.0mm² | 214.5 | 130 | 270 | |||||||
| Order Informations: | |||||||||||
| Marking | HELLOSIGNAL Hybrid electronic control cable for servo motor XXXFT/M | ||||||||||
| Package | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet | ||||||||||
| Delivery time | Normally 20-25 days after received the deposit. | ||||||||||
| More informations | please contact with us. | ||||||||||
| Brand | HELLOSIGNALTM OR OEM | ||||||||||
