Anti-Terror camera cable
hellosignal
859739
| ◆Application | ◆Technical data | ||||||||||
| This cable is designed for the special areas such as monitoring, aerospace and military etc.The cable can also be widely used in different environment, even in the terrible environment,with steady signal transmission relying on its good performance of anti-high temperature,anti-erosion. | |||||||||||
| ● Temperature range | |||||||||||
| -55℃ to 250℃ | |||||||||||
| ● Loop conductor DC resistance at 20℃ | |||||||||||
| ≤7500 ohm/km | |||||||||||
| ● Min bending radius | |||||||||||

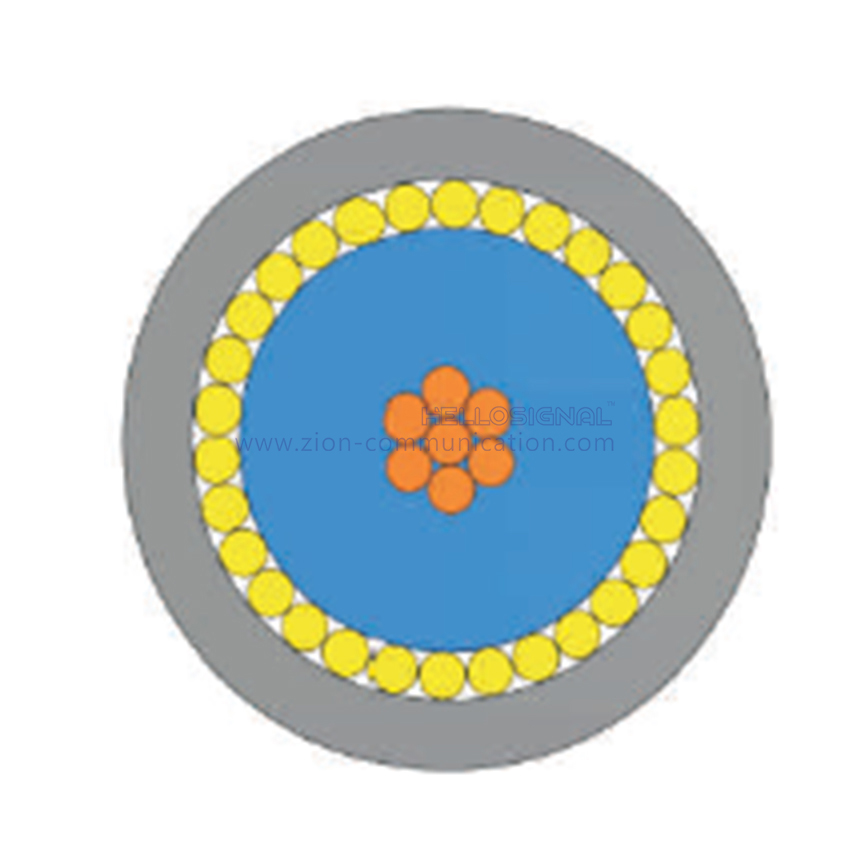

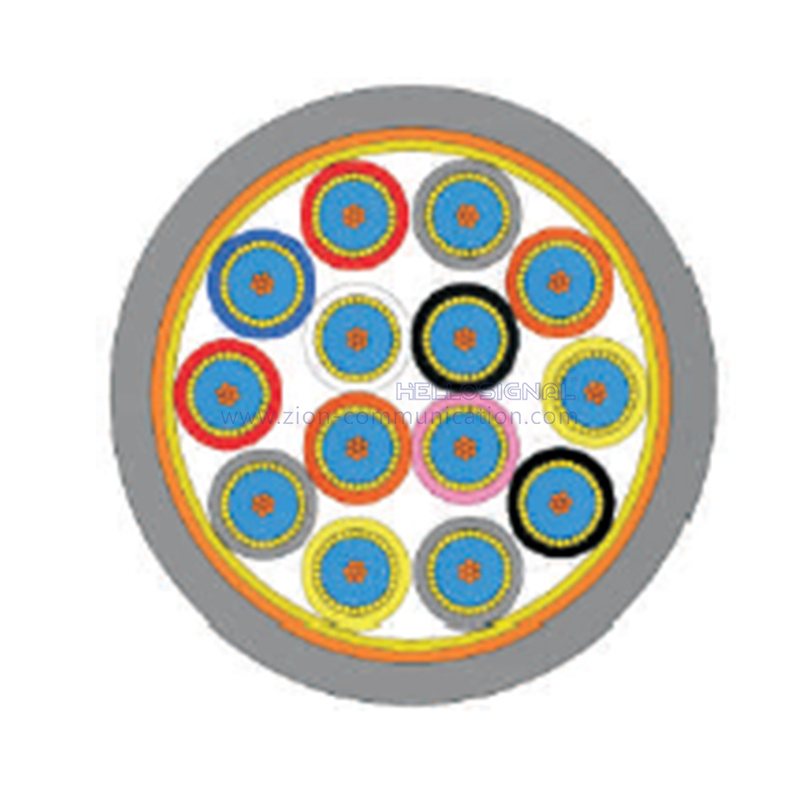

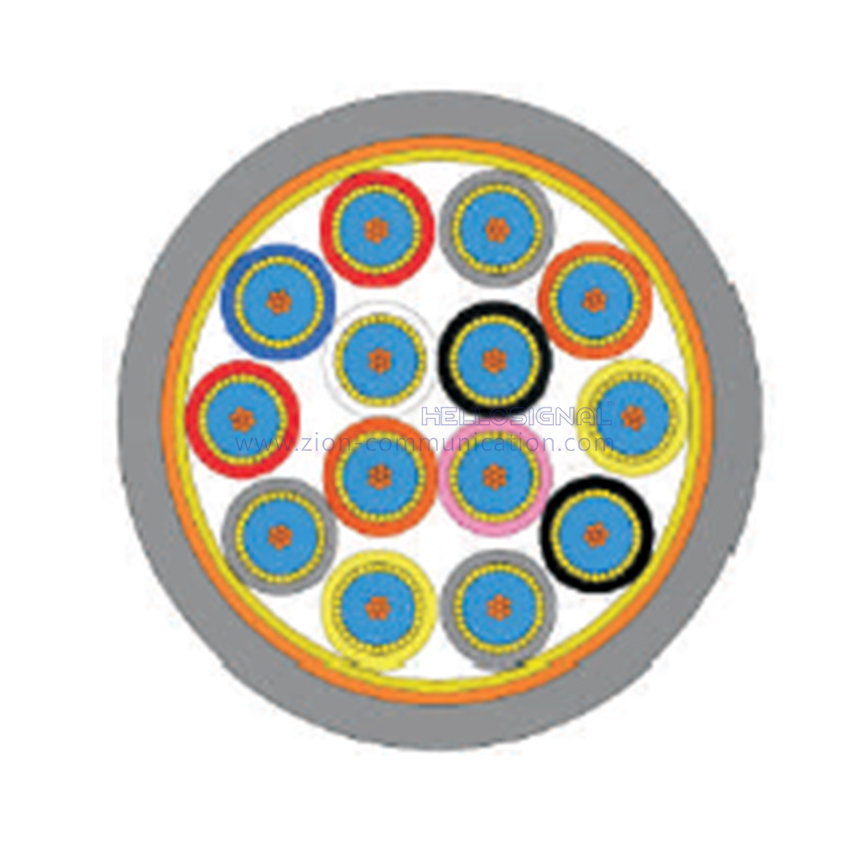

| ◆Cable Construction | 15X cable diameter | ||||||||||
| Conductor: stranded alloy wire | ● Characteristic impedance | ||||||||||
| Insulation: Fluoroplastic | 50±15 Ohm | ||||||||||
| Shield1: Tinned copper alloy | ● Insulation resistance | ||||||||||
| Jacket1: PET tape | ≥1000M ohm.km | ||||||||||
| Shield2: AL/Mylar screen and TC braid | ● Dielectric strength | ||||||||||
| Jacket2: PUR | AC 500V，1min | ||||||||||
| ◆Product Feature | |||||||||||
| Fire,Abrasion and torsion resistance,Easy bending | |||||||||||
| Excellent Anti-EMI performance | |||||||||||
| Excellent transmission performance | |||||||||||
| Meet CAT5e requests | |||||||||||
| Product List | |||||||||||
| Item NO. | Spec. | Outer Jacket | Nominal OD (mm) | Copper.weight approx (kg/km) | Weight approx (kg/km) | ||||||
| 859739 | 14*42AWG微同轴线(Micro-coaxial cable) | PUR | 2.35 | 18 | 31 | ||||||
| Order Informations: | |||||||||||
| Marking | HELLOSIGNAL Anti-Terror camera cable XXXFT/M | ||||||||||
| Package | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet | ||||||||||
| Delivery time | Normally 20-25 days after received the deposit. | ||||||||||
| More informations | please contact with us. | ||||||||||
| Brand | HELLOSIGNALTM OR OEM | ||||||||||
