Wind Power Cable-CAT5e
hellosignal
859710～859711
| ◆Application | ◆Technical data | ||||||||||
| This cable isdesigned specifically for wind power applications and is used in the tower of wind turbine. High flexibility application. | |||||||||||
| ● Temperature range | |||||||||||

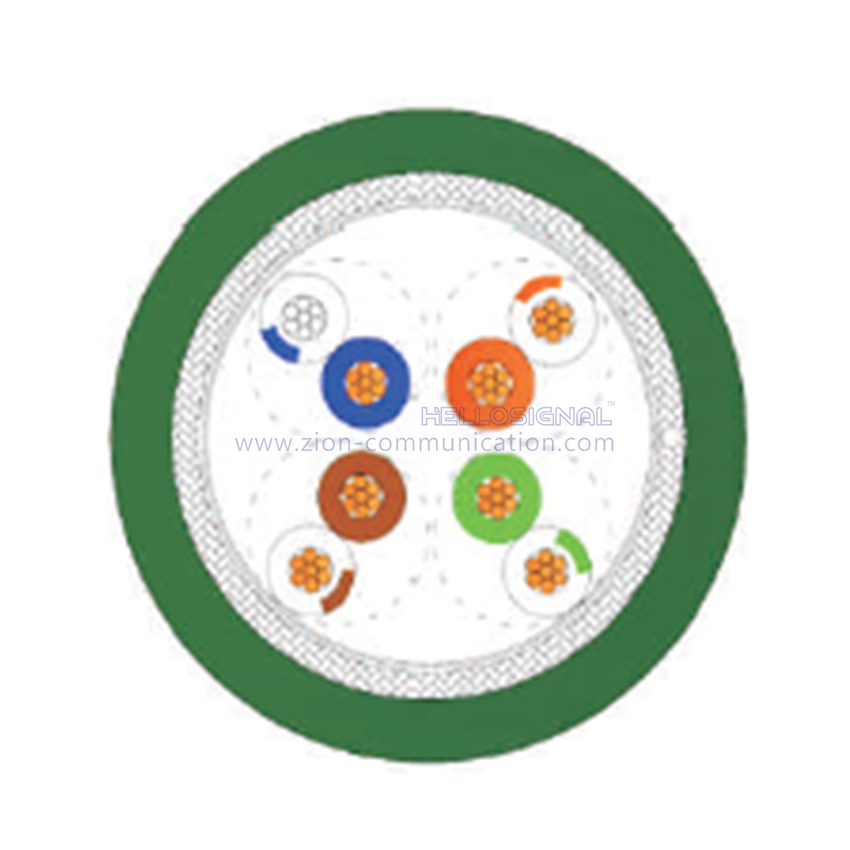

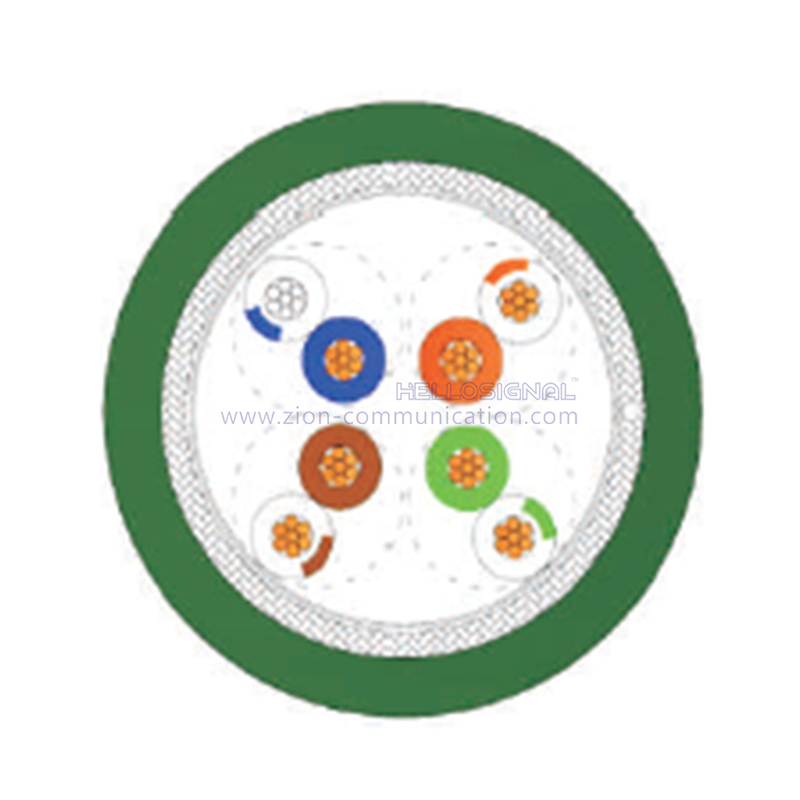

| ◆Cable Construction | Fixed installation：-40℃ to 80℃ | ||||||||||
| Conductor:high bending strength ultra-fine TC conductor | Moved installation：-30℃ to 70℃ | ||||||||||
| Insulation: PE | ● Test voltage | ||||||||||
| Shield:AL foil wrapped,high strength tinned copper braid | 1000V | ||||||||||
| Jacket:high abrasion resistant PUR jacket | ● Peak voltage | ||||||||||
| ◆Product Feature | (Data transmission application)125V | ||||||||||
| High tensile strength,abrasion,impact and torsion resistant | ● Characteristic impedance | ||||||||||
| Good performance of resistant to signal interference | 100±15 Ohm | ||||||||||
| High property of bending strength and flexibility | ● Min bending radius | ||||||||||
| extremely oil resistant | Fixed installation：8x cable diameter | ||||||||||
| Resistant to cold,resistant to low temperature up to -40℃ | Moved installation：12x cable diameter | ||||||||||
| Product List | |||||||||||
| Item NO. | Spec. | Insulation | Nominal OD(mm) | Copper.weight approx (kg/km) | Weight approx (kg/km) | ||||||
| 859710 | 4*2*AWG26/7 | PUR | 6.1 | 26 | 51 | ||||||
| 859711 | 4*2*AWG26/19 | PUR | 6.2 | 27 | 52 | ||||||
| Order Informations: | |||||||||||
| Marking | HELLOSIGNAL Wind Power CAT5e Cable-XXXFT/M | ||||||||||
| Package | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet | ||||||||||
| Delivery time | Normally 20-25 days after received the deposit. | ||||||||||
| More informations | please contact with us. | ||||||||||
| Brand | HELLOSIGNALTM OR OEM | ||||||||||
