Marine Cable-CAT6
hellosignal
859712～859719
| ◆Application | ◆Technical data | ||||||||||
| This cable is suitable for marine environment、ship、offshore oil platform etc.It apply to Data-Centers、SANS. Armored cables apply to direct burial installation and outdoor installation. | |||||||||||
| ● Temperature range | |||||||||||
| -40℃ to 85℃ | |||||||||||
| ● Test voltage | |||||||||||

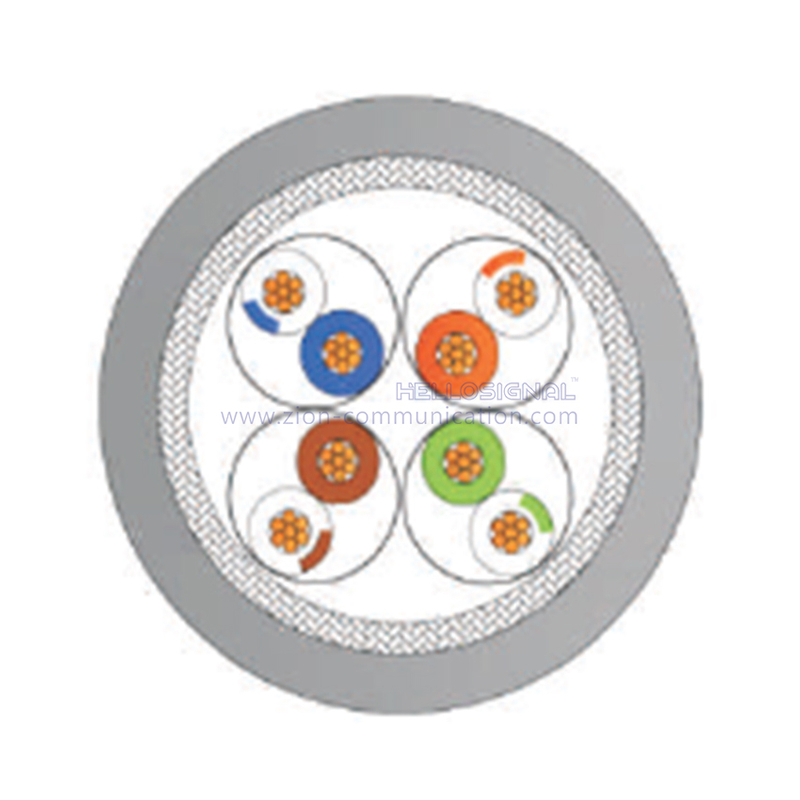

| ◆Cable Construction | 700V | ||||||||||
| Conductor:bare copper wire or tinned copper wire | ● Min bending radius | ||||||||||
| Insulation: HDPE or FPE | Please see attached list | ||||||||||
| Inner jacket:SHF2(for armored cable) | ● Characteristic impedance | ||||||||||
| Shield:AL/Mylar wrapp aroud each twisted pairs,copper wire overall braid | 100±15 Ohm | ||||||||||
| Jacket:SHF2 | ● Other characteristic | ||||||||||
| ◆Product Feature | According to the standard about CAT6A | ||||||||||
| Halogen-free and resistant to flame | |||||||||||
| High quality screen and resistant to EMI | |||||||||||
| Resistant to UV，oil and corrosion | |||||||||||
| Almored cable have good mechanical properties such as tensile strength and compressive strength | |||||||||||
| High bandwidth,high transmission rate | |||||||||||
| Product List | |||||||||||
| Item NO. | Spec. | Conductor | Insulation | Jacket | armor | Min bending radius | Nominal OD (mm) | copper weight (kg/km) | Weight approx (kg/km) | ||
| 859712 | 4*2*AWG22/1 | BC | HDPE | SHF2 | / | 6D | 9.2 | 34 | 85 | ||
| 859713 | 4*2*AWG26/7 | TC | FPE | SHF2 | / | 8D | 7 | 18 | 53 | ||
| 859714 | 4*2*AWG23/1 | BC | FPE | SHF2 | / | 8D | 8 | 30 | 68 | ||
| 859715 | 4*2*AWG23/7 | TC | HDPE | SHF2 | / | 10D | 10.3 | 38 | 105 | ||
| 859716 | 4*2*AWG22/7 | BC | HDPE | SHF2 | SBA | 12D | 12.5 | 34 | 260 | ||
| 859717 | 4*2*AWG26/7 | TC | HDPE | SHF2 | SBA | 10D | 10.3 | 18 | 185 | ||
| 859718 | 4*2*AWG23/1 | BC | FPE | SHF2 | SBA | 10D | 11.2 | 30 | 215 | ||
| 859719 | 4*2*AWG23/7 | TC | HDPE | SHF2 | SBA | 12D | 13.3 | 38 | 290 | ||
| Order Informations: | |||||||||||
| Marking | HELLOSIGNAL Marine CAT6 Cable XXXFT/M | ||||||||||
| Package | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet | ||||||||||
| Delivery time | Normally 20-25 days after received the deposit. | ||||||||||
| More informations | please contact with us. | ||||||||||
| Brand | HELLOSIGNALTM OR OEM | ||||||||||
