Rolling stock data cable
hellosignal
859738
| ◆Application | ◆Technical data | ||||||||||
| This data cable was especially designed forinstallation within rail vehicles and buses.The cable fulfils the fire resistance requirements according to IEC standards and buses and is suitable for operation over a wide temperature range. | |||||||||||
| ● Temperature range | |||||||||||
| -60℃ to 150℃ | |||||||||||
| ● Loop conductor DC resistance at 20℃ | |||||||||||
| ≤88 ohm/km | |||||||||||

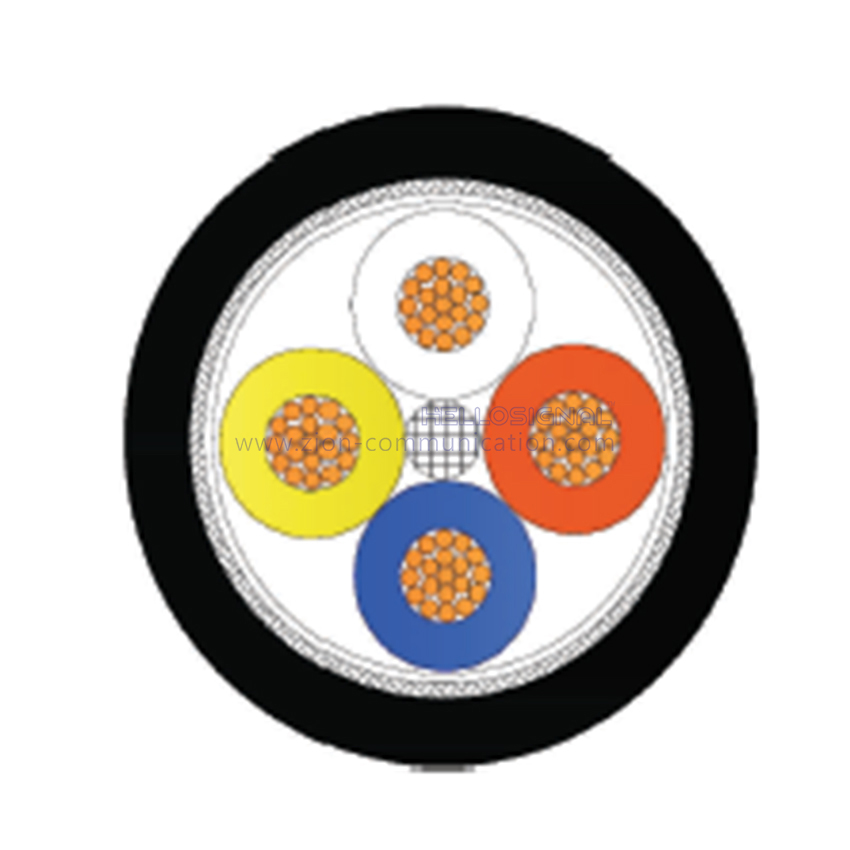

| ◆Cable Construction | ● Min bending radius | ||||||||||
| Conductor: Multicore stranded copper wire | 10X cable diameter | ||||||||||
| Insulation: special foamed material | ● Characteristic impedance | ||||||||||
| Filler: PE or other materials | 100±15 Ohm | ||||||||||
| Shield: AL/Mylar screen and TC braid | ● Other characteristic | ||||||||||
| Jacket: See detail in attached list | Meet CAT5e requests | ||||||||||

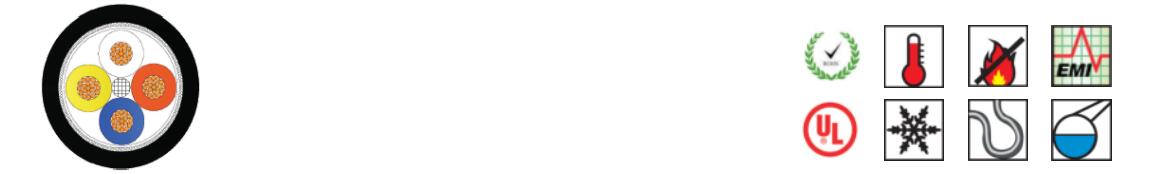

| ◆Product Feature | |||||||||||
| Abrasion and oil resistance | |||||||||||
| Excellent transmission performance | |||||||||||
| Resistant to UV，oil and corrosion | |||||||||||
| Good fire resistance performance,meet IEC60332-1 | |||||||||||
| AL/Mylar and copper wire braid,excellent Anti-EMI performance | |||||||||||
| Meet CAT5e requests | |||||||||||
| Product List | |||||||||||
| Item NO. | Spec. | Outer Jacket | Nominal OD (mm) | Copper.weight approx (kg/km) | Weight approx (kg/km) | ||||||
| 859738 | 4*24AWG/19 | Special material | 3.85 | 18 | 31 | ||||||
| Order Informations: | |||||||||||
| Marking | HELLOSIGNAL Rolling stock data cable XXXFT/M | ||||||||||
| Package | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet | ||||||||||
| Delivery time | Normally 20-25 days after received the deposit. | ||||||||||
| More informations | please contact with us. | ||||||||||
| Brand | HELLOSIGNALTM OR OEM | ||||||||||
