High temperature cable
hellosignal
859701～859709
| ◆Application | ◆Technical data | ||||||||||

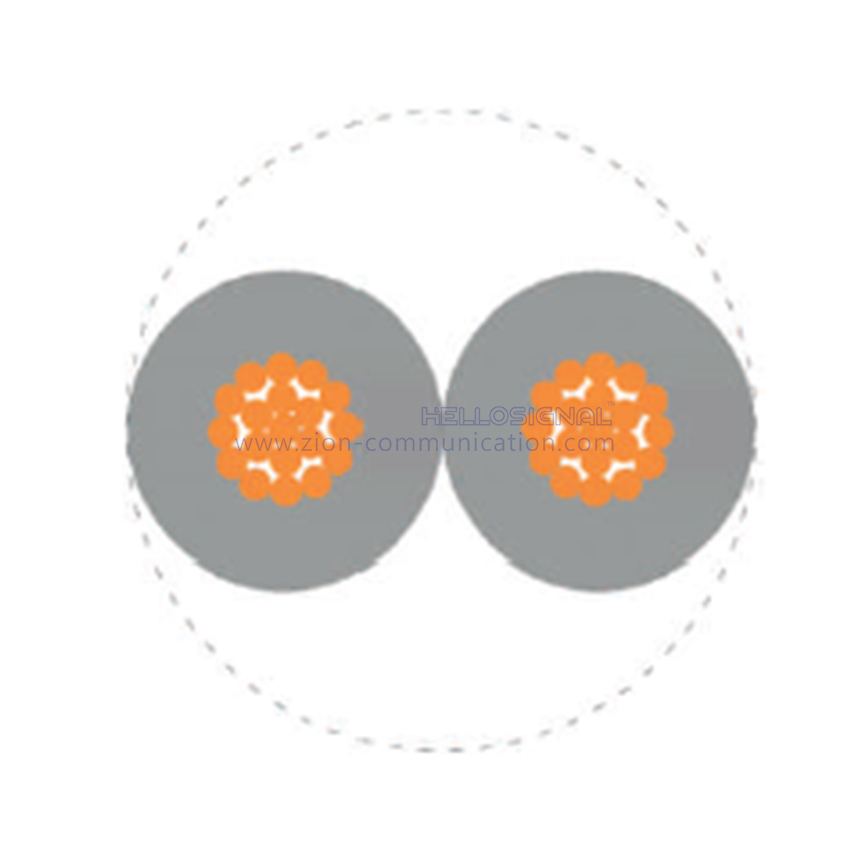

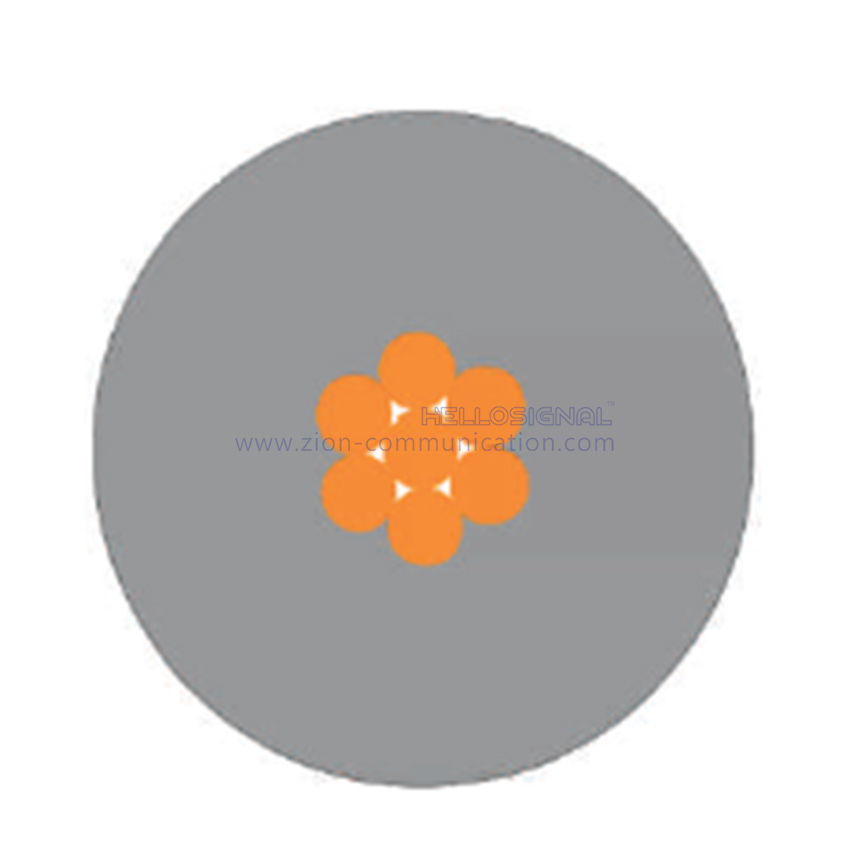

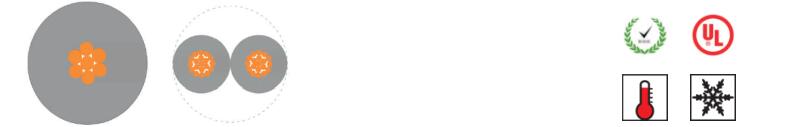

| Single core cable can be used as connecting cablesin electrical equipments or other equipments connection .Two cores twisted cable apply to internal data transmission of the products used in notebook computer,handheld games , micro electronic equipments. | |||||||||||
| ● Temperature range | |||||||||||
| -60℃ to 105℃ | |||||||||||
| ● Conductor DC resistance | |||||||||||
| 32AWG ≤377 ohm/km | |||||||||||
| ◆Cable Construction | 32AWG ≤589 ohm/km | ||||||||||
| Conductor: stranded copper wire | 34AWG ≤1000 ohm/km | ||||||||||
| Insulation: See attahced list | 14AWG ≤10 ohm/km | ||||||||||
| ◆Product Feature | 36AWG ≤1600 ohm/km | ||||||||||
| Good properties of resistance to high and low temperature | ● Reference standard | ||||||||||
| solvent as well as excellent chemical stability | UL758，UL1581 | ||||||||||
| They are particularly designed for especially high temperature working | |||||||||||
| environment and can ensure to maintain its good performance | |||||||||||
| Product List | |||||||||||
| Item NO. | Spec. | Insulation | Nominal OD(mm) | Copper.weight approx (kg/km) | Weight approx (kg/km) | ||||||
| 859701 | 30AWG | FEP | 0.5 | 0.5 | 0.78 | ||||||
| 859702 | 32AWG | FEP | 0.38 | 0.32 | 0.47 | ||||||
| 859703 | 32AWG | FEP | 0.42 | 0.32 | 0.53 | ||||||
| 859704 | 34AWG | FEP | 0.32 | 0.18 | 0.3 | ||||||
| 859705 | 34AWG | FEP | 0.36 | 0.18 | 0.35 | ||||||
| 859706 | 14AWG | FEP | 2.43 | 20 | 25 | ||||||
| 859707 | 32AWG | PFA | 0.38 | 0.65 | 0.96 | ||||||
| 859708 | 34AWG | PFA | 0.28 | 0.36 | 0.52 | ||||||
| 859709 | 36AWG | PFA | 0.26 | 0.23 | 0.4 | ||||||
| Order Informations: | |||||||||||
| Marking | HELLOSIGNAL High temperature cable XXXFT/M | ||||||||||
| Package | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet | ||||||||||
| Delivery time | Normally 20-25 days after received the deposit. | ||||||||||
| More informations | please contact with us. | ||||||||||
| Brand | HELLOSIGNALTM OR OEM | ||||||||||
