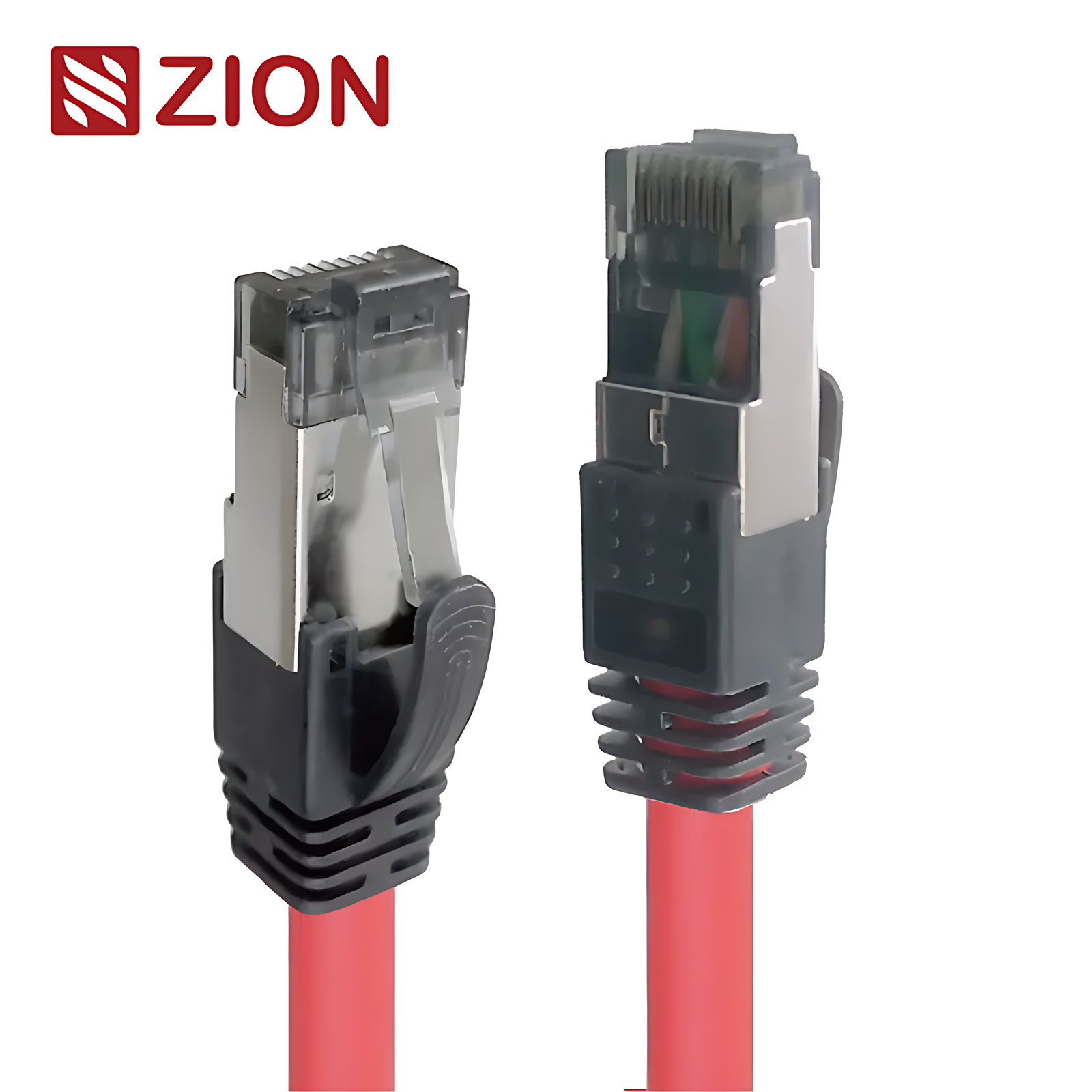

CAT.8 S/FTP RJ45 Patch Cord

CAT.8 S/FTP RJ45 Patch Cable

■ Application:

Category 8 cabling systems will play a major role in data centers and mission-critical environments upgrading to 25/40GBASE-T.

ZION Communication CAT8 S/FTP Patch Cords conforms to ANSI/TIA/EIA-568.2-D, ISO/IEC 11801, IEEE and CENELEC EN50575 for Category 8. All patch cords are 100% (FLUKE DSX 8000) tested per Cat.8 Channel up to 2000 MHz. Designed for high speed protocols such as IEEE 802.3:10Base-T, 100Base-T, 1000Base-T, 10GBase-T, 40GBase-T, HDBase-T A & B and ATM, CATV,computer,hubs,switches, routers,DSL/cable modems and patch panel in Gigabit datacenter.

■ Specification:

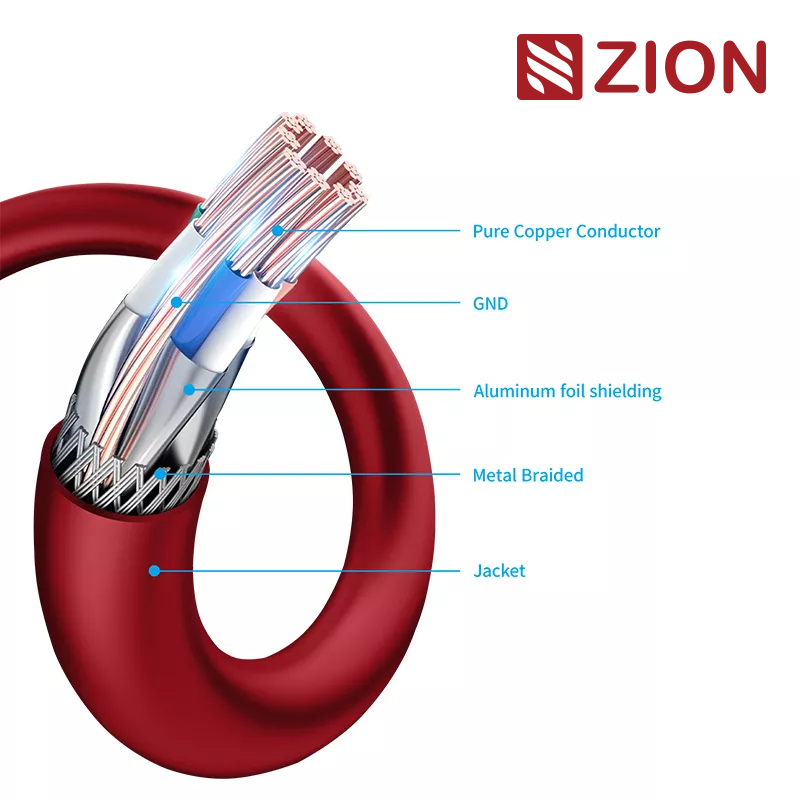

Cable Type:

· Category: Cat. 8.2 (meets IEC 61156-10 transmission requirements)

· Shielding: S/FTP (Shielded Foiled Twisted Pair)

Conductor:

· Material: Stranded bare copper

· Pairs: 4 twisted pairs

Insulation:

· Type: Skin-Foam-Skin PE (Polyethylene)

Color Coding (TIA/EIA 568-B Standard):

· Pair 1: Orange, White/White-Orange

· Pair 2: Blue, White/White-Blue

· Pair 3: Green, White/White-Green

· Pair 4: Brown, White/White-Brown

Shielding:

· Individual Shield: Each pair is shielded with Aluminum/PET foil, aluminum facing outward, with 100% coverage.

· Overall Shield: The cable has a total shield of either Tinned Copper (TC) or Aluminum-Magnesium (Al_Mg) braiding, with more than 30% coverage.

Outer Jacket:

· Material: LSZH (Low Smoke Zero Halogen) or PVC (Polyvinyl Chloride)

Electrical & Performance Specifications:

· Frequency Range: 1 - 2000 MHz

· Impedance: 100 Ohms

· Max Resistance Unbalance: 2%

· Current Rating: 1.5 A

· Max Voltage: 72 VDC

Temperature Range:

· Operating Temperature: Min. -40°C, Max. +65°C



RJ45 Connector：

Type: RJ45 Ethernet Connector

Material:

o Plug: Polycarbonate

o Boot: LSZH (Low Smoke Zero Halogen) or PVC (Polyvinyl Chloride) for strain relief and protection

o Front Connection: Phosphor Bronze with 50µ inch Gold over Nickel Plating for superior conductivity and durability

o Blades: Copper Alloy, Nickel Plated for robust electrical contact

o Shielding: Copper Alloy, Nickel Plated to reduce electromagnetic interference (EMI) and improve signal integrity

Durability: Rated for 750 mating cycles minimum, ensuring long-lasting performance in environments with frequent cable insertions and removals.

■ Characteristics:

Ethernet Cable Specification

· Version: Cat 8.1

· Class: G (I)

· Max Operating Frequency: 2000 MHz

· Shielding Type: S/FTP (Shielded Foiled Twisted Pair)

· Plug Connector: RJ45

· Used For:

o 25GBase-T (up to 50 meters)

o 40GBase-T (up to 30 meters)

· Application:

o Faster server interconnection

o Data center connections

· Standard Compliance: ISO/IEC TR 11801-99-1

■ Product Code:

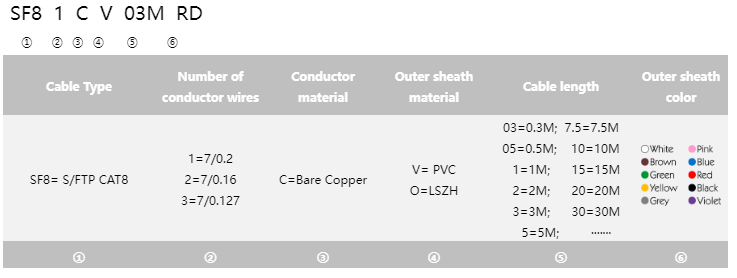

■ Ordering Information

1. CAT 8 S/FTP 24AWG Copper Conductor RJ45 Patch Cord

· Conductor: 7/0.2mm Copper

· Cable Outer Diameter (OD): 7.8 ± 0.2mm

· Max Length: Up to 25 meters

Product Codes & Descriptions:

· SF81CO05MRD: CAT 8 S/FTP 24AWG Copper RJ45 Patch Cord, LSZH, Red, 0.5m

· SF81CO1MRD: CAT 8 S/FTP 24AWG Copper RJ45 Patch Cord, LSZH, Red, 1m

· SF81CO2MRD: CAT 8 S/FTP 24AWG Copper RJ45 Patch Cord, LSZH, Red, 2m

· SF81CO3MRD: CAT 8 S/FTP 24AWG Copper RJ45 Patch Cord, LSZH, Red, 3m

· SF81CO5MRD: CAT 8 S/FTP 24AWG Copper RJ45 Patch Cord, LSZH, Red, 5m

· SF81CO8MRD: CAT 8 S/FTP 24AWG Copper RJ45 Patch Cord, LSZH, Red, 8m

· SF81CO10MRD: CAT 8 S/FTP 24AWG Copper RJ45 Patch Cord, LSZH, Red, 10m

· SF81CO15MRD: CAT 8 S/FTP 24AWG Copper RJ45 Patch Cord, LSZH, Red, 15m

· SF81CO20MRD: CAT 8 S/FTP 24AWG Copper RJ45 Patch Cord, LSZH, Red, 20m

· SF81CO25MRD: CAT 8 S/FTP 24AWG Copper RJ45 Patch Cord, LSZH, Red, 25m



2. CAT 8 S/FTP 26AWG Copper Conductor RJ45 Patch Cord

· Conductor: 7/0.16mm Copper

· Cable Outer Diameter (OD): 6.4 ± 0.2mm

· Max Length: Up to 20 meters

Product Codes & Descriptions:

· SF82CO05MRD: CAT 8 S/FTP 26AWG Copper RJ45 Patch Cord, LSZH, Red, 0.5m

· SF82CO1MRD: CAT 8 S/FTP 26AWG Copper RJ45 Patch Cord, LSZH, Red, 1m

· SF82CO2MRD: CAT 8 S/FTP 26AWG Copper RJ45 Patch Cord, LSZH, Red, 2m

· SF82CO3MRD: CAT 8 S/FTP 26AWG Copper RJ45 Patch Cord, LSZH, Red, 3m

· SF82CO5MRD: CAT 8 S/FTP 26AWG Copper RJ45 Patch Cord, LSZH, Red, 5m

· SF82CO8MRD: CAT 8 S/FTP 26AWG Copper RJ45 Patch Cord, LSZH, Red, 8m

· SF82CO10MRD: CAT 8 S/FTP 26AWG Copper RJ45 Patch Cord, LSZH, Red, 10m

· SF82CO15MRD: CAT 8 S/FTP 26AWG Copper RJ45 Patch Cord, LSZH, Red, 15m

· SF82CO20MRD: CAT 8 S/FTP 26AWG Copper RJ45 Patch Cord, LSZH, Red, 20m



3. CAT 8 S/FTP 28AWG Copper Conductor RJ45 Patch Cord

· Conductor: 7/0.127mm Copper

· Cable Outer Diameter (OD): 6.2 ± 0.2mm

· Max Length: Up to 5 meters

Product Codes & Descriptions:

· SF83CO05MRD: CAT 8 S/FTP 28AWG Copper RJ45 Patch Cord, LSZH, Red, 0.5m

· SF83CO1MRD: CAT 8 S/FTP 28AWG Copper RJ45 Patch Cord, LSZH, Red, 1m

· SF83CO2MRD: CAT 8 S/FTP 28AWG Copper RJ45 Patch Cord, LSZH, Red, 2m

· SF83CO3MRD: CAT 8 S/FTP 28AWG Copper RJ45 Patch Cord, LSZH, Red, 3m

· SF83CO5MRD: CAT 8 S/FTP 28AWG Copper RJ45 Patch Cord, LSZH, Red, 5m

■ OEM/ODM service for you ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team. • Customized Logo on Plug & Boot • Printing on Cable • Label/PE bag/Carton design • Different Color & Different Lengths Available • Different Molding/Strain Relief More type of Plug and boot ■ Packing
