CAT7 FTP fix tail clamp 8P8C FTC 130 RJ45 Connector

  • Cat7 FTP RJ45 connector
  • HELLOSIGNAL
  • 7024015
  • Connector
  • Normally 25 working days
  • NINGBO, SHANGHAI
  • T/T, L/C at sight, D/P at sight

Product Description


7024015  |  ZC-MP7-88SR130

Modular Plug , 8P/8C, CAT7, Round, Fix Tail Clamp
8-position, 1.30mm Insulation OD,crystal head,100/bag

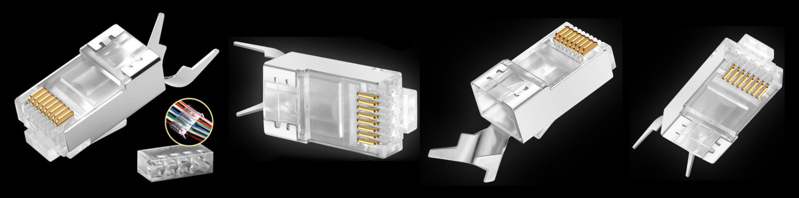

Physical photo


CAT7 FTP fix tail clamp 8P8C FTC 130 RJ45 Connector Physical photo

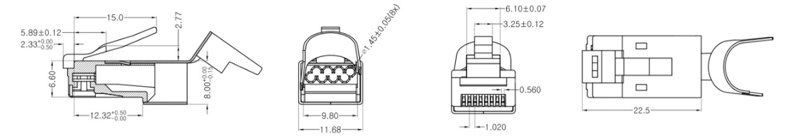

Dimensional Structure

CAT7 FTP fix tail clamp 8P8C FTC 130 RJ45 Connector Dimensional Structure


Electrical Specifications

ANSI/TIA Category

5

Current Rating,maximum

0.75 A

Insulation Resistance,minimum

500 mOhm

Safety Voltage Rating

150 Vac

Pass fluke test

Compliant


General Specifications

Cable Type

Round,shielded

Interface

RJ45

Application


Operating Temperature

-40 to +85

Relative Humidity

Up to 93%, non-condensing

Package Quantity

100

Packaging Type

Bag  |  Box  |  Carton

Positions/loaded Contacts

8P/8C


Mechanical Specifications

Conductor Gauge

Solid/Stranded  26-23 AWG

Contact Base Material

Phosphor bronze

Contact Plating Material

Gold

Contact Plating Thickness

50μ

Material Type

PC = Polycarbonate

Plug Insertion Life,minimum

750 times

Plug Shield Base Material

Copper Alloy

Plug Shield Plating Material

Nickel



Regulatory Compliance/Certifications

RoHS 2011/65/EU

Compliant


Order Informations

Label

Can be customized

Delivery time

Normally 15 working days

Brand

Hellosignal ®

OEM

Yes
