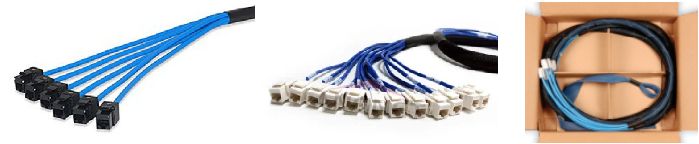

Cat 6 UTP Plug to Jack Trunk Cables

Ideal for Backbone and Cross-connect Cabling Systems

Description

ZION pre-terminated CAT6 UTP trunk cables provide a quick solution for links in the entire data center solution.
They are ideal for environments with frequent moves, adds, and changes, offering fast and efficient installation of
multiple point-to-point connections.

Application

Data Center Cabinets / Telecommunications Racks / Quick Network Deployment

Technical Specification

• Available in variable bundle sizes of 6, 8, or 12 cores depending on your inquiry.
• Level: Plenum, Riser, LSZH, Dca, Eca CPR rating.
• Custom lengths in 0.50-meter increments. Total trunk length shall not exceed ANSI/TIA standards.
• Unique identification number on the label at the end for each cable.
• Out Jacket: PVC/LSZH or braiding material.
• ISO/IEC 11801-1, EN 50173-1, TIA 568
• Data center cabling standards ISO/IEC 11801-5,ISO/IEC 22237-5, EN 50600-2-4, EN 50173-5, and TIA 942.
• Rated for 250MHz communications
• Designed for 1/10G Base-T Ethernet
• Pass the Fluke Channel Test

Specification (Datasheet)

Product Type

SKU

U62CV1MG-12PJ-BRB (Please check ZION'S trunk cable code)

Shielding Type

Unshielded (UTP)

Termination End

Plug to Jack

Cable Count

6/8/12

Storage temperature

-40℃ ~ +70℃

Operating temperature

-10℃ ~ +60℃

Single Patch Cable Datasheet

Conductor:

Stranded Oxygen-free copper

Conductor QTY(Pairs)

4 Twisted Pairs

Wire Gauge (AWG)

26AWG (7/0.16mm)

Insulation Material:

HDPE

OD of Insulation

0.82±0.05 mm

Insulation Color
Per
TIA/EIA 568-B

Orange, White/White-Orange

Blue, White/White-Blue

Green, White/White-Green

Brown, White/White-Brown

Cross

Crossweb

Sheath/Out Jacket:

LSZH OR PVC

OD of sheath

5.3 ± 0.3 mm

Thickness of sheath

0.55 ± 0.05 mm

Breakout Length

0.3 m

Color

Gray/Blue or customzied

Termination End A

Plug Type

UTP CAT6 RJ45

Plug Material

Polycarbonate

Boot

LSZH OR PVC

Front Connection

Phosphor Bronze with 50u inch Gold over Nickel Plating

Durability

750 Mating Cycles min.

Termination End B

Jack Type

CAT6 UTP  Keystone Jack

Jack Material

PC (Polycarbonate)

Jack Pins

Phosphor Bronze,TIN GOLD 3U"

RJ45 Contact Lift

Min. 750 Times

IDN Life

Min. 250 Times

Outer Jacket

Material

PVC/LSZH/Braiding

Electrical Chatracteristics (20℃）

The following are laboratory data at 20°C. Actual environments may vary slightly.

Data Rate Support

1/10G Base-T

Standard Bandwidth

250 MHz

Reference Bandwidth

550 MHz

Impedance (1-100MHz)

100 ± 15

Delay Skew (1-100MHz)

≤45 ns/100m

Max. DC Resistance

14.8 Ω/100m

Max. DC COND. RESI. Unbalance

0.05

Mechanical Chatracteristics

Before Aging Tesnsile Strength

≥13.5 Mpa

Before Aging Elongation

 ≥150 %

Aging Period

100℃×24h×7d   (℃×hrs)

After Aging Tensile Strength

≥12.5 Mpa

After Aging Elongation

≥125 %

Cold Bend

No Visible Cracks

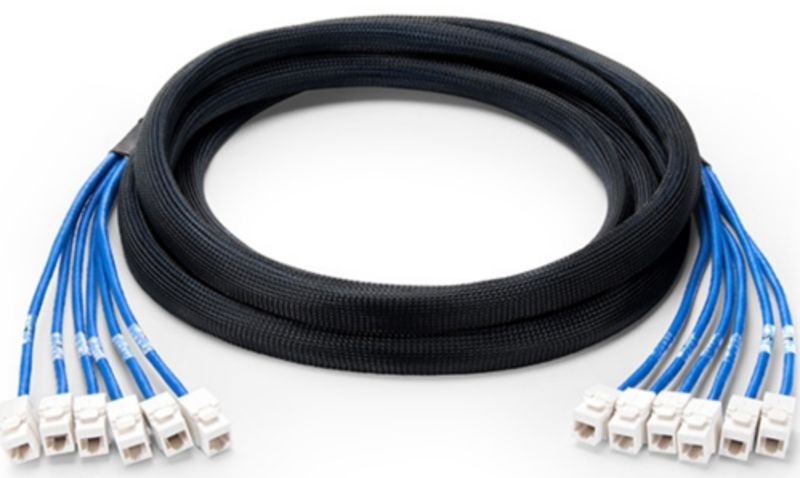

Schematic of the finished product

The actual number of cores will be 6,8,12; the color can also be customized according to customer requirements.

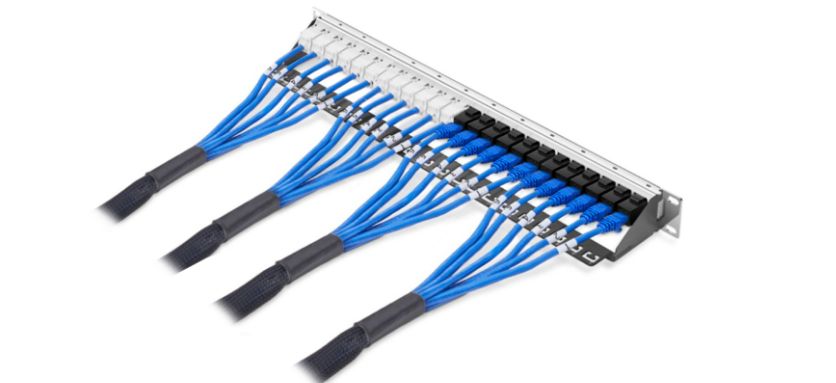

Trunk Cable Assemblies are compatible with ZION keystone patch panels

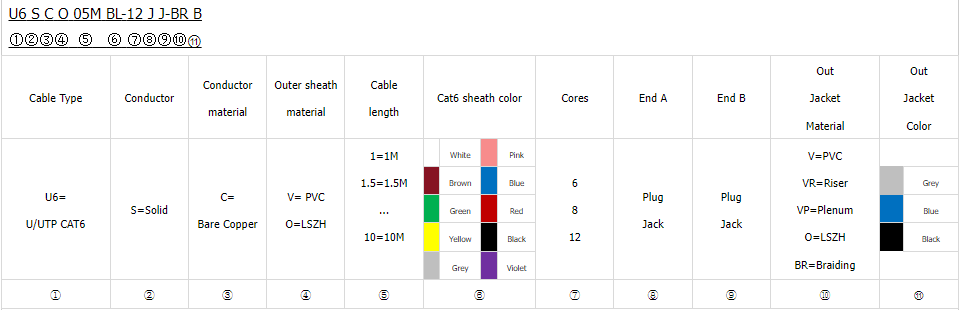

ZION'S Trunk Cable Code:

U6 2 C O 1M BL-12 P J-BR B
 ①②③④ ⑤  ⑥ ⑦⑧⑨⑩⑪

Cable Type

Number of
conductor wires

Conductor
material

Outer sheath
material

Cable
length

Cat6 sheath color

Cores

End A

End B

Out
Jacket
Material

Out
Jacket
Color

U6=
U/UTP CAT6

2=7/0.16

C=
Bare Copper

V= PVC
O=LSZH

1=1M
1.5=1.5M
...
10=10M


White

Pink

6
8
12

Plug
Jack

Plug
Jack

V=PVC
VR=Riser
VP=Plenum
O=LSZH
BR=Braiding

Brown

Blue

Grey

Green

Red

Blue

Yellow

Black

Black

Grey

Violet

①

②

③

④

⑤

⑥

⑦

⑧

⑨

⑩

⑪

ZION'S Trunk Cable Code:

Cat 6 UTP Plug to Jack Trunk Cables

Conductor: 7/0.16mm Copper;  Cable OD:5.3±0.3mm; Max Length based on 10Gbps: up to 30meter.

Zion Code

Description

U62CV1MG-12PJ-BRB

CAT6 UTP 26AWG Trunk Cable Gray PVC Sheath 1Meter 12 Cores Black Braiding Jacket

U62CV1.5MG-12PJ-BRB

CAT6 UTP 26AWG Trunk Cable Gray PVC Sheath 1.5Meter 12 Cores Black Braiding Jacket

U62CV2MG-12PJ-BRB

CAT6 UTP 26AWG Trunk Cable Gray PVC Sheath 2Meter 12 Cores Black Braiding Jacket

U62CV3MG-12PJ-BRB

CAT6 UTP 26AWG Trunk Cable Gray PVC Sheath 3Meter 12 Cores Black Braiding Jacket

U62CV5MG-12PJ-BRB

CAT6 UTP 26AWG Trunk Cable Gray PVC Sheath 5Meter 12 Cores Black Braiding Jacket

...

...

U62CV30MG-12PJ-BRB

CAT6 UTP 26AWG Trunk Cable Gray PVC Sheath 30Meter 12 Cores Black Braiding Jacket
