Direct Answer: When This UTP Channel Fits
This configuration is intended for office floors, schools, hotels, healthcare administration areas and other commercial environments where 10GBASE-T readiness is required without a shielded bonding system. The permanent cable is Cat6A U/UTP with solid conductors, while the panel, work-area outlets and patch cords remain unshielded.
The design follows the normal structured-cabling separation between fixed horizontal cable and replaceable equipment cords. A conventional channel can include up to 90 m of permanent-link cabling plus the permitted patch-cord allowance within the project’s 100 m channel design. Actual cord allowance must be checked against conductor gauge, installation layout and the selected test standard.
ZION 711230223 AWG Cat6A U/UTP horizontal cable
ZCMKJ180U6A-B1180-degree mini-body Cat6A UTP jack
ZCPPU6A-1U24-KJ-B11U 24-port modular UTP patch panel
7241010500 MHz Cat6A U/UTP patch cord Selected Bill of Materials

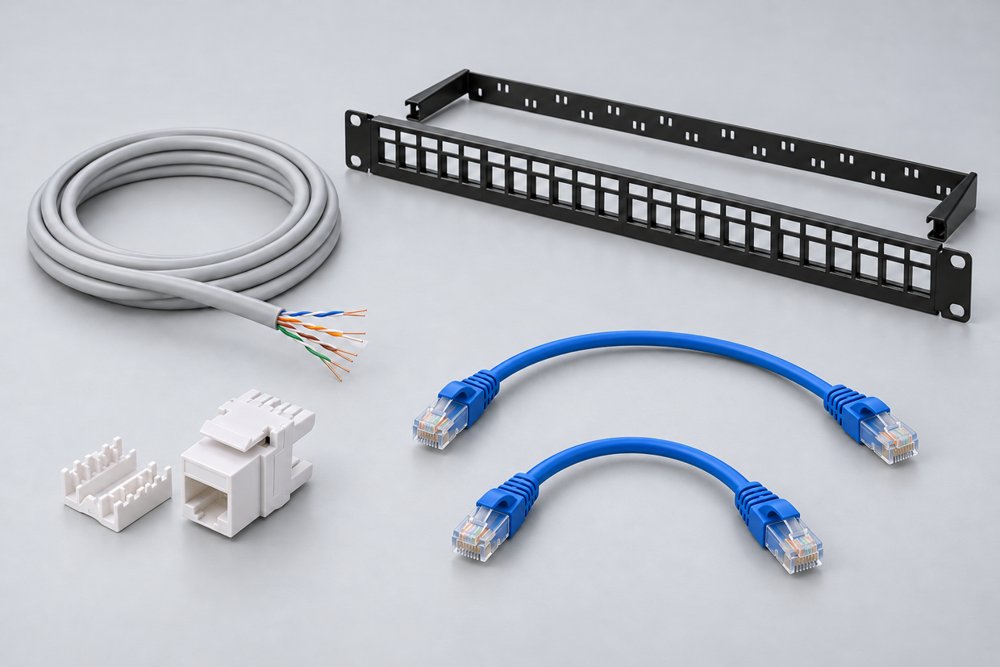

The following models form a controlled starting BOM. Jacket rating, patch-cord gauge and outlet hardware remain project options, but the category and shielding type stay consistent.
| Component | Selected model | Published specification | Role in the link |
|---|---|---|---|
| Horizontal cable | ZION 7112302 | Cat6A U/UTP, 4 pairs, 23 AWG solid bare copper, conductor 0.565 ± 0.005 mm, PVC, performance data through 500 MHz | Permanent horizontal run |
| Keystone jack | ZCMKJ180U6A-B1 | Cat6A UTP 180-degree mini-body IDC jack; accepts 22–24 AWG solid wire; 750 RJ45 mating cycles minimum; 250 IDC termination cycles minimum | Rack and work-area termination |

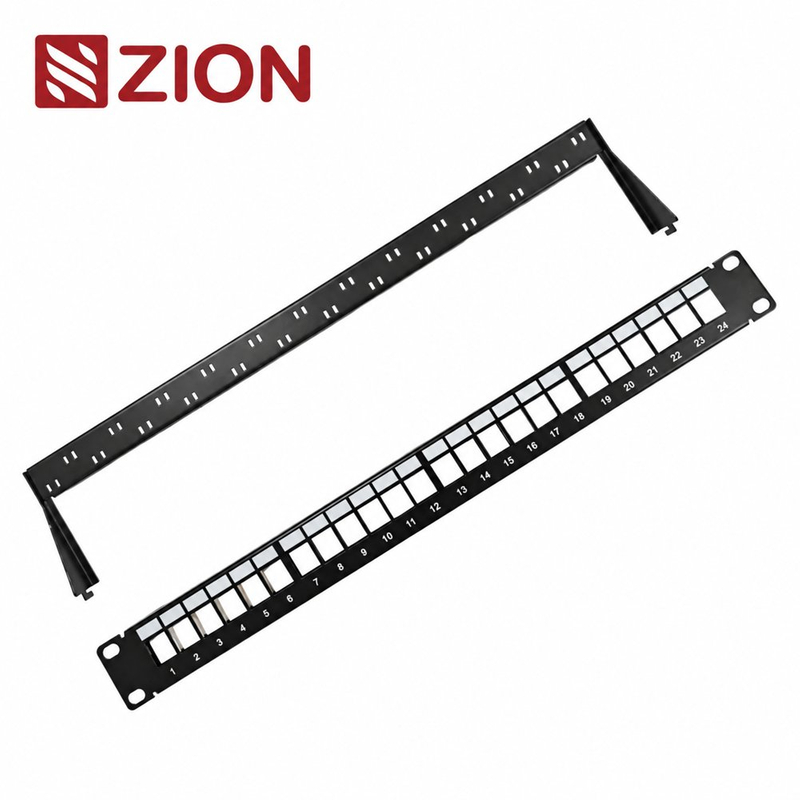

| Patch panel | ZCPPU6A-1U24-KJ-B1 | 19-inch, 1U, 24-port modular UTP panel; removable keystone format; rear cable management | Rack-side organization |
| Patch cord | 7241010 | Cat6A U/UTP, 500 MHz; 24, 26 and 28 AWG copper options; PVC or LSZH; RJ45 contacts with 50 µin gold over nickel | Switch and work-area connection |
Component Specifications That Affect Compatibility
The cable and IDC connection are the first compatibility check. Model 7112302 uses 23 AWG solid bare copper conductors at 0.565 ± 0.005 mm. The published cable data includes 67% nominal velocity of propagation, delay skew of ≤45 ns/100 m, capacitance unbalance of 330 pF/100 m and an installation bend-radius reference of eight times the jacket diameter.

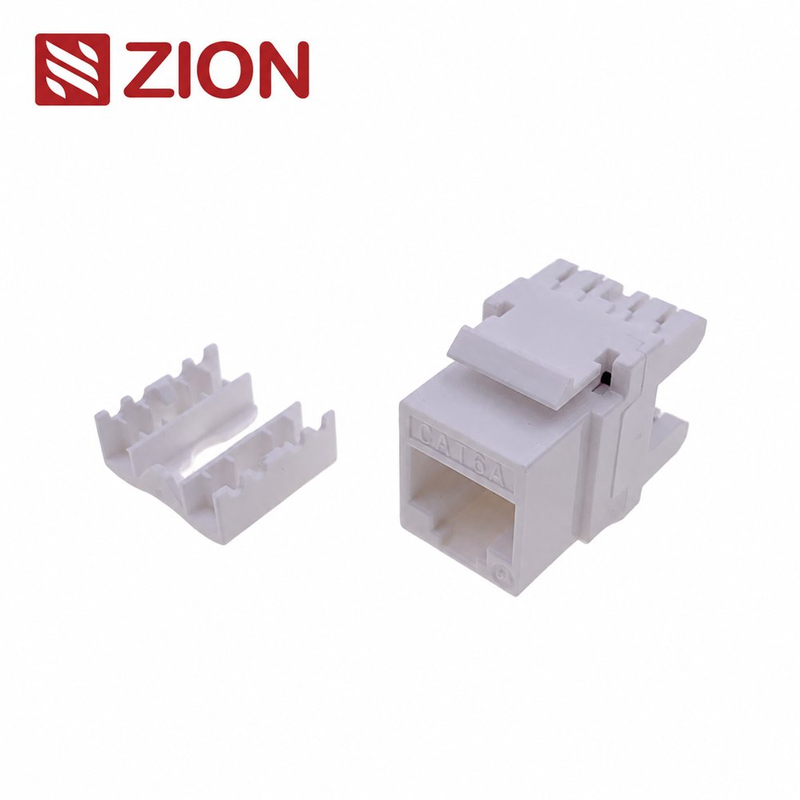

The ZCMKJ180U6A-B1 is a Cat6A UTP 180-degree mini-body IDC jack intended for modular permanent-link termination. It accepts 22–24 AWG solid wire, which includes the 23 AWG solid conductor used by cable 7112302. Published mechanical values include at least 750 RJ45 mating cycles and 250 IDC termination cycles. Electrical values include 20 mΩ contact resistance, insulation resistance of ≤500 MΩ at 100 V DC and a withstand-voltage rating of DC 1000 V / AC 700 V RMS for one minute. The operating range is -10°C to +60°C, with storage from -40°C to +70°C.
| Patch-cord option | Conductor | Published cable OD | Recommended role |
|---|---|---|---|
| 24 AWG | 7/0.20 mm stranded copper | 6.0 ± 0.2 mm | General rack and work-area patching |
| 26 AWG | 7/0.16 mm stranded copper | 5.4 ± 0.2 mm | Balanced density and handling |
| 28 AWG | 7/0.127 mm stranded copper | 5.0 ± 0.2 mm | Short high-density rack connections |
How the Standard Channel Is Assembled
At the telecommunications room, each horizontal cable terminates on a ZCMKJ180U6A-B1 mounted in the ZCPPU6A-1U24-KJ-B1 panel. The same jack model can be used at the work-area outlet, simplifying the spare-parts list and keeping the permanent-link interface consistent. Its mini-body format is useful where rear space and port density must be managed carefully. Factory-terminated 7241010 patch cords then connect the panel to the switch and the outlet to the terminal equipment.
A modular panel is useful when individual ports must be replaced, installation is phased, or a distributor wants one Cat6A jack platform for both racks and outlets. Port labels, rear strain relief and cable routing remain part of the channel installation even though they do not change the category printed on the components.
The two equipment cords and the permanent link form the complete Cat6A channel; installed length and the final BOM remain subject to project acceptance testing.
Deployment and Acceptance Checks
Maintain the specified bend radius, avoid compression and control bundle size, especially where PoE loading raises cable temperature.
Use one T568A or T568B scheme consistently, preserve pair twist close to the IDC and provide rear strain relief.
Record permanent-link length and installed cord lengths instead of assuming every project uses the maximum allowance.
Test the installed link to the project-defined Cat6A permanent-link or channel limit with the final BOM recorded in the report.
The related ZION guide on 90 m permanent links and 100 m channels explains why patch-cord allowance must be included in the complete length calculation.
Frequently Asked Questions
Can the same Cat6A UTP jack be used in the patch panel and work-area outlet?
Yes. A modular panel can use the same compatible keystone platform at the rack and outlet, which simplifies spares and field replacement.
Does a Cat6A cable alone make the complete link Cat6A?
No. The panel ports, jacks, patch cords, termination quality and installed length all affect the complete link. Acceptance is based on the finished permanent-link or channel test.
Which patch-cord gauge is the default choice?
Use 24 AWG when robustness and PoE margin are the priority. Use 26 or 28 AWG only after checking density, bundle temperature, cord length and project requirements.
Prepare a Cat6A UTP Project BOM
Send the required port count, cable jacket rating, link length, patch-cord gauge, PoE load and acceptance-test requirement so the component set can be checked before quotation.
