Cooling

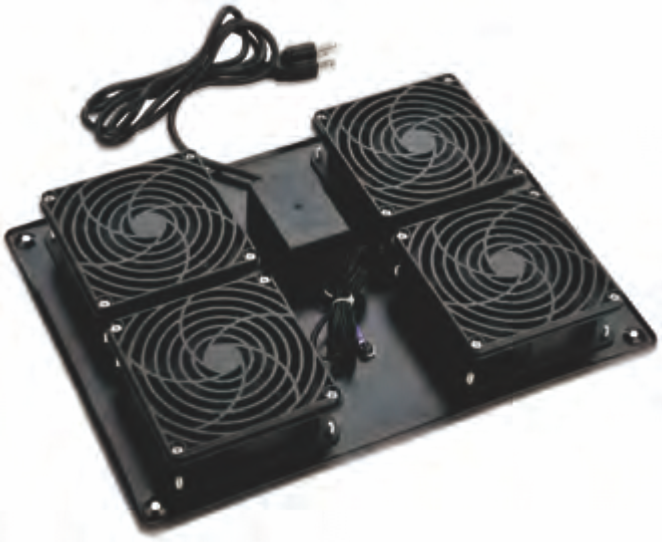

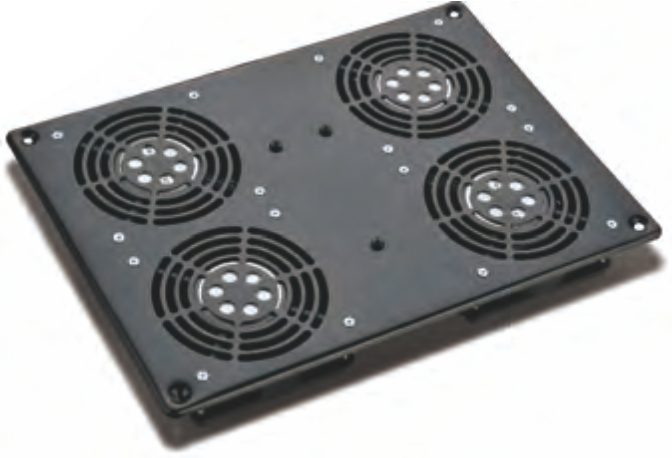

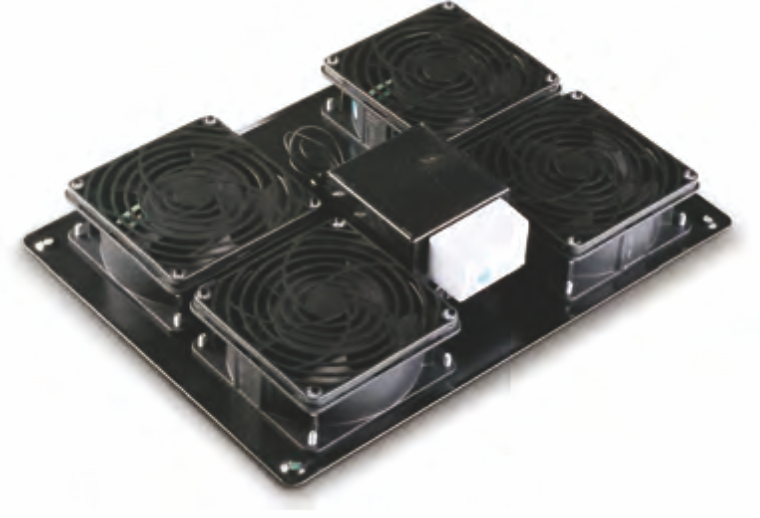

2/4 Fan Units

· Only for cabinet, enable ventilation and reliable operation.
  Easy-to-disassemble enable convenient operation.
· Full series of optional switch, can control fans singly.

Parameter

Fan size:

Cable length:

120 × 120 × 38

1.9M

Input frequency:

Period:

100~231V/50Hz

-10°C~+50°C

Material:

Cable length:

SPCC cold rolled steel

70 ■■■■0■■ : RAL7035
70 ■■■■1■■ : RAL9004

Main Part

Model No.

Description

Input connector type

ZC70040211

2 fans

UK type(BS1363)

ZC70040212

2 fans

German type(DIN49441)

ZC70040213

2 fans

US type(NEMA 5-15P)

ZC70040411

4 fans

UK type(BS1363)

ZC70040412

4 fans

German type(DIN49441)

ZC70040413

4 fans

US type(NEMA 5-15P)

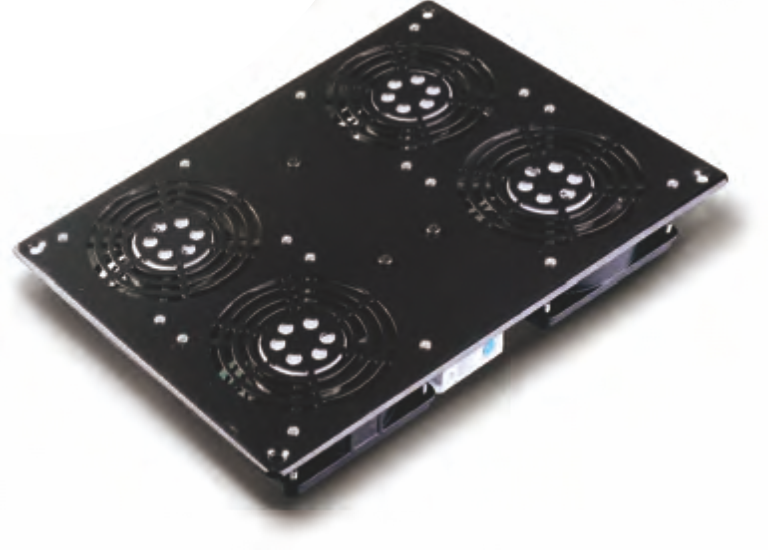

2/4 Fan Units With Thermostat

· Only for cabinet, enable ventilation and reliable operation.
· Easy-to-disassemble enable convenient operation.
· Small size
· High switching performance

Parameter

Fan size:

Cable length:

     120 × 120 × 38

1.9M

Input frequency:

Large setting range:

100~231V/50Hz

0°C~+60°C

Material:

Cable length:

SPCC cold rolled steel

70 ■■■■0■■ : RAL7035
70 ■■■■1■■ : RAL9004

Main Part

Model No.

Description

Input connector type

ZC70040211T

2 fans

UK type(BS1363)

ZC70040212T

2 fans

German type(DIN49441)

ZC70040213T

2 fans

US type(NEMA 5-15P)

ZC70040411T

4 fans

UK type(BS1363)

ZC70040412T

4 fans

German type(DIN49441)

ZC70040413T

4 fans

US type(NEMA 5-15P)

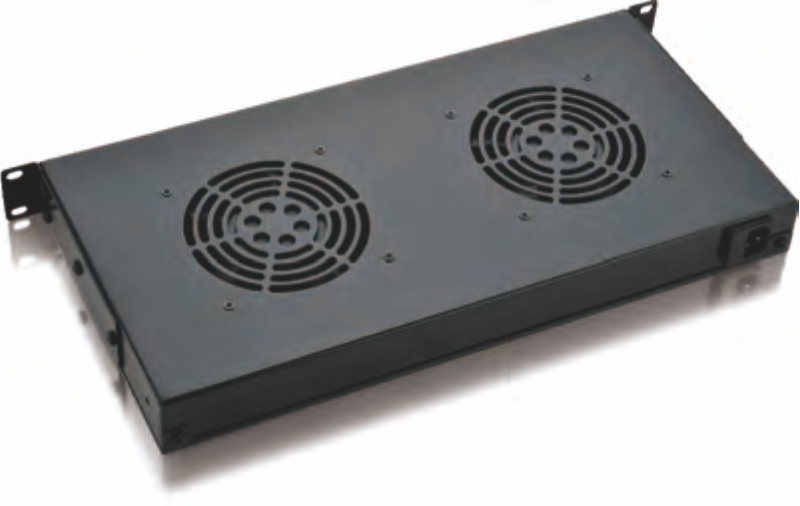

1U Fan Units

· 19”standard installation, 1U Switch control fans work.

Parameter

Fan size:

Cable length:

     120 × 120 × 38

1.9M

Input frequency:

Large setting range:

100~231V/50Hz

-10°C~+50°C

Material:

Cable length:

SPCC cold rolled steel

70 ■■■■0■■ : RAL7035
70 ■■■■1■■ : RAL9004

Main Part

Model No.

Description

Input connector type

ZC70040221

2 fans

UK type(BS1363)

ZC70040222

2 fans

German type(DIN49441)

ZC70040223

2 fans

US type(NEMA 5-15P)

ZC70040321

3 fans

UK type(BS1363)

ZC70040322

3 fans

German type(DIN49441)

ZC70040323

3 fans

US type(NEMA 5-15P)

ZC70040421

4 fans

UK type(BS1363)

ZC70040422

4 fans

German type(DIN49441)

ZC70040423

4 fans

US type(NEMA 5-15P)

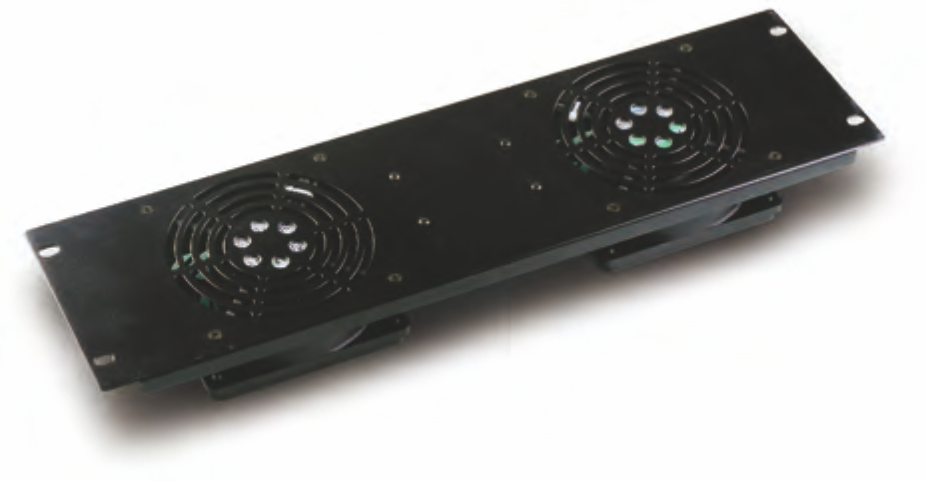

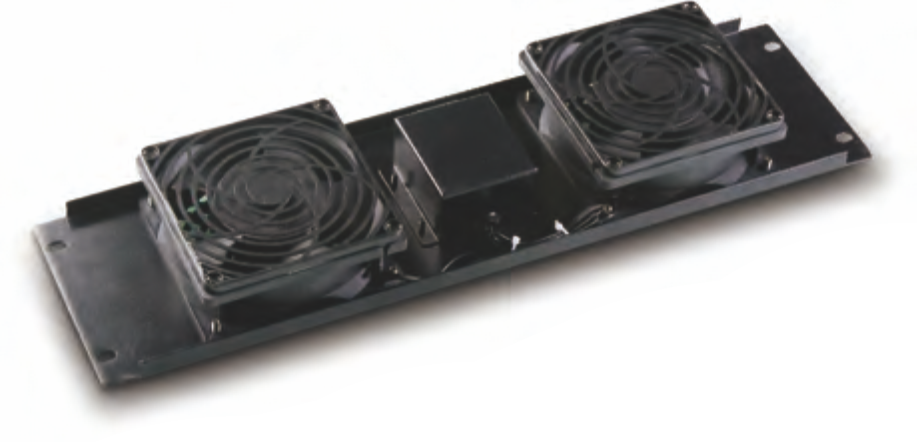

3U Fan Units

· 19”standard installation,  3U

Parameter

Fan size:

Cable length:

     120 × 120 × 38

1.9M

Input frequency:

Large setting range:

100~231V/50Hz

-10°C~+50°C

Material:

Cable length:

SPCC cold rolled steel

70 ■■■■0■■ : RAL7035
70 ■■■■1■■ : RAL9004

Main Part

Model No.

Description

Input connector type

ZC70040231

2 fans

UK type(BS1363)

ZC70040232

2 fans

German type(DIN49441)

ZC70040233

2 fans

US type(NEMA 5-15P)

ZC70040331

3 fans

UK type(BS1363)

ZC70040332

3 fans

German type(DIN49441)

ZC70040333

3 fans

US type(NEMA 5-15P)
