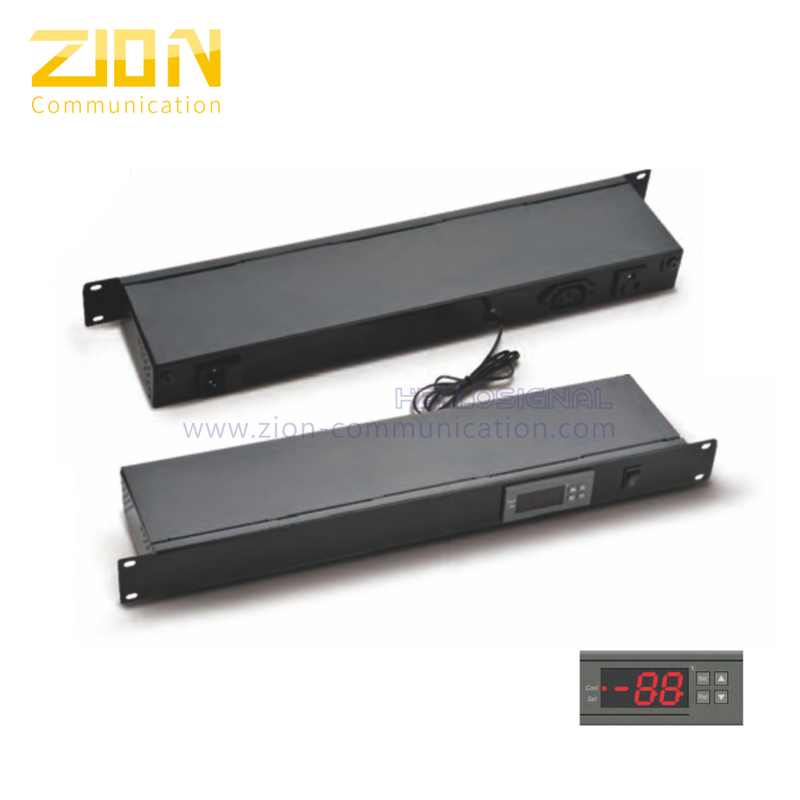

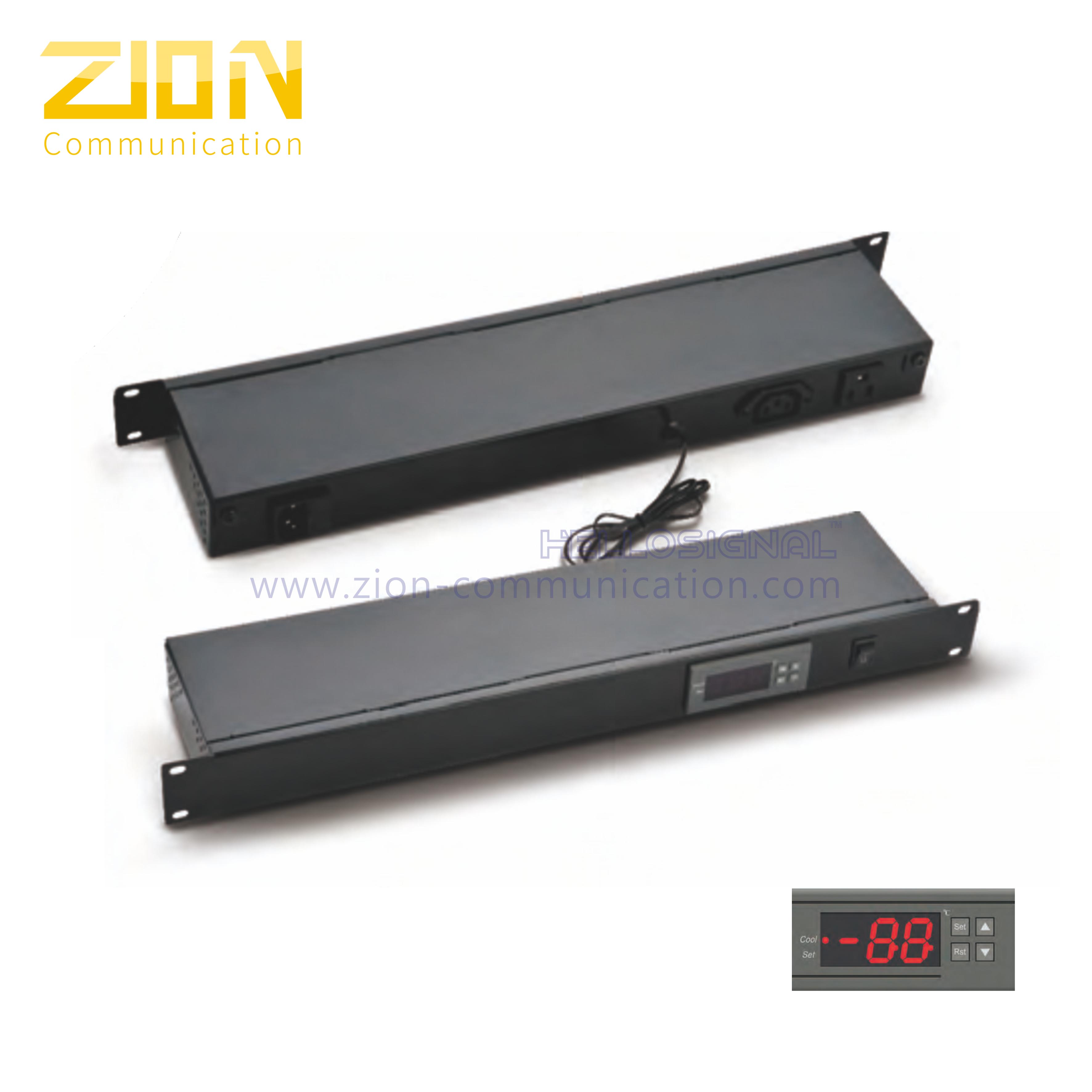

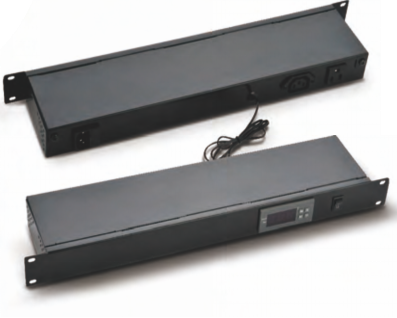

TC Digital Temperature Unit

Technical Data

· 19"installation

· Simple structure, easy installation;

· Easy cabling & operation;

· Disturbing resistance、reliable running ;

· 2-way output (IEC320 C13 and NEMA 5-15R).

Main Part

Model No.

Input Connector Type

ZC70180101

UK type(BS1363)

ZC70180102

German type(DIN49441)

ZC70180103

US type(NEMA 5-15P)

Technical Parameters

· Power supply:  220VAC+ 10%/-15% , 50/60Hz.

· Temperature measuring range:  -50℃ ~99℃.

· Resoluton:   1℃.

· Refrigeration output contact capacity:   10A/277VAC.

· Senssor error delay time:  1min. .

· Safe level:   1P65.

· Operation humidity:   20~85%(no condensate).

· Power consumption:   ≤3W.

· Temperature controling range:   -40℃ ~50℃.

· Accuracy:   -50℃ ~70℃, ±1℃, ±1 ℃ at others can drive single phase compressor≤1/2HP.

· Sensor:   NTC.

· Operation temperature:   -30℃~75℃.

   Detalis：

  Key operation

· Check parameter set value:

  Press ▲ and then loosen to display the set upper limit;  Press and then loosen▼to display the.

 Modify parameter set value

· Press set for more than 3s to cnter into parameter modifying status the last,display the last adjusted

  menu after electrified with parameter modifying indicator light on.

· Press ▲ or▼to go forward or backward the menu item; press set to display the current.

  Parameter set value

· Press set and ■ or ■ simultaneously can adjust the  current parameter set value;press set and ■

  simultaneously more than 1s will increase current parameter set value quickly; press set and ■

   simultaneously more than 1s will decrease current parameter set value puickly;

· Press rst or no key operation in 30s will save the  modified parameter and retutn to normal

  temperature display status.

  Restore the parameter setting

· When electrify the controller,first check the

  parameter setting,if parameter setting is

  wrong, LED display E1 with buzzer sound,at

  this time press Set will restore default

  parameter setting.

· Advise to reset the parameter.

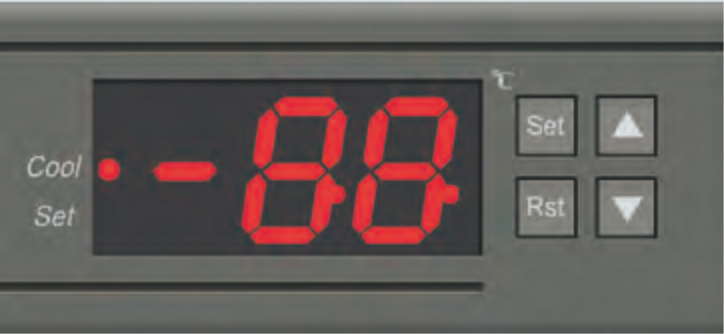

 Front panel

Key-press function

Key-press

Normal mode

Parmeter modification mode

SET

Check compressor protection time

Display current menu set value

SET...3 seconds

Enter into parameter modification

Rst

Check temperature exceeding value

Quit from parameter modification

▲

Temperature upper limits checking

Menu items go backwards

▼

Temperature lower limits checking

Menu items go forwards

SET+▲

Parameter values increase by degrees

SET+▼

Parameter values decrease by degrees

Control output

· Compressor: When the storage temp.Is higher than set  temp.Upper limit,compressor starts,

  lower than set temp. Lower limit,compressor stops, When sensor errir,  compressor works

  proportionably as on -15 minutes off -30 minutes. After electrified or compressor stops .

  Compressor restart-up is allowed after running out of compressor protection time.

· Alarm: While temp.exceeding valus is not 0.LED blinkingly displays current temperature

  when storage temperature is higher than set temperature upper limip +exceeding temp

  value or lower than set lower limit-exceeding temp. value. When rumming out of the

  exceeding temp.limit alarm delay after electrified. exceeding temp.limit alarm starts

  with buzzer sound,and alarm cancel when temperature return to normal temperature

  LED blinkingly  Display E1 with buzzer sound when memorizer error; display E2 with

  buzzer sound when sensor error, Display HH when temp. Higher than 99°C and lower

  than 120'C. Press any key to cancel alarm sound, but alarm status remains.

Lndicator light description

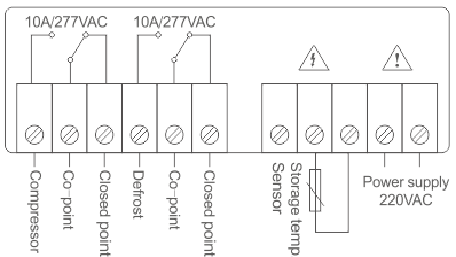

     Wire diagram

Indicator
light

Staus

Funcation

Cool

Always on

Compressor cutput

Cool

Flashes

Compressor cutput delay

Set

Always on

Parmeter modification status

Key-press function

Item

Funtion

Fetting range

Unit

Default

F1

Upper limit

F2~+5

°C

-10

F2

Lower limit

-40~F1

°C

-20

F3

Temperature calibration

-5~5

°C

0

F4

Compressor protection time

0~9

Min

3

F5

Exceeding temperatuer value

0~50, set value as 0 to cancel alam

°C

15

F6

Exceeding temperature alarm delay time

F2~+5

°C

20

Safety regulations

· Danger: Strictly distinguish the sensor down-lead,power wire and output relay interface

  from one another,prohibit wrong connections or overloading the relay. All connections

  should be modified under electricity cut-off.

· Warning: Prohibit to use the machine in water or under the environment of ower damp,

  high temperature,string electromagnetism interference ir string corrosion.

· Caution: The power supply should conform to one labeled on the machine,and ensure

  the stability of the power voltage.  Sensor down-lead and power should be kept for a

  proper distance to avoid possible interferences.

Error Code

Code

Reason

Status

E1

Memorizer error

Alarm,machine dose not work

E2

Sensor error

Alarm.Comressor starts/
stop proportionably

HH

Exceeding temp,
display limit
