PANEL / BRACKETS | |||||||||

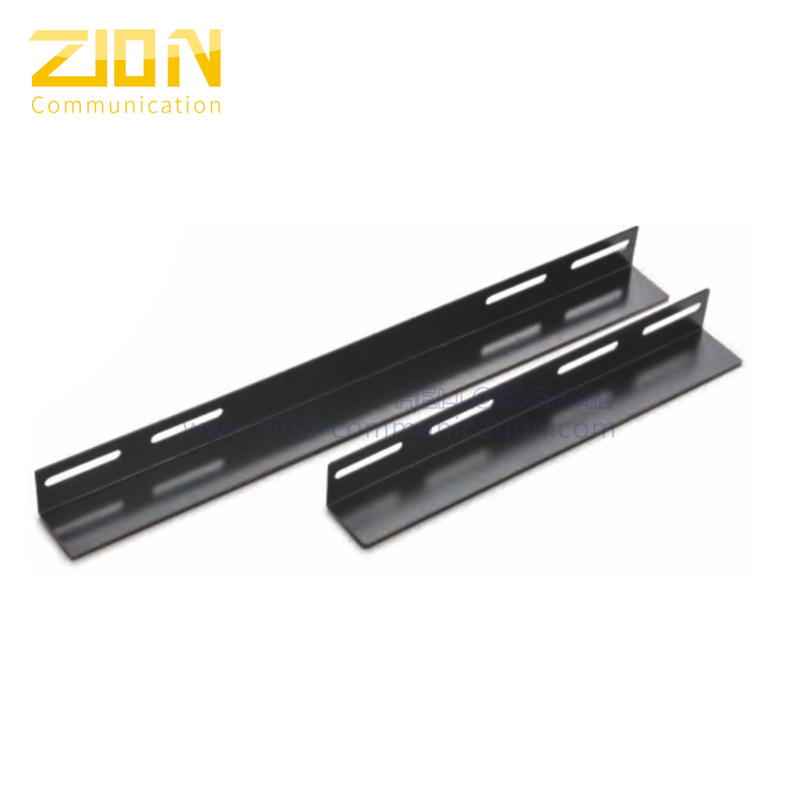

L Brackets | |||||||||
· Only for 19”cabinet and wall box, install from side. | |||||||||
Parameter |
| ||||||||
Static load capacity: | |||||||||
15Kg [33Lb] | |||||||||
Material: | Color: | ||||||||
SPCC cold rolled steel | 70 ■■■■0■■ : RAL7035 | ||||||||
Main Part | |||||||||
Model No. | Description | Length | Use | ||||||
ZCPB70134500 | 45 type | 300 | 450MM wall box | ||||||
ZCPB70136601 | 66 type | 450 | 600MM wall box | ||||||
ZCPB70136000 | 60 type | 320 | 600MM cabinet | ||||||
ZCPB70138000 | 80 type | 520 | 800MM cabinet | ||||||
ZCPB70139000 | 90 type | 620 | 900MM cabinet | ||||||
ZCPB70131000 | 10 type | 720 | 1000MM cabinet | ||||||

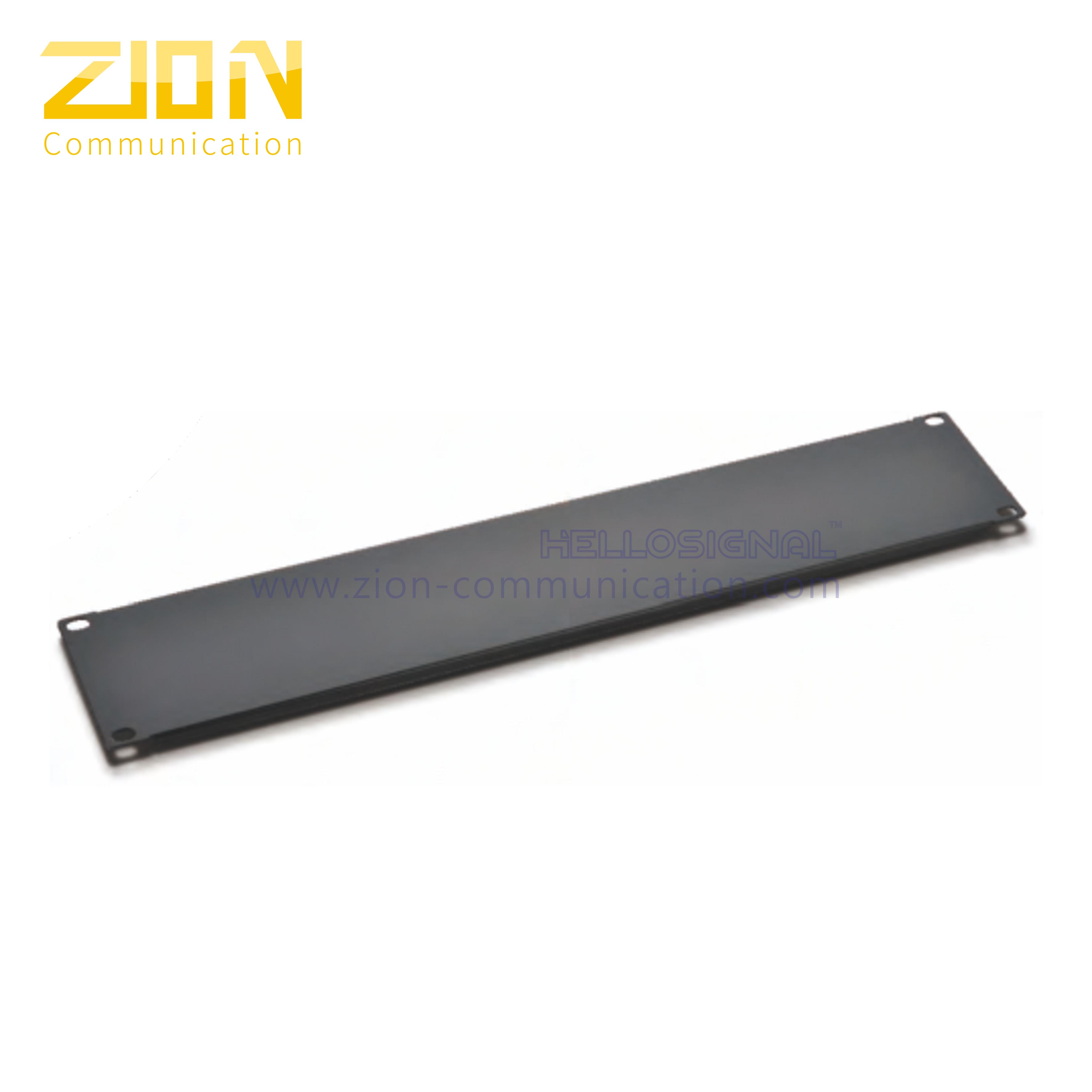

Blanking Panel | |||||||||
· Compatible with 19 inch network cabinet, cover the blank position. | |||||||||
Parameter |
| ||||||||
Material: | Color: | ||||||||
SPCC cold rolled steel | 70 ■■■■0■■ : RAL7035 | ||||||||
Main Part | |||||||||
Model No. | Description | Shelf size MM | |||||||
Width | Depth | ||||||||
ZCPB70060100 | 1U | 482 | 44 | ||||||
ZCPB70060200 | 2U | 482 | 88 | ||||||
ZCPB70060300 | 3U | 482 | 132.5 | ||||||
ZCPB70060400 | 4U | 482 | 177 | ||||||
PANEL / BRACKETS | |||||||||

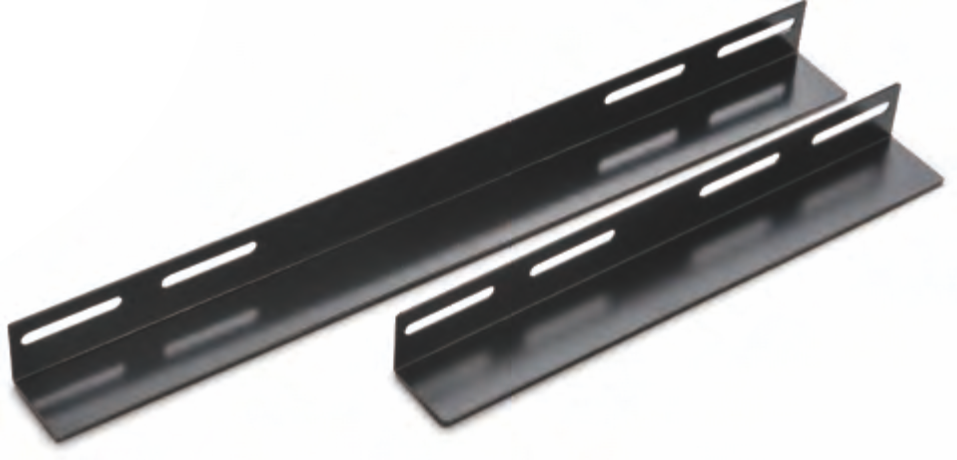

L Brackets | |||||||||
· Only for 19”cabinet and wall box, install from side. | |||||||||
Parameter |
| ||||||||
Static load capacity: | |||||||||
15Kg [33Lb] | |||||||||
Material: | Color: | ||||||||
SPCC cold rolled steel | 70 ■■■■0■■ : RAL7035 | ||||||||
Main Part | |||||||||
Model No. | Description | Length | Use | ||||||
ZCPB70134500 | 45 type | 300 | 450MM wall box | ||||||
ZCPB70136601 | 66 type | 450 | 600MM wall box | ||||||
ZCPB70136000 | 60 type | 320 | 600MM cabinet | ||||||
ZCPB70138000 | 80 type | 520 | 800MM cabinet | ||||||
ZCPB70139000 | 90 type | 620 | 900MM cabinet | ||||||
ZCPB70131000 | 10 type | 720 | 1000MM cabinet | ||||||

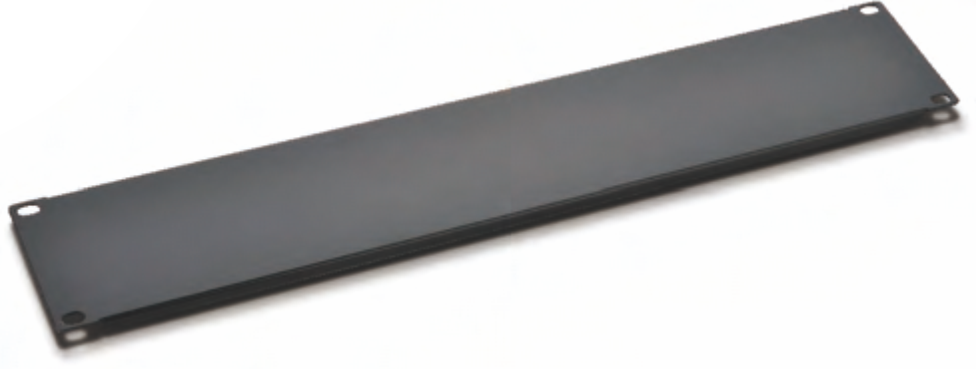

Blanking Panel | |||||||||
· Compatible with 19 inch network cabinet, cover the blank position. | |||||||||
Parameter |
| ||||||||
Material: | Color: | ||||||||
SPCC cold rolled steel | 70 ■■■■0■■ : RAL7035 | ||||||||
Main Part | |||||||||
Model No. | Description | Shelf size MM | |||||||
Width | Depth | ||||||||
ZCPB70060100 | 1U | 482 | 44 | ||||||
ZCPB70060200 | 2U | 482 | 88 | ||||||
ZCPB70060300 | 3U | 482 | 132.5 | ||||||
ZCPB70060400 | 4U | 482 | 177 | ||||||
