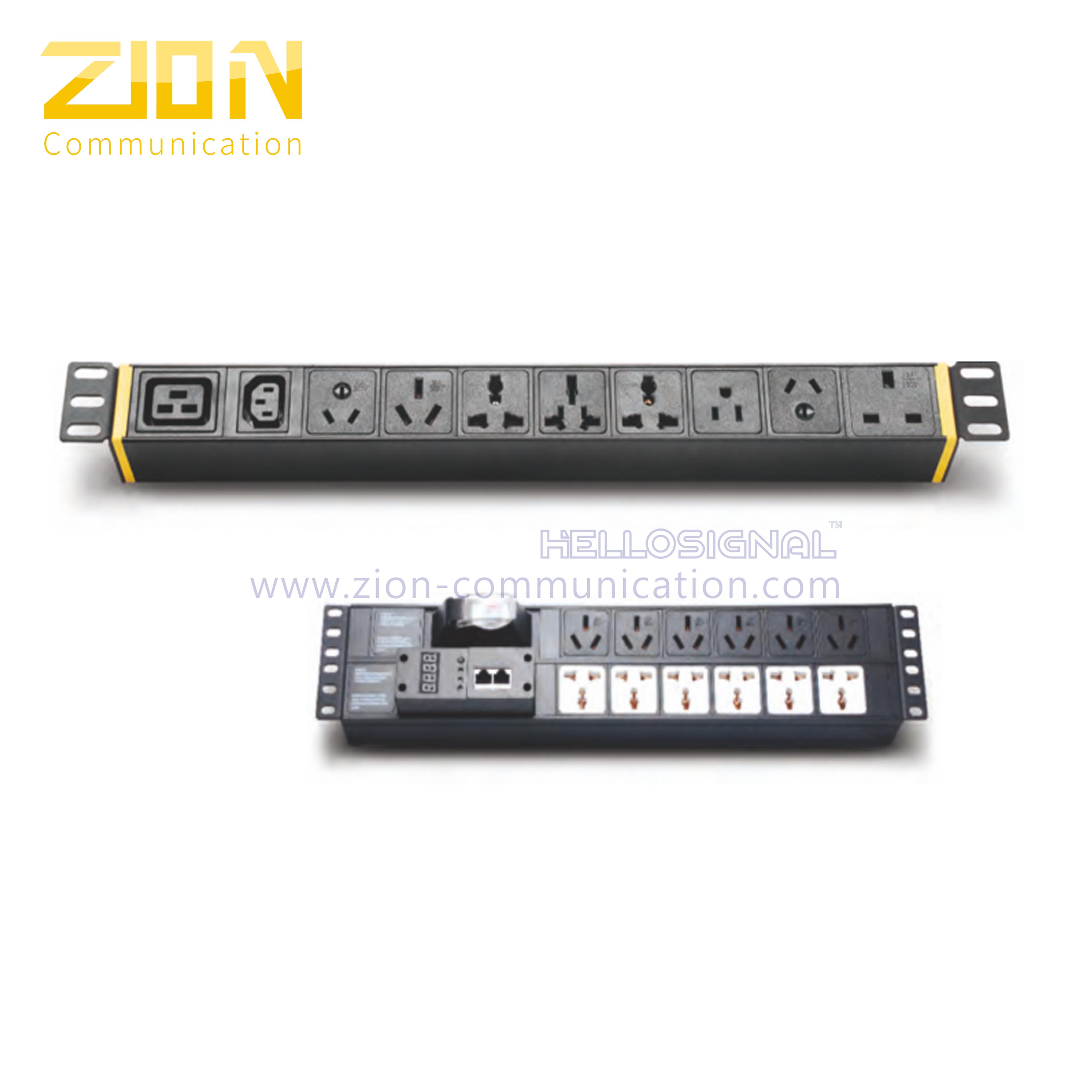

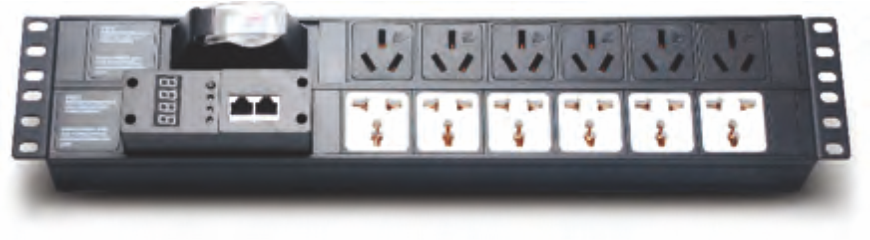

PDU

  Input Connector Type

Plug Style

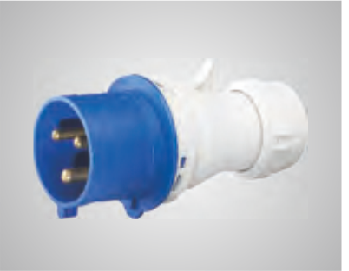

IEC60329

Plug Style

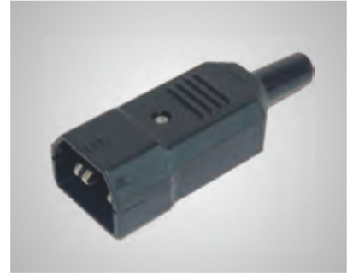

IEC320  C14(C20)

Parameter

16/32A  250VAC

Parameter

10(16A)  250VAC

Plug Style

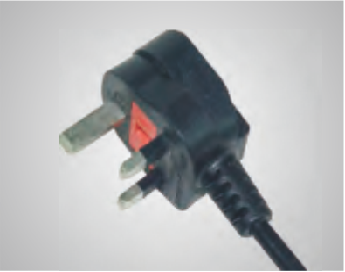

BS1363

Plug Style

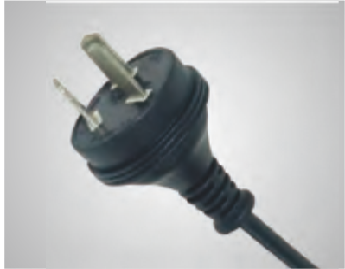

AS/NZS  3112

Parameter

13A  250VAC

Parameter

10(16A)  250VAC

Plug Style

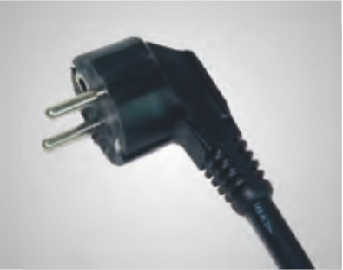

DIN49441

Plug Style

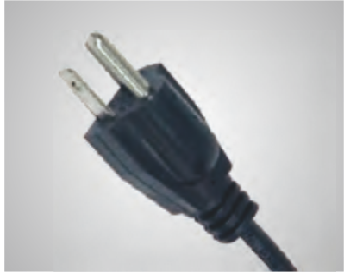

NAME 5-15P

Parameter

16A  250VAC

Parameter

15A  125VAC

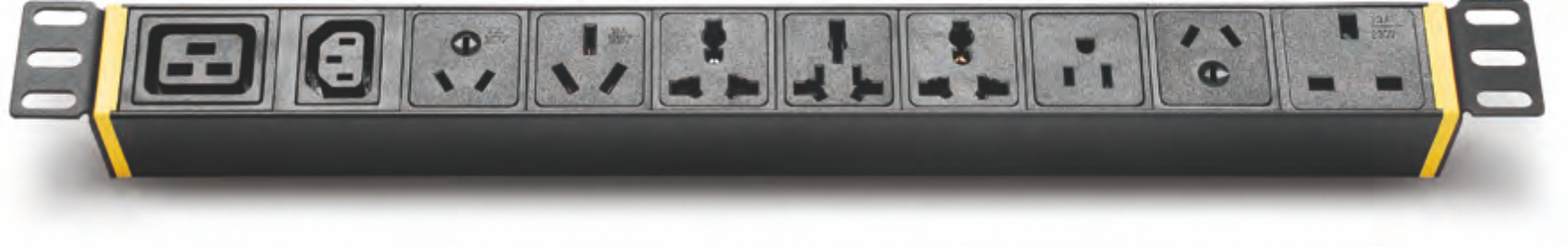

  Output Unit Type

Style

AS/NZS  3112

Style

DIN49440

Parameter

10(15A)  250VAC

Parameter

16A  250VAC

Style

IEC320  C13(C19)

Style

IEC302  C19

Parameter

10(16A)  250VAC

Parameter

13A  250VAC

Style

BS1363(45")

Style

NAME 5-15R

Parameter

13A  250VAC

Parameter

15A  150VAC

  Input Connector Type

Name

Master switch

Name

 Master overload
 Protector & power
 indicator

Parameter

  Mini circuit
  breaker(1~60A)

Code

LY-A

Name

Protective device

Code

LY-B

Name

Protective device

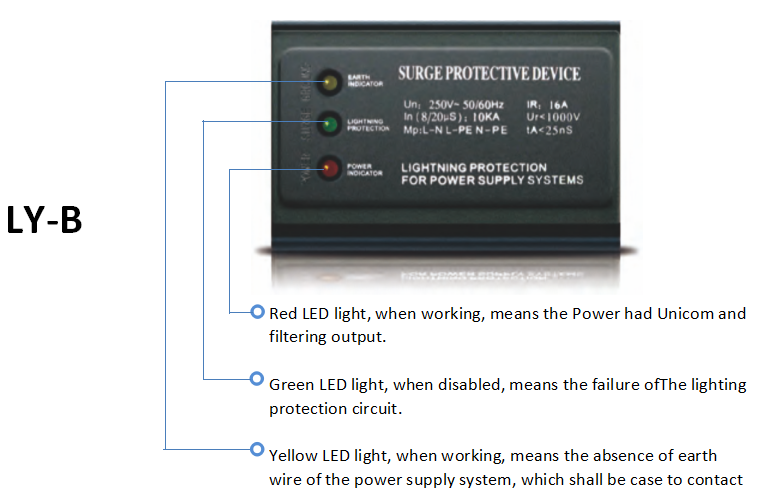

  Surge Protective device

TUL-LY-A/B

Parameter

Rated voltage

250VAC 50/60Hz

Rated load current IR

16A

Max. power PMAX

4000W

Max. Continuous operating voltage UC

320VAC

Measured limiting voltage Ur

<1000V

Nominal discharge current(8/20 μs)In

10KA

Voltage protection level Up

<1000V

Response time TA

<25nS

Protection mode

L-N L-PE N-PE

Earth indicator

Yellow  LED

Lightning protection

Green   LED

Power indicator

Red        LED

Alternative filtration

Highly efficient

Insulation resistance RIS

>100M Ω

Fire resistance

Up to UL 94V-0

Environment temperature

-40~ +70°C

Relative humidity

<=95%
